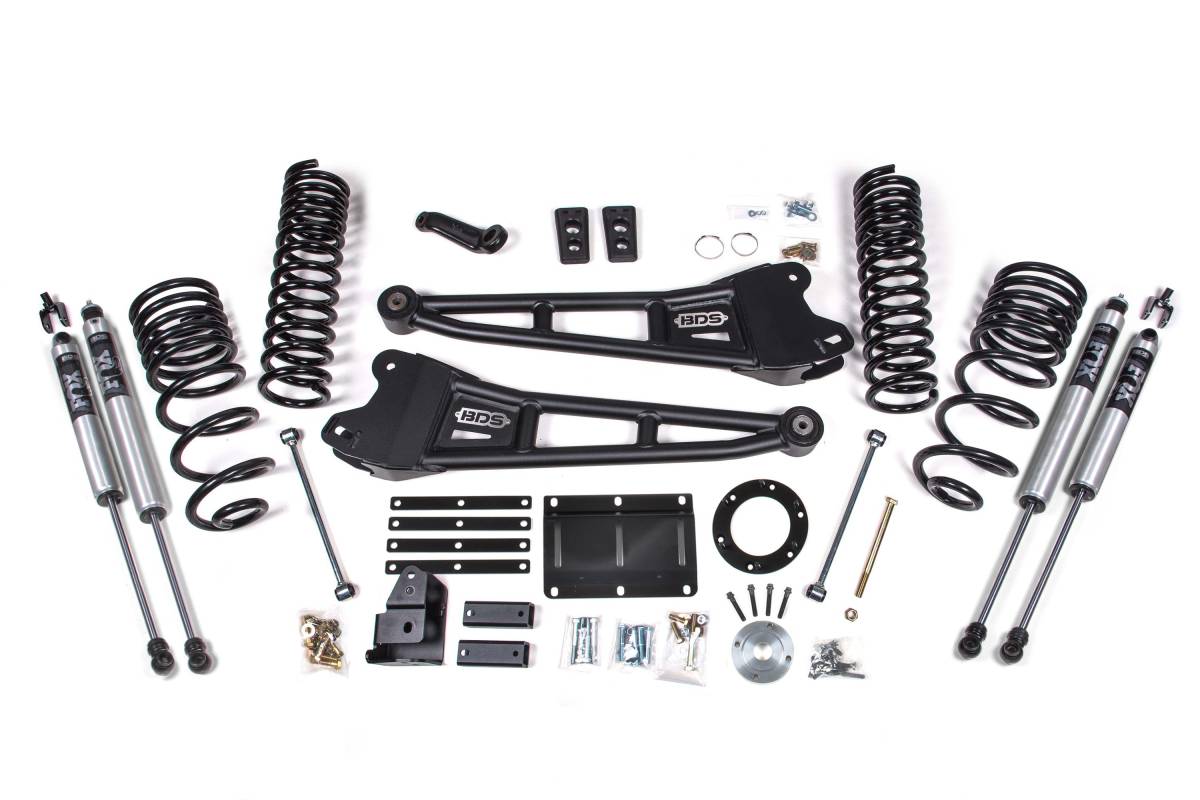

BDS 6 Inch Lift Kit w/ Radius Arm | Ram 2500 (2014-2018) 4WD Diesel | FOX 2.0 Performance Series Shocks

This kit is configured with FOX 2.0 Performance Series shocks, delivering nitrogen-charged IFP damping performance for front and rear suspension.

Overview

This 6-inch lift kit with radius arm from BDS Suspension is designed for 2014–2018 RAM 2500 diesel-powered trucks. The kit is engineered to improve stance, performance, and capability, and includes everything needed to achieve up to 37-inch tire clearance. Up front, the kit features diesel-specific Pro-Ride coil springs, heavy-duty tubular replacement radius arms, a forged drop pitman arm, a track bar bracket for steering correction, bump stops, brake line brackets, and precision-tuned nitrogen-charged shocks. A transfer case indexing ring and new transmission crossmember are included to allow use of the factory front driveshaft at this lift height. In the rear, the kit uses progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links, and a matching set of shocks.

Features

• Heavy-duty tubular radius arms improve strength, handling, and caster control
• High-strength progressive rate coil springs for improved ride on any terrain
• Track bar relocation brackets to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and transfer case indexing ring to correct front driveline angles and allow use of factory driveshafts

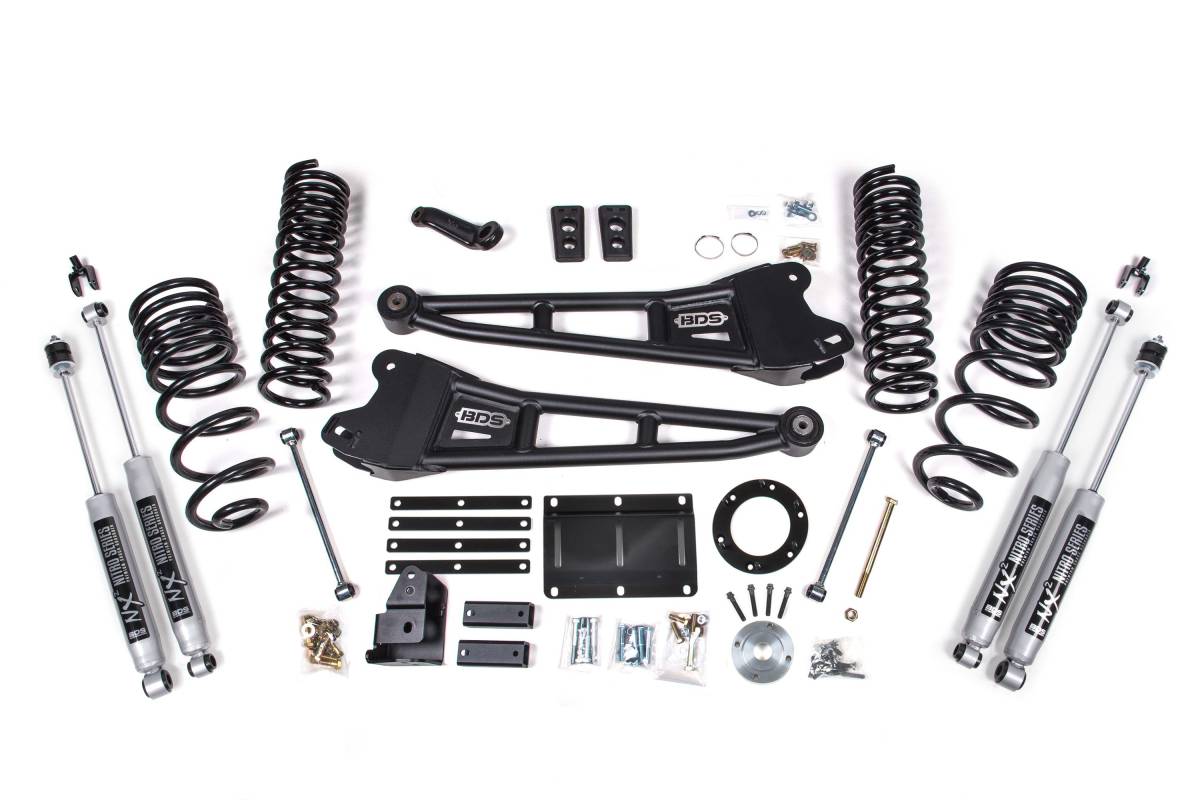

• Shock options include BDS NX2 gas or FOX Performance Series IFP gas shocks for improved ride and off-road performance

Specifications

• Lift Height: 6 inches
• Vehicle Fitment: 2014–2018 RAM 2500 4WD Diesel
• Tire Clearance: Up to 37 inches
• Radius Arms: High-strength tubular steel with OE-style rubber bushing at frame mount; caster adjustable
• Coil Springs: Full-length, diesel-specific, progressive rate Pro-Ride; manufactured from high tensile steel with properly sized wire diameter
• Includes: Radius arms, front and rear coil springs, forged drop pitman arm, track bar drop bracket, track bar relocation bracket, bump stops, bump stop extensions, brake line brackets, sway bar links, HD transmission crossmember, transfer case indexing ring, and shocks

Installation

• Estimated Time: 6–8 hours
• Difficulty: Moderate
• Tools Required: Drill / Bit Set, Pitman Arm Puller, Welding Equipment
