BDS 4 Inch Lift Kit w/ 4-Link | Ford F350 Super Duty DRW 4WD Diesel (2020-2022) | NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks front and rear. NX2 Nitro shocks feature a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, a 1-3/8-inch high-flow piston, dual-welded ends for increased strength, self-lubricating seals, and a silver powder coat finish.

Overview

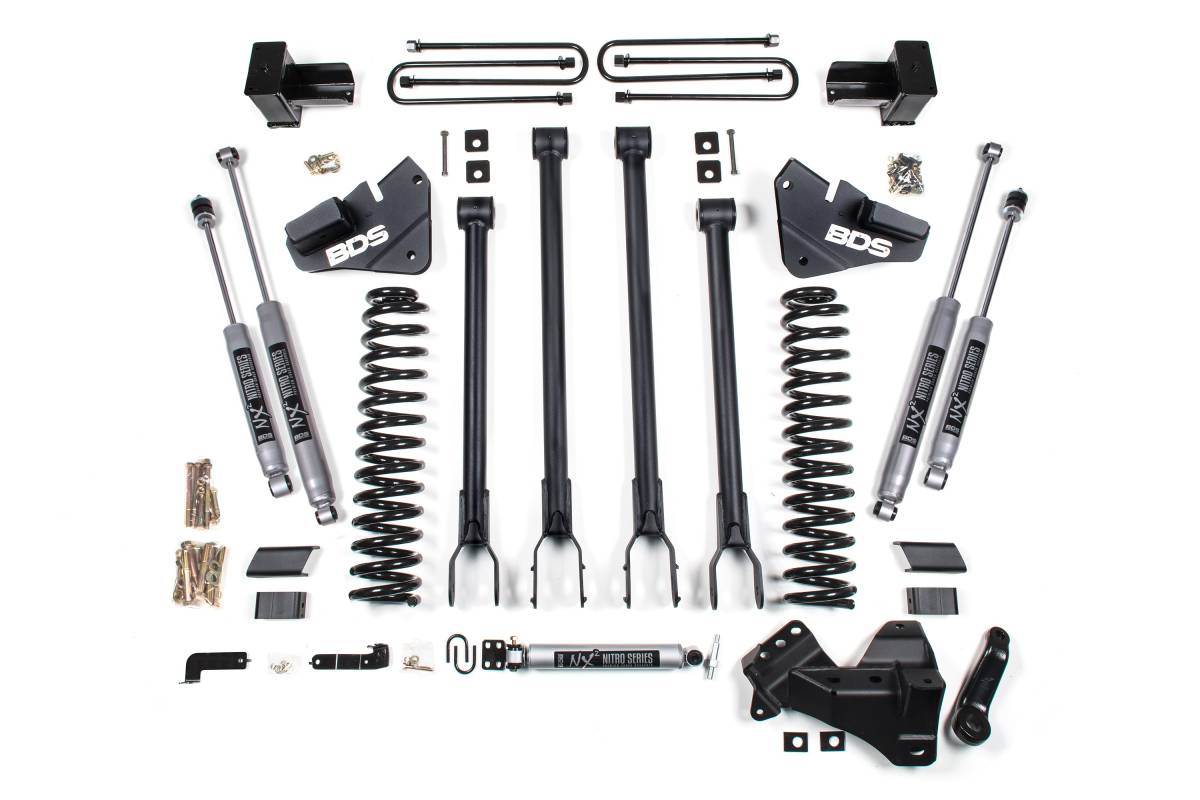

This 4-inch lift kit with 4-Link conversion from BDS Suspension is designed for dual rear wheel Ford F350 Super Duty diesel-powered trucks. The kit improves stance, performance, and capability, and includes everything necessary to accommodate up to 37-inch tires. Up front, the kit features diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision-tuned shocks. In the rear, the kit utilizes a high-strength fabricated lift block, longer U-bolts, and brake line brackets, along with a matched set of shocks.

4-Link Conversion

The BDS 4-Link converts the factory stamped steel radius arms to optimized suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets to mount HD upper and lower control arms, correcting axle positioning and limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

Full-length, diesel-specific Pro-Ride coil springs are supplied to deliver the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

A forged drop pitman arm minimizes steering angle and pairs with a heavy duty track bar drop bracket to keep steering components in phase through suspension travel while recentering the front axle.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual rate coil springs provide a smooth ride through any terrain
• Heavy duty 4-Link control arms offer improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide a level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade option to FOX 2.0 Performance Series or FOX 2.5 Performance Elite shocks for maximum performance on and off-road

Specifications

• Lift Height: 4 inches
• Rear lift method: High-strength fabricated lift block with longer U-bolts
• 4-Link conversion brackets: 1/4-inch high-strength steel
• Coil springs: Full-length, diesel-specific Pro-Ride dual rate
• Tire clearance: Up to 37 inches (37 x 12.50 may require minor trimming)
• Compatible vehicle: 2020–2022 Ford F350 Super Duty DRW 4WD Diesel

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: 30mm Socket, Torque Wrench (capable of 405 ft-lbs), Pitman Arm Puller

Important Notes

• Removal of the factory leaf spring block is required. Net rear lift will vary depending on the height of the factory block but will result in a level stance.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
• A torque wrench capable of 405 ft-lbs is required.
• 37 x 12.50 tires may require minor trimming.
