BDS 4 Inch Lift Kit w/ 4-Link | Ford F350 Super Duty DRW 4WD Gas (2017-2019) | FOX 2.0 Performance Series Shocks

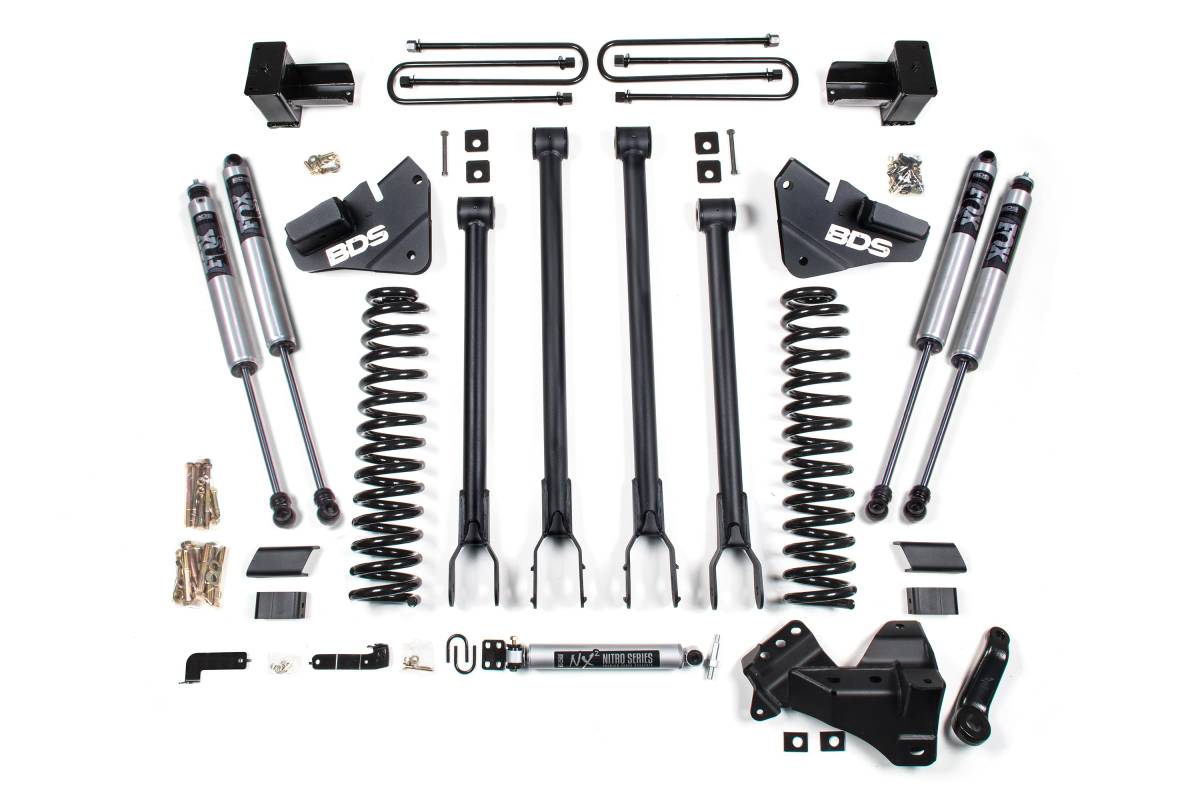

Configured with FOX 2.0 Performance Series shocks. Features a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, and application-specific valving for maximum on- and off-road performance. Finished in a long-lasting clear anodized coating.

Overview

This 4-inch lift kit with 4-Link conversion from BDS Suspension is designed for dual rear wheel (DRW) 2017–2019 Ford F350 Super Duty gas-powered trucks. The kit is engineered to improve stance, performance, and capability, providing clearance for up to 37-inch tires. Up front, the kit includes gasoline-specific Pro-Ride coil springs, 4-Link control arms with conversion brackets, a forged drop pitman arm, track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear, it utilizes a high-strength fabricated lift block, longer U-bolts, and brake line brackets. Precision-tuned shocks are included front and rear, with options for NX2 Nitro Series, FOX 2.0 Performance Series, or FOX 2.5 Performance Elite.

4-Link Conversion

This kit converts the factory stamped steel radius arms to a BDS 4-Link system to optimize suspension geometry for better handling characteristics while adding strength and stability. The bolt-on upgrade uses high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, gasoline-specific Pro-Ride dual-rate coil springs are included to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

A forged drop pitman arm minimizes the steering angle once lifted, paired with a heavy-duty track bar drop bracket to keep steering components in phase through suspension travel while recentering the front axle.

Features

• Easy, 100% bolt-on installation
• Pro-Ride dual-rate coil springs for a smooth ride across varied terrain
• Heavy-duty 4-Link control arms for improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles
• Fabricated steel blocks provide a level stance from front to rear
• Brake line brackets included front and rear
• Sway bar relocation hardware included

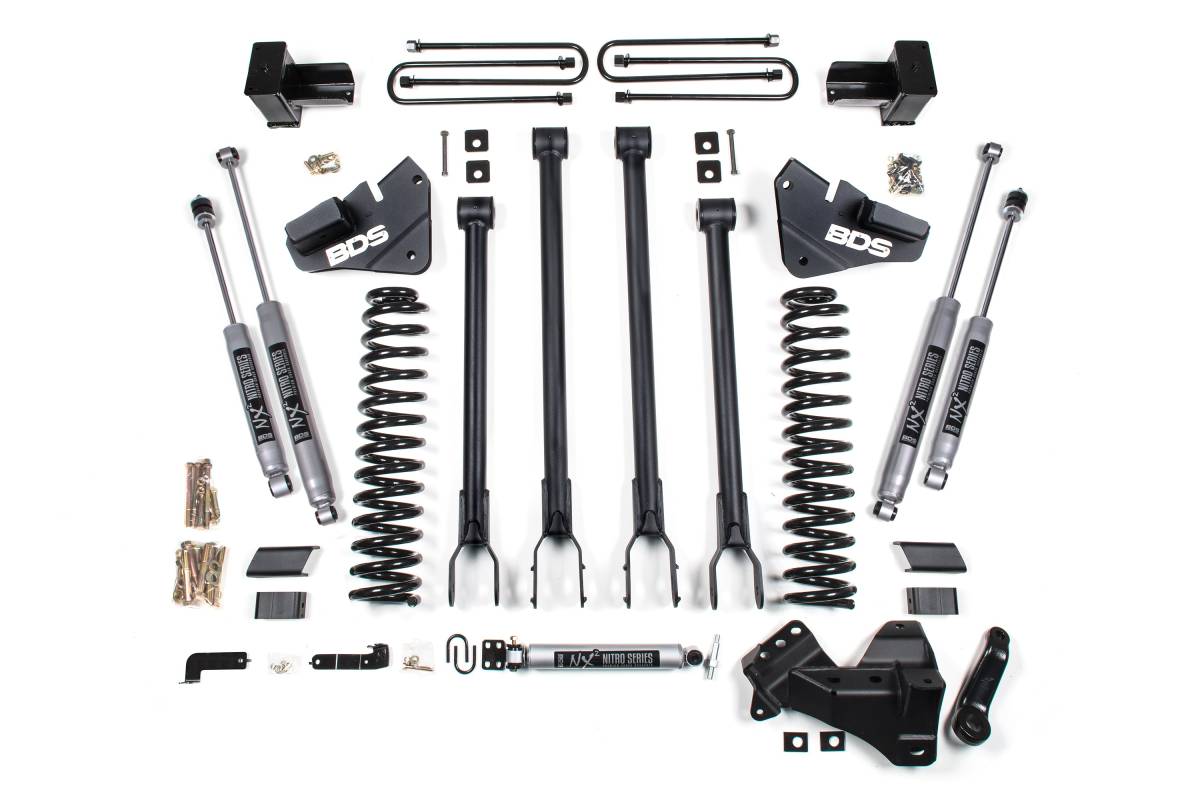

• Standard NX2 Nitro shocks with vehicle-specific valving
• Available upgrade to FOX 2.0 Performance Series shocks for enhanced on- and off-road performance
• Available upgrade to FOX 2.5 Performance Elite shocks with DSC adjuster and external reservoir

Specifications

• Lift Height: 4 inches
• Vehicle Fitment: 2017–2019 Ford F350 Super Duty DRW, 4WD, Gas
• Max Tire Size: Up to 37-inch tires
• 4-Link conversion brackets: High-strength 1/4-inch steel
• Rear lift: High-strength fabricated lift block with longer U-bolts
• Coil springs: Full-length, gasoline-specific, Pro-Ride dual-rate

Installation

• Estimated Time: 10 hours
• Difficulty: Difficult
• Tools Required: Torque Wrench, Drill / Bit Set, Pitman Arm Puller, Reciprocating Saw

Important Notes

• Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
• Installation requires a torque wrench capable of 405 ft-lbs.
