BDS 4 Inch Lift Kit | 2019-2020 Ford F150 Raptor 4WD | 5 Inch Rear Block Kit

Configured with a 5 Inch Rear Block Kit, this option provides a level-to-tail-high appearance, raising the rear of the truck to meet or exceed the front lift height.

Overview

This 4-inch suspension lift kit from BDS Suspension is engineered specifically for the 2019–2020 Ford F150 Raptor. After extensive development, BDS determined that a 4-inch lift height allows for optimal use of the factory-equipped FOX LiveValve shocks while maintaining the full range of suspension travel provided by the factory suspension components. The kit provides clearance for up to 37-inch tires and takes advantage of BDS's high-clearance design for improved ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for proper on-road handling.

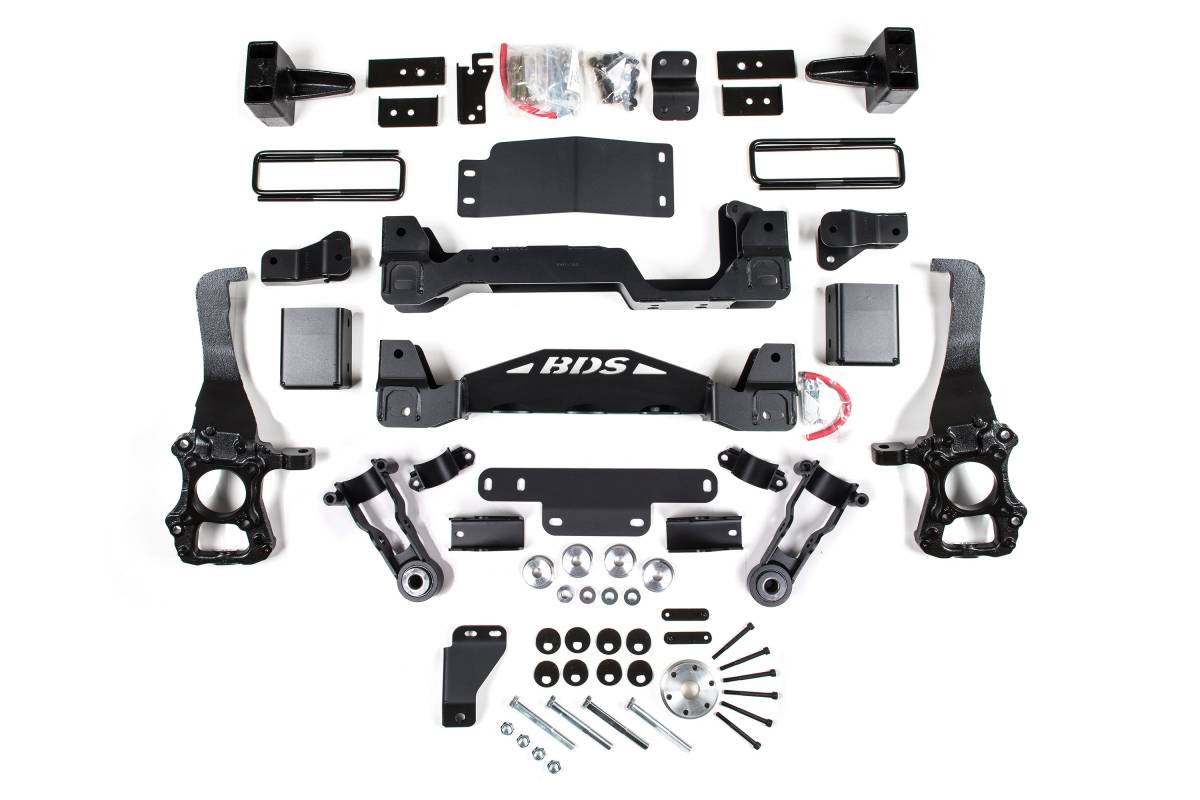

Up front, the kit uses high-arched 1/4-inch thick steel crossmembers, lower strut extensions, multi-piece differential relocation brackets, and a skid plate designed for off-road protection. Steering geometry is corrected at the new ride height with CNC-machined ductile iron steering knuckles, paired with sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware. In the rear, high-strength lift blocks and longer U-bolts lift and level the stance, while rear shock relocation brackets retain the factory FOX internal bypass rear shocks.

Features

• High-clearance crossmembers improve strength and off-road capability
• Heavy-duty steering knuckles correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and U-bolts to lift and level the stance
• Shock relocation brackets to retain the factory FOX shocks

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 37 inches
• Crossmember thickness: 1/4-inch laser-cut steel
• Steering knuckles: CNC-machined ductile cast iron
• Compatible with factory FOX LiveValve and internal bypass rear shocks
• Includes alignment cam bolts, sway bar relocation brackets, brake line brackets, and all necessary hardware

Installation

• Estimated Time: 10 hours
• Difficulty: Moderate
• Special Tools Required: Coil Spring Compressor, Cut-off Tool, Reciprocating Saw

Important Notes

• Required frame bracket modification and welding.
• Stock wheels cannot be reinstalled with a lift.
• Check for proper tie rod end clearance if using 37x12.50 tires on 18x9 (5" BS) wheels.
