BDS 6 Inch Lift Kit | Ford Ranger (2019-2023) 4WD | Cast Aluminum Knuckle | w/ FOX 2.0 Performance Series Shocks

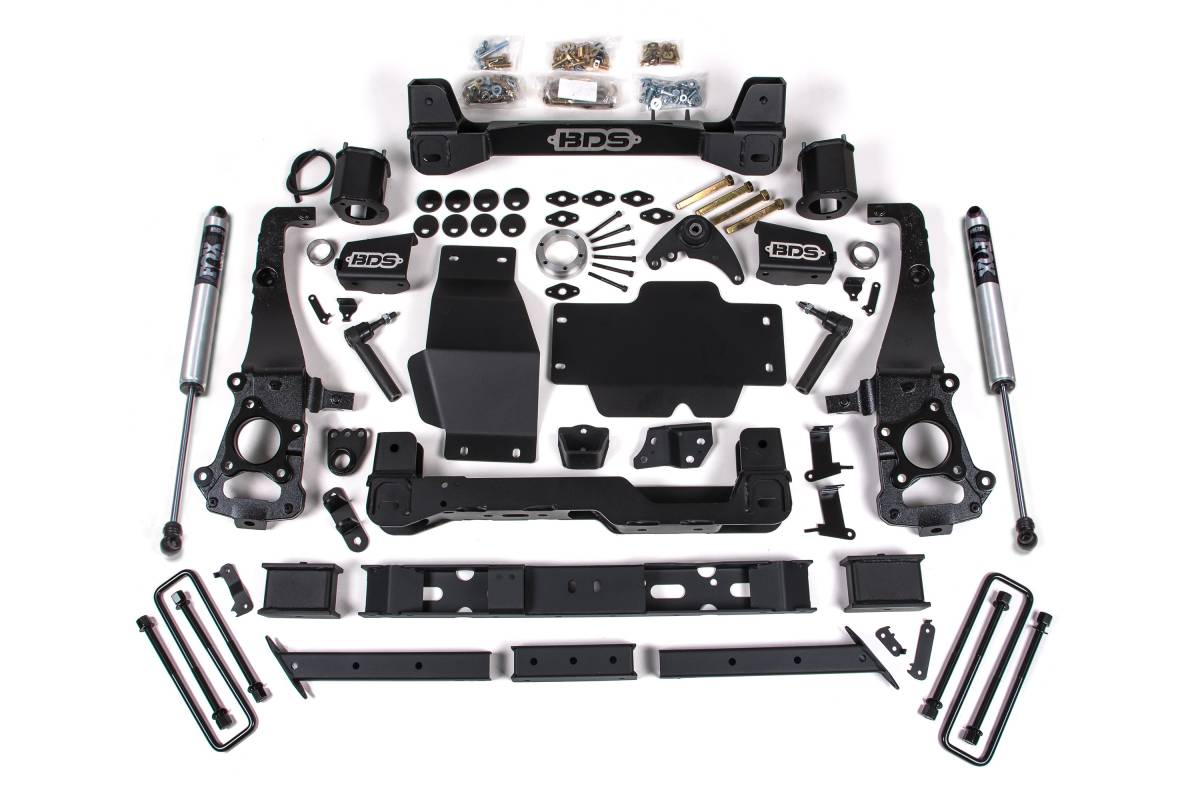

Configured for Cast Aluminum OE Knuckle models (2020+ Rangers) with FOX 2.0 Performance Series rear shocks. FOX 2.0 shocks feature a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston, application-specific valving, and a long-lasting clear anodized finish.

Cast Aluminum knuckle models use different ball joints than Cast Steel knuckle models. Verify your factory knuckle type before ordering.

Overview

BDS Suspension's 6-inch suspension lift kit is engineered for 2019–2023 Ford Ranger 4WD trucks, providing improved stance, performance, and capability with clearance for up to 35-inch tires. The kit employs a high-clearance design to maximize ground clearance, structural strength, and off-road protection while correcting suspension and steering geometry for proper on-road handling at the new ride height.

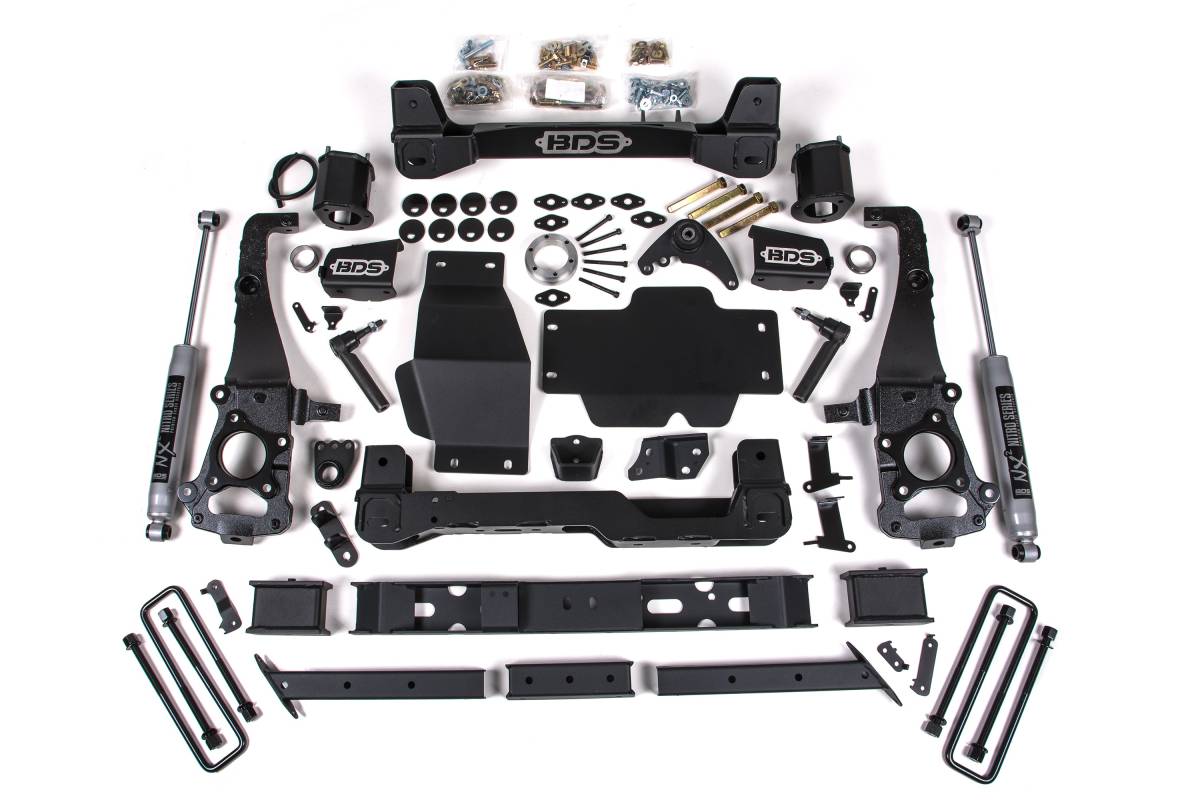

Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers, top-mounted strut spacers, multipiece differential relocation brackets, and a skid plate for off-road protection. Steering geometry is corrected via a pair of CNC-machined ductile iron steering knuckles. Sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware are included for a comprehensive front suspension installation. In the rear, a heavy-duty replacement transfer case crossmember, high-strength fabricated lift blocks, and longer U-bolts lift and level the stance.

Features

• High-clearance crossmembers improve strength and off-road capability
• Heavy-duty CNC-machined ductile cast iron steering knuckles correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and U-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Available upgrade to FOX 2.0 Performance Series shocks for maximum on- and off-road performance

Specifications

• Lift Height: 6 inches
• Tire Clearance: Up to 35 inches
• Front crossmembers: 1/4-inch thick laser-cut high-arched steel
• Steering knuckles: CNC-machined ductile cast iron
• Rear lift: Fabricated lift blocks and extended U-bolts
• Rear crossmember: Heavy-duty replacement transfer case crossmember
• Includes: Strut spacers, differential relocation brackets, skid plate, sway bar relocation brackets, brake line brackets, alignment cam bolts, and all hardware

Installation

• Estimated Time: 8 hours
• Difficulty: Difficult
• Tools Required: 35mm Axle Nut Socket, Air Hammer (Recommended), Basic Hand Tools, Ball Joint Separation Tool, Cut-off Tool, Jack / Jack Stands

Important Notes

• Requires frame bracket and differential modification. If using a plasma cutter for the frame bracket modification, disconnecting the battery is highly recommended.
• Stock 17–18-inch wheels cannot be reinstalled.
• When balancing tires for 17–18-inch wheels, wheel weights are best positioned towards the center of the wheel to avoid interference with the tie rod end.
• Rack and pinion steering is sensitive to tire choice. Aggressive tires, smaller backspacing, or tires that require several wheel weights may induce steering wheel wobble.
• Will not work on Tremor model.
• Ford produces two knuckle/control arm configurations in 2020+ model Rangers. Cast Steel knuckle-equipped models have different ball joints than models equipped with Cast Aluminum knuckles. Verify which factory knuckle your truck has before ordering.
