BDS 4 Inch Lift Kit | 2014 Ford F150 2WD | w/ NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish — tuned with vehicle-specific valving for improved ride control.

Overview

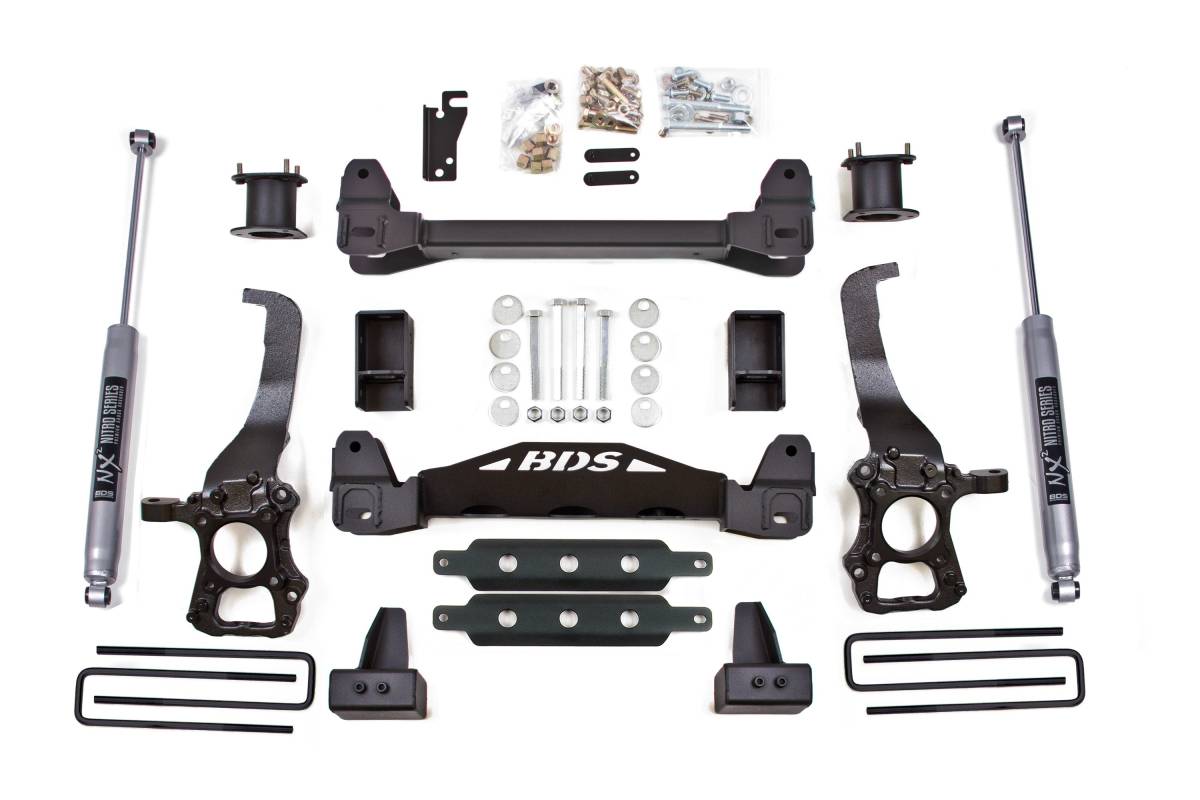

This 4-inch suspension lift kit from BDS Suspension is engineered for the 2014 Ford F150 2WD and includes everything needed to improve stance, performance, and off-road capability while providing clearance for up to 35-inch tires. The kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for superior on-road handling. Up front, high-arched 1/4-inch-thick steel crossmembers and a skid plate provide off-road protection, and steering geometry is corrected at the new ride height with a pair of CNC-machined ductile iron steering knuckles. In the rear, high-strength cast steel lift blocks and longer u-bolts lift and level the stance.

Features

• High clearance crossmembers improve strength and off-road capability
• Heavy duty steering knuckles correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers provide lift and install easily
• Differential skid plate for improved off-road protection
• Rear lift blocks and u-bolts to lift and level the stance
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Optional upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 35 inches
• Front crossmembers: 1/4-inch-thick laser-cut steel, high-arched design
• Steering knuckles: CNC-machined ductile cast iron
• Rear lift blocks: High-strength cast steel
• Includes: Sway bar relocation brackets, brake line brackets, alignment cam bolts, and all necessary hardware

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Tools Required: Metric/Standard Socket Wrench Set, Cut-off Tool

Important Notes

• 18-inch or larger diameter wheels required. Stock 17-inch & 18-inch wheels cannot be reinstalled.
• Stock 20-inch wheels can be used with up to 305/60-20 tires.
• E-brake bracket required for factory power steps (part #123018).
• Will not fit HD models (7 lug).
• For a level to tail-low appearance, use #023416 with Kit #1504H.
• Block kits replace factory 1-1/4-inch block.
