BDS 6 Inch Lift Kit | 1987-1995 Jeep Wrangler YJ | w/ NX2 Nitro Series Shocks

Configured with NX2 Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Overview

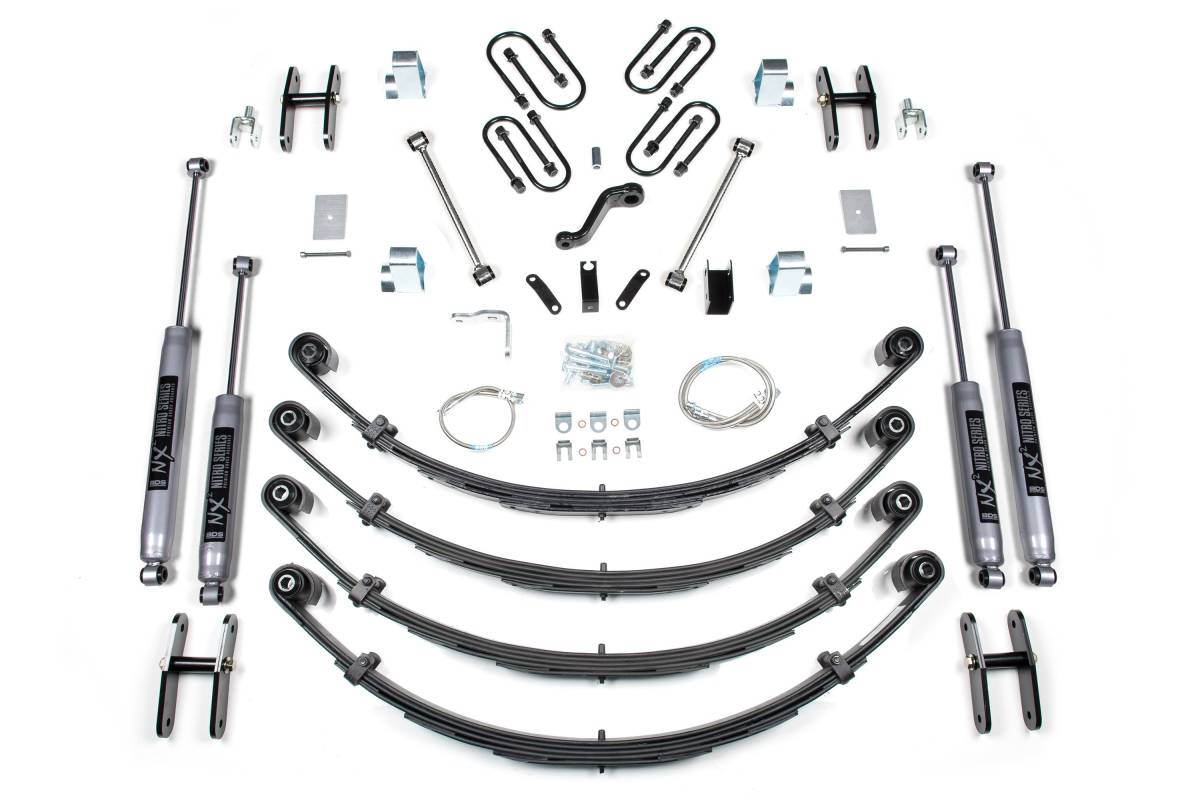

BDS Suspension's 6-inch suspension lift kit is designed to improve the stance and capability of the 1987–1995 Jeep Wrangler YJ, providing clearance for up to 35-inch tires. The kit includes front and rear Glide-Ride leaf springs with new U-bolts, front and rear track bar relocation brackets to center the axle, stainless steel braided brake lines, sway bar disconnects, a power steering pitman arm, bump stop extensions, and 1-inch extended shackles. Specially tuned shocks are included to deliver improved damper performance.

The Glide-Ride leaf springs utilize an exclusive triple-stage, multi-leaf progressive spring rate design with tapered leafs, anti-friction pads, bolt-style leaf alignment clamps, and a full military wrap to protect spring eyes. This design provides flexibility throughout the suspension cycle and a smooth ride under varying loads.

Features

• Glide-Ride leaf springs for full lift height and increased capacity
• Front and rear track bar relocation brackets to center the axle
• NX2 Nitro Series shocks with vehicle-specific valving for improved control (upgrade to FOX 2.0 Performance Series available)
• Stainless steel braided brake lines
• Sway bar disconnects
• Power steering pitman arm
• Bump stop extensions
• 1-inch extended shackles
• 100% bolt-on installation

Specifications

• Lift Height: 6 inches
• Tire Clearance: Up to 35 inches
• Spring Type: Glide-Ride multi-leaf progressive rate, triple-stage design
• Spring Features: Tapered leafs, anti-friction pads, bolt-style leaf alignment clamps, full military wrap
• U-bolts: Included (front and rear)
• Brake Lines: Stainless steel braided
• Extended Shackles: 1-inch
• Compatibility: 1987–1995 Jeep Wrangler YJ

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Tools Required: Torque Wrench, Drill / Bit Set, Brake Fluid, Jack / Jack Stands, Pitman Arm Puller

Important Notes

• May require a larger diameter driveshaft if equipped with a 41-1/2-inch front driveshaft.
• A slip yoke eliminator and dual cardan style rear driveshaft is required.
• Extended shackles are recommended to clear the military wraps on the springs.
• Pitman arms will NOT fit YJ models equipped with manual steering.
