BDS 3 Inch Lift Kit | 2012-2018 Jeep Wrangler JK 2-Door | FOX 2.0 Performance Series Shocks w/ Fixed Links

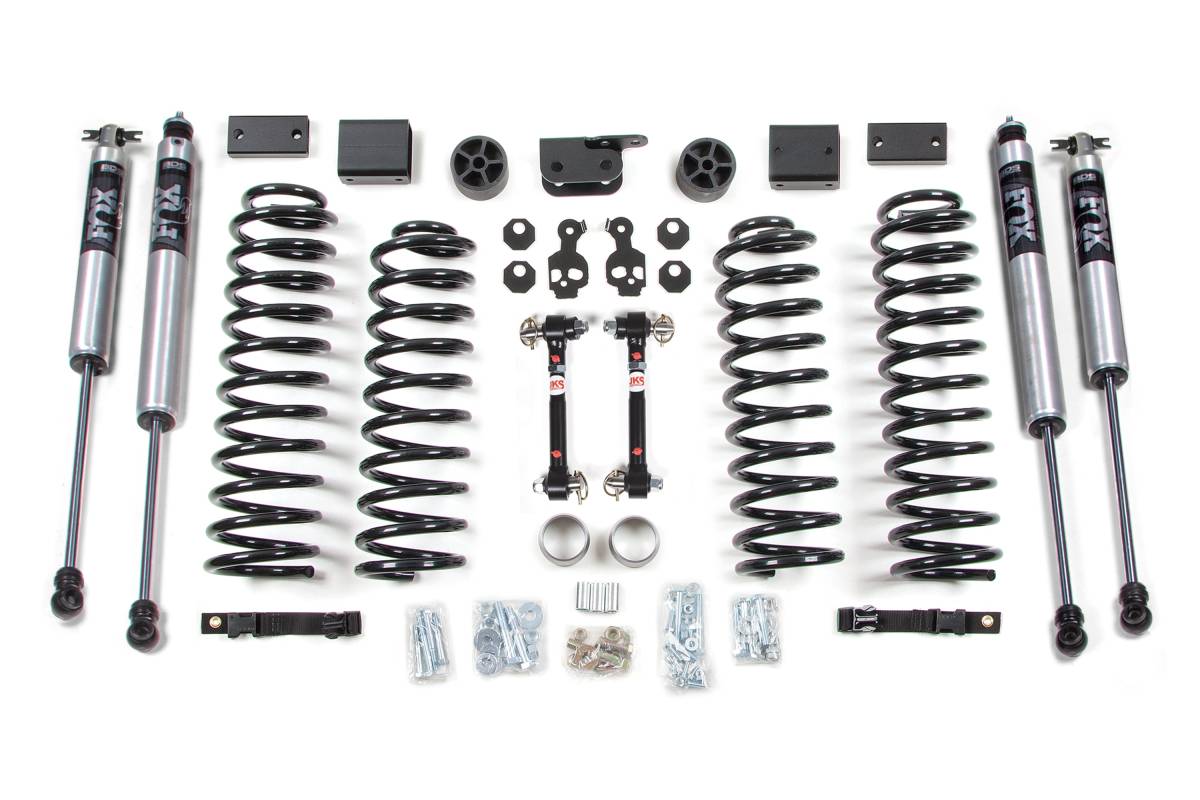

Configured with FOX 2.0 Performance Series shocks and fixed sway bar links. The FOX 2.0 Performance Series features a 2-inch impact extruded aluminum body, an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish. Rated with a 1-year manufacturer's warranty.

Fixed sway bar links feature heavy-duty steel construction with a zinc finish, polyurethane hourglass bushings for long life and quiet operation, and improve handling with a proper sway bar operating angle.

Overview

This 3-inch coil spring lift kit from BDS Suspension is designed for the 2012–2018 Jeep Wrangler JK 2-Door. The kit includes everything necessary to improve stance and provide clearance for up to 35-inch tires. Up front, the kit includes 3-inch Pro-Ride coil springs capable of full coil bind, 2-inch bump stop extensions to control compression travel while increasing wheel travel, brake line brackets, alignment cams to fine-tune front caster angles, and sway bar links. In the rear, the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. A choice of shock absorber and sway bar link configurations is available to match your off-road requirements.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive-rate Pro-Ride coil springs is supplied to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high-tensile steel, these direct OE replacement coil springs are engineered with properly sized wire diameters for maximum reliability without premature coil bind.

Features

• Pro-Ride coil springs offer improved ride quality and more articulation
• Sway bar links and extended rear link for improved off-road flex
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment

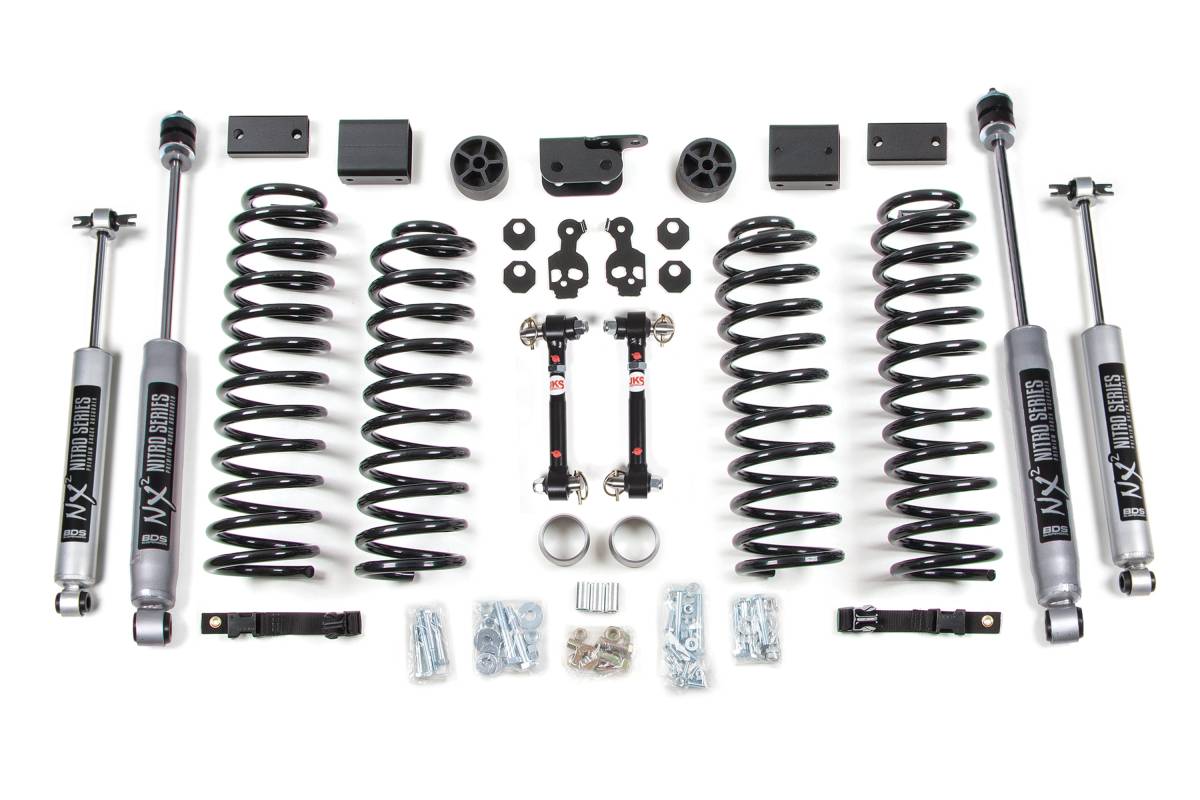

• Choice of NX2 Nitro Series gas or FOX 2.0 / FOX 2.5 performance series shocks for improved damping
• Provides clearance for up to 35-inch tires

Specifications

• Lift Height: 3 inches
• Front: 3-inch Pro-Ride progressive-rate coil springs, high-tensile steel construction
• Front: 2-inch bump stop extensions
• Includes brake line brackets, alignment cams, and sway bar links
• Rear: Pro-Ride coil springs, sway bar drop brackets, frame-mounted track bar relocation bracket
• Tire Clearance: Up to 35 inches

Installation

• Estimated Time: 6 hours
• Difficulty: Moderately Easy
• Tools Required: Basic Hand Tools, Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands

Important Notes

• Removing the OE spring isolators will result in a 1-inch lift if desired.
• 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels.
• This kit is FMVSS No. 126 Compliant.
• This kit is right hand drive compatible.
