BDS 3 Inch Lift Kit | 2012-2018 Jeep Wrangler JK 2-Door | FOX 2.5 Performance Elite Shocks w/ Disconnects

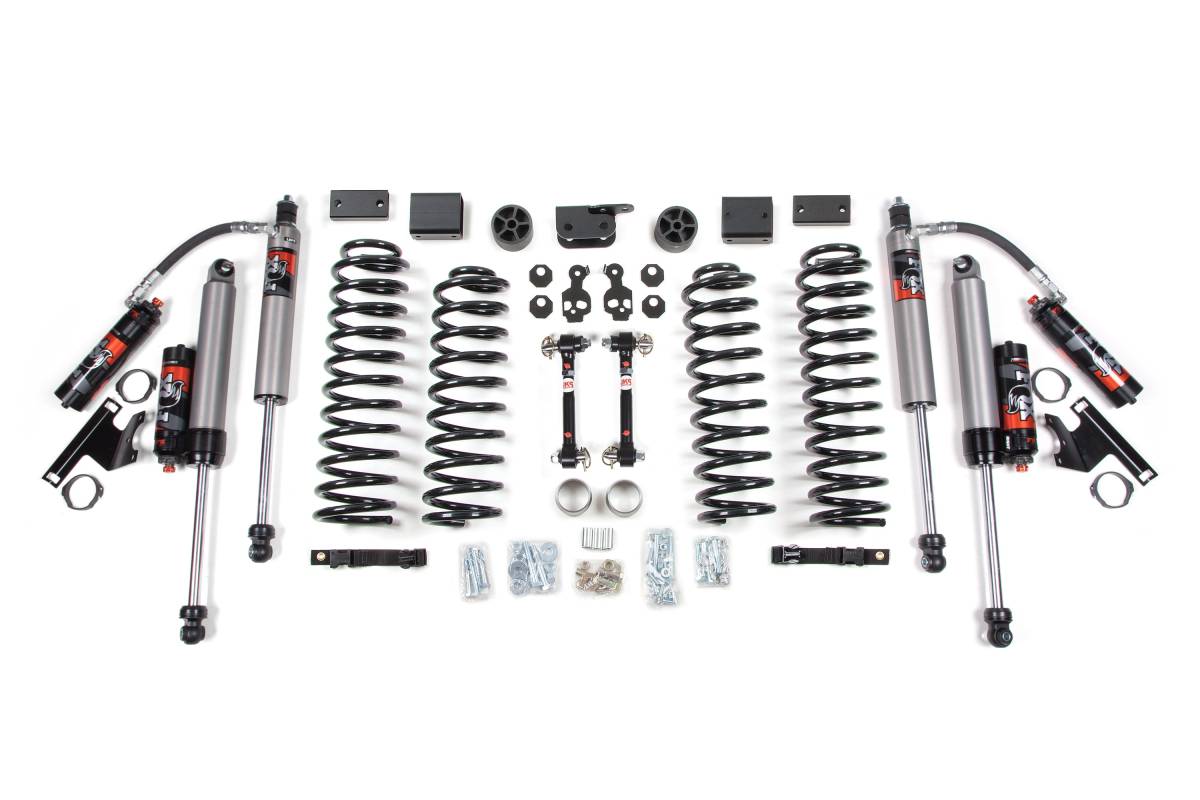

Configured with FOX 2.5 Performance Elite shocks and sway bar quick disconnects. The FOX 2.5 Performance Elite features a 2.5-inch impact extruded aluminum body, a massive 7/8-inch hard chrome plated heat-treated alloy steel shaft, an external reservoir design that separates shock oil from high-pressure nitrogen, a DSC (Dual Speed Compression Adjuster) standard, CNC machined 6061-T6 aluminum mounting ends, race-developed high-flow piston design, application-specific valving, and is fully serviceable for a lifetime of use.

The sway bar quick disconnects allow you to gain 30% more axle articulation by disconnecting the front sway bar. Features include stainless tapered mounting posts, self-align bushings for connecting or disconnecting on unlevel surfaces, spherical bushings providing 360 degrees of rotation and 11 degrees of misalignment capability, and convenient grease fittings for easy bushing lubrication. Required for use on Rubicon models with electronic disconnect.

Overview

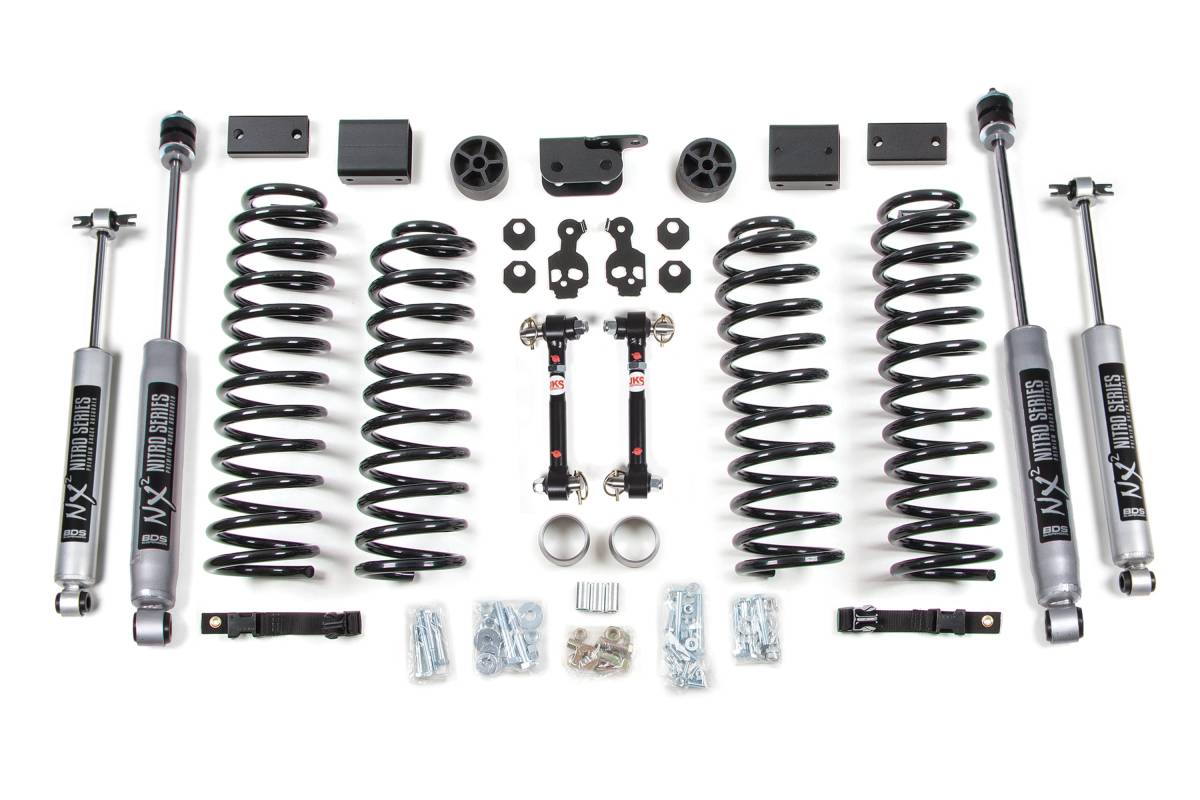

This 3-inch coil spring lift kit from BDS Suspension is designed for the 2012–2018 Jeep Wrangler JK 2-Door. The kit includes everything necessary to improve stance and provide clearance for up to 35-inch tires. Up front, the kit includes 3-inch Pro-Ride coil springs capable of full coil bind, 2-inch bump stop extensions to control compression travel while increasing wheel travel, brake line brackets, alignment cams to fine-tune front caster angles, and sway bar links. In the rear, the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. A choice of shock absorber and sway bar link configurations is available to match your off-road requirements.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive-rate Pro-Ride coil springs is supplied to provide the correct lift height and a smooth, predictable ride across various terrains. Manufactured from high-tensile steel, these direct OE replacement coil springs are engineered with properly sized wire diameters for maximum reliability without premature coil bind.

Features

• Pro-Ride coil springs offer improved ride quality and more articulation
• Sway bar links and extended rear link for improved off-road flex
• Rear track bar bracket repositions rear axle under vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 Nitro Series gas or FOX 2.0 / FOX 2.5 performance series shocks for improved damping
• Provides clearance for up to 35-inch tires

Specifications

• Lift Height: 3 inches
• Front: 3-inch Pro-Ride progressive-rate coil springs, high-tensile steel construction
• Front: 2-inch bump stop extensions
• Includes brake line brackets, alignment cams, and sway bar links
• Rear: Pro-Ride coil springs, sway bar drop brackets, frame-mounted track bar relocation bracket
• Tire Clearance: Up to 35 inches

Installation

• Estimated Time: 6 hours
• Difficulty: Moderately Easy
• Tools Required: Basic Hand Tools, Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands

Important Notes

• Removing the OE spring isolators will result in a 1-inch lift if desired.
• 124408 rear track bar or 124308 rear track bar relocation is recommended if using factory wheels.
• This kit is FMVSS No. 126 Compliant.
• This kit is right hand drive compatible.
