BDS 3 Inch Lift Kit | 2012-2018 Jeep Wrangler JK 4-Door | NX2 Nitro Series Shocks w/ Fixed Links

Configured with NX2 Nitro Series shocks and fixed sway bar links. The NX2 Nitro Series features a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, a 1-3/8-inch high-flow piston, self-lubricating seals, and a silver powder coat finish.

Fixed sway bar links feature heavy-duty steel construction with a zinc finish, polyurethane hourglass bushings for long life and quiet operation, and improve handling with a proper sway bar operating angle.

Overview

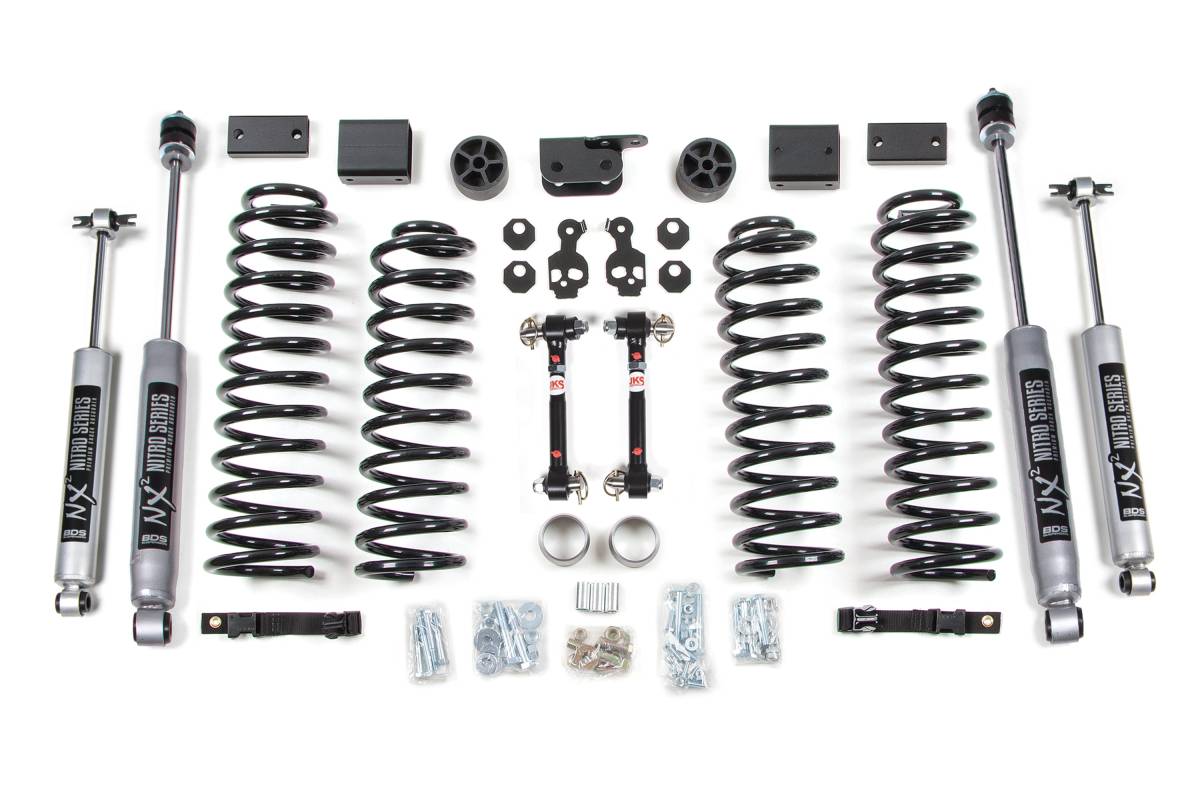

This 3-inch coil spring lift kit from BDS Suspension is designed for the 2012-2018 Jeep Wrangler JK 4-Door. The kit improves stance and provides clearance for up to 35-inch tires. Up front, the kit includes 3-inch Pro-Ride coil springs capable of full coil bind, 2-inch bump stop extensions to control compression travel while increasing wheel travel, brake line brackets, alignment cams to fine-tune front caster angles, and sway bar links. In the rear, the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. Pro-Ride coil springs are full-length, gas-specific, progressive-rate springs manufactured from high-tensile steel with properly sized wire diameters, engineered for maximum reliability without premature coil bind.

Features

• Pro-Ride coil springs for improved ride quality and more articulation
• Sway bar links and extended rear link for improved off-road flex
• Rear track bar bracket repositions the rear axle under the vehicle
• Lower cam locks to correct caster for alignment
• Choice of NX2 Nitro Series gas shocks or FOX 2.0 / FOX 2.5 Performance Series shocks for improved damping
• Provides clearance for up to 35-inch tires

Installation

• Estimated Time: 6 hours
• Difficulty: Moderately Easy
• Tools Required: Basic Hand Tools, Torque Wrench, Die Grinder, Drill / Bit Set, Jack / Jack Stands

Important Notes

• Exhaust modification may be required.
• This kit is FMVSS No. 126 Compliant.
• This kit is right-hand drive compatible. Follow right-hand drive installation instructions when installing this kit on a right-hand drive vehicle.
• If using the rear sway bar links included, the sway bar drop will not need to be installed.
• Requires a wheel with 4.5-inch backspacing or less for tire clearance.
