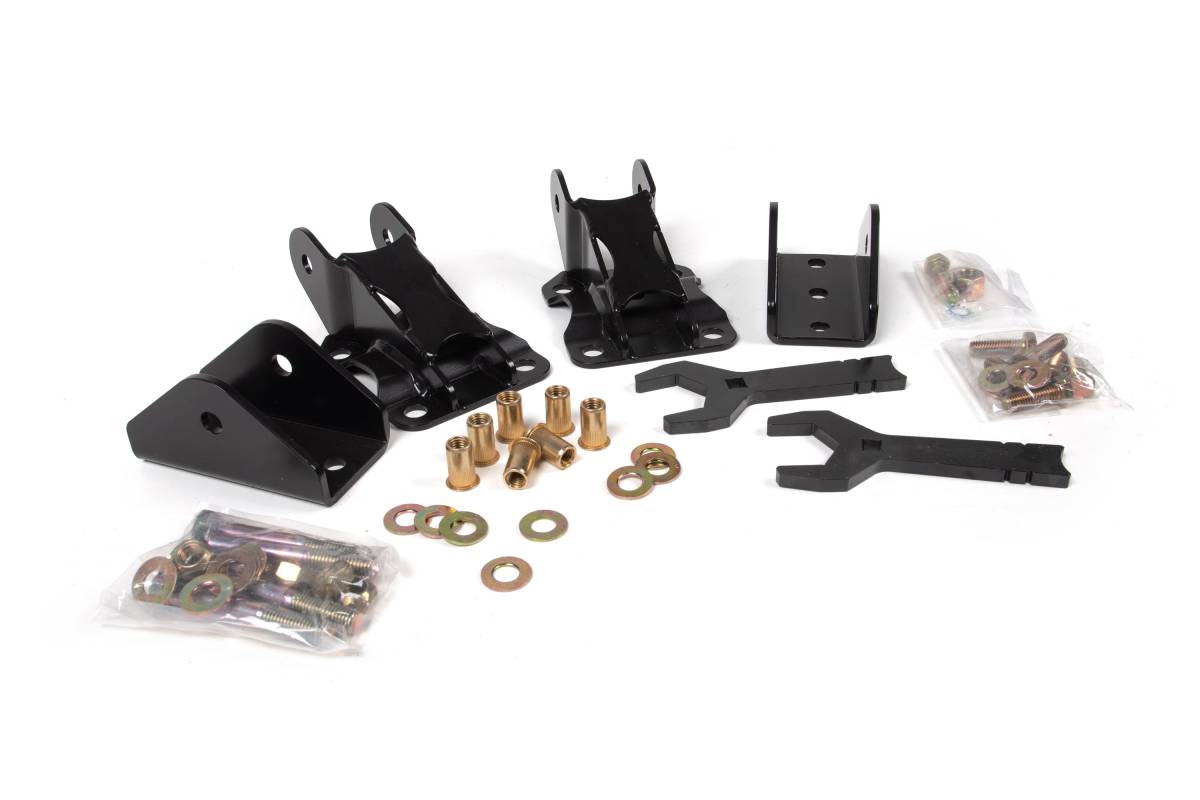

BDS Recoil Traction Bar Mounting Kit | 2004-2020 Ford F150 4WD

Overview

The BDS Recoil Traction Bar Mounting Kit is designed to improve traction on 2004–2020 Ford F150 4WD trucks without limiting wheel travel. Constructed from 2-inch OD x 3/16-inch wall steel tubing, the kit features heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap. The full float design delivers bind-free performance and is compatible with a range of lift heights. The axle mount uses BDS's large-forged flex end and jam nut, featuring a forged housing with a large 1-1/4-inch x 12 threaded shank, a single-sided snap ring, and a 1-piece flex ball capable of up to 15 degrees of misalignment in either direction. At the frame end, a durometer-specific polyurethane bushing free-floats in the traction bar via a pair of dual-stage internal compression springs and UHMW polyurethane bearings. A CNC-machined end is used at the frame, with a threaded bung welded in toward the axle end.

Features

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Specifications

• Tubing: 2-inch OD x 3/16-inch wall steel
• Axle mount: Large-forged flex end with jam nut
• Flex end housing: Forged, 1-1/4-inch x 12 threaded shank
• Flex end misalignment: Up to 15 degrees in either direction
• Frame end bushing: Durometer-specific polyurethane
• Internal bearings: UHMW polyurethane
• Compatible axle tube diameter: 3-5/8 inches

Installation

• Estimated installation time: 3–4 hours
• Mounting brackets are bolt-on; minor drilling required for frame mount installation

Important Notes

• Does not fit regular cab models
• Must measure axle — this kit fits trucks with 3-5/8" axle tube diameter
• Will work with Ford Raptor
