BDS Recoil Traction Bar Mounting Kit | 2007-2021 Toyota Tundra

Overview

The BDS Recoil Traction Bar Mounting Kit is designed for 2007–2021 Toyota Tundra trucks, providing improved traction without limiting wheel travel. Built with heavy wall steel construction and internal compression springs, the kit controls axle wrap while maintaining a full float design for bind-free performance across a range of lift heights. The bar is fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded toward the axle end and a CNC-machined end at the frame. The axle mount uses a large-forged flex end and jam nut with a forged housing featuring a 1-1/4-inch x 12 threaded shank, single-sided snap ring, and 1-piece flex ball capable of up to 15 degrees of misalignment in either direction. The frame end uses a durometer-specific polyurethane bushing that free-floats within the traction bar via dual-stage internal compression springs and UHMW polyurethane bearings.

Features

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable

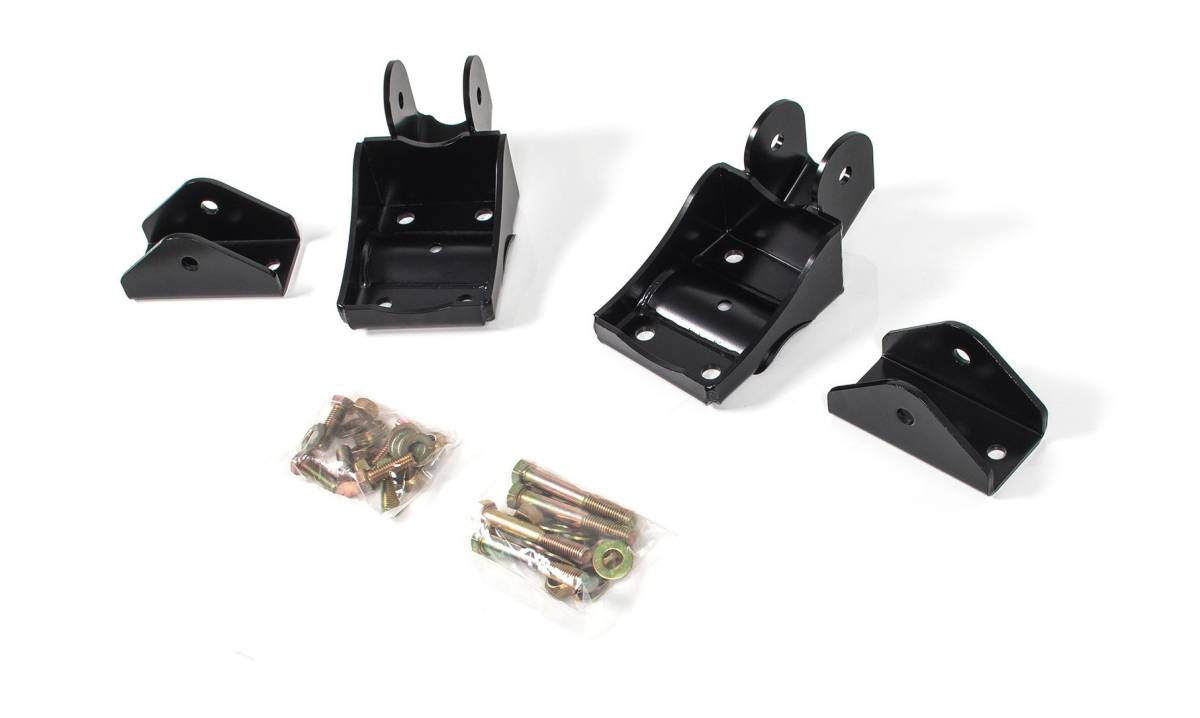

• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Specifications

• Tubing: 2-inch OD x 3/16-inch wall steel
• Axle-end threaded bung welded in; CNC-machined frame end
• Flex end: Large-forged housing with 1-1/4-inch x 12 threaded shank, single-sided snap ring, and 1-piece flex ball
• Flex end misalignment capability: up to 15 degrees in either direction
• Frame-end bushing: Durometer-specific polyurethane
• Internal bearings: UHMW polyurethane

Installation

• Estimated installation time: 3–4 hours

Important Notes

Requires Universal Traction Bar Box Kit (Sold Separately — #123409)
