BDS 4 Inch Lift Kit w/ 4-Link & FOX 2.5 Coilover Conversion | Ford F-450 Super Duty (2023-2026) 4WD | Rear FOX 2.5 Performance Series HTO

Configured with FOX 2.5 Performance Series HTO shocks in the rear. These shocks feature a 5/8-inch hard chrome plated heat-treated alloy steel shaft, a 2.5-inch impact extruded aluminum body, and Hydraulic Top Out (HTO) technology for usable position-sensitive rebound damping control on and off the pavement. Fully serviceable with a 1-year manufacturer's warranty.

Overview

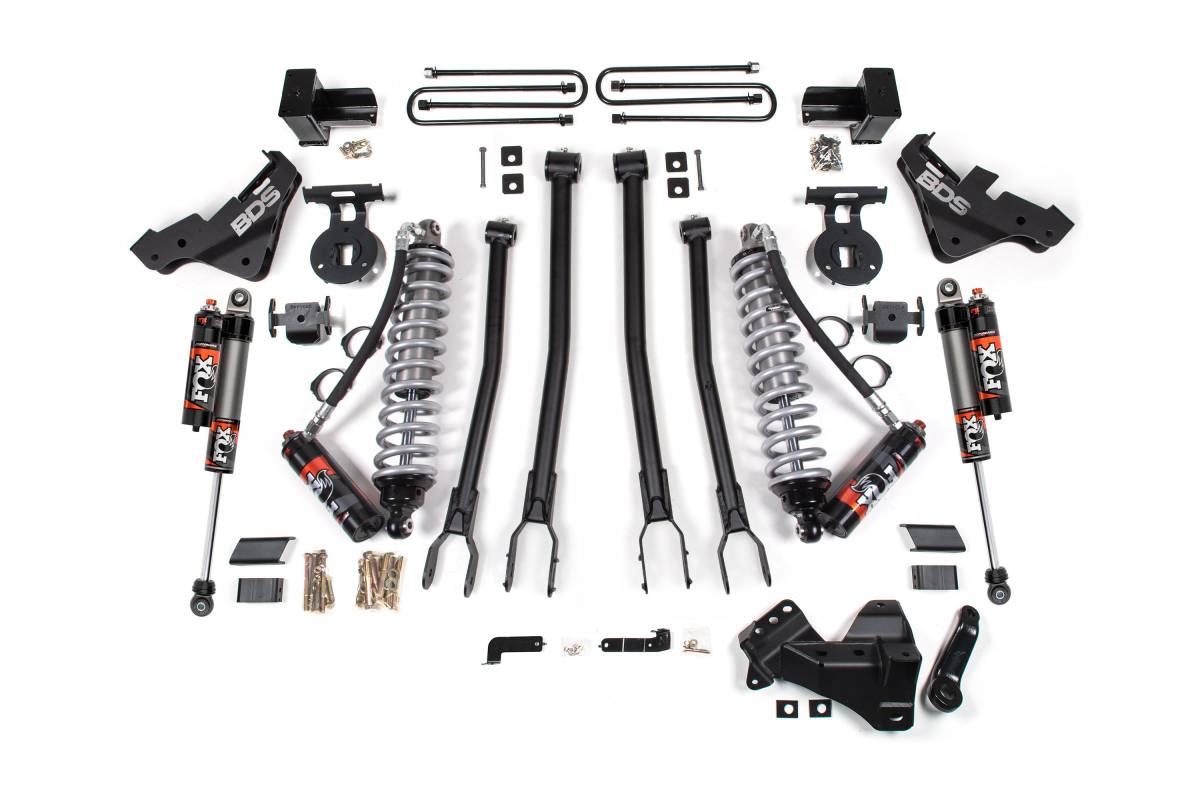

The BDS 4-inch 4-Link Lift Kit is engineered for the 2023–2026 Ford F-450 Super Duty 4WD (diesel models only), delivering improved strength, stability, and ride quality whether towing, hauling, or running off-road. This system replaces the factory radius arms with a heavy-duty 4-link setup that improves axle control, reduces binding, and provides smoother suspension movement throughout the full range of travel. The 4-link design delivers more consistent caster angles, enhanced articulation, and improved tracking under acceleration and braking — characteristics especially beneficial on larger Super Duty platforms like the F-450. Front FOX 2.5 Performance Elite coilovers are included for exceptional responsiveness, control, and damping consistency. Steering geometry is corrected with a forged drop pitman arm and a heavy-duty track bar drop bracket to keep components in phase through suspension travel and recenter the front axle.

Features

• BDS 4-Link suspension conversion replaces factory stamped steel radius arms for optimized suspension geometry
• High-strength 1/4-inch steel brackets allow mounting of HD upper and lower control arms to correct axle positioning
• Holds caster angle throughout suspension travel, limiting caster change during wheel movement
• Improved ride quality and superior axle articulation compared to radius-arm designs
• Better suspension geometry prevents anti-dive while braking, resulting in a more planted feel
• Front FOX 2.5 Performance Elite coilovers with remote reservoir for additional fluid capacity and cooling
• DSC Dual Speed Compression Adjuster with 10 low-speed and 12 high-speed compression levels on front coilovers
• Choice of FOX 2.5 Performance Elite or FOX 2.5 Performance Series HTO shocks in the rear
• BDS forged drop pitman arm maximizes steering radius at 4 inches of lift
• Heavy-duty track bar drop bracket keeps steering components in phase through suspension travel

Specifications

• Lift Height: 4 inches
• Suspension Type: 4-Link conversion
• Front Shocks: FOX 2.5 Performance Elite coilovers (2.5-inch diameter, black anodized aluminum reservoir)
• Rear Shock Options: FOX 2.5 Performance Elite or FOX 2.5 Performance Series HTO
• 4-Link bracket material: 1/4-inch high-strength steel
• Pitman arm: BDS forged drop design
• Fits: 2023–2026 Ford F-450 Super Duty 4WD — diesel models only
• Note: Designed for the F-450 style front end; not compatible with standard Ford Super Duty F-250/F-350 axle width

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Special Tools Required: Cut-off wheel or equivalent, reciprocating saw, welding equipment, torque wrench capable of 405 ft-lbs

Important Notes

• Fits diesel models only.
• These kits are designed for the F-450 style front end. They do not work with the standard Ford Super Duty F-250/350 axle width.
• Vehicles with radius arm mounted ride height sensors will require BDS123303.
• Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in the tire and wheel fitment section.
• Installation requires a torque wrench capable of 405 ft-lbs.
• Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center.
• Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
