BDS 4 Inch Lift Kit w/ 4-Link | FOX 2.0 Performance Series Coil-Over Conversion | Ford F350 Super Duty DRW (2020-2022) 4WD Diesel

Configured with FOX 2.0 Performance Series shocks. The FOX 2.0 features a 2-inch impact extruded aluminum body, internal floating piston (IFP) monotube design, CNC machined 6061-T6 aluminum mounting ends, a massive 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish. Fully serviceable with a 1-year Manufacturer's Warranty.

Overview

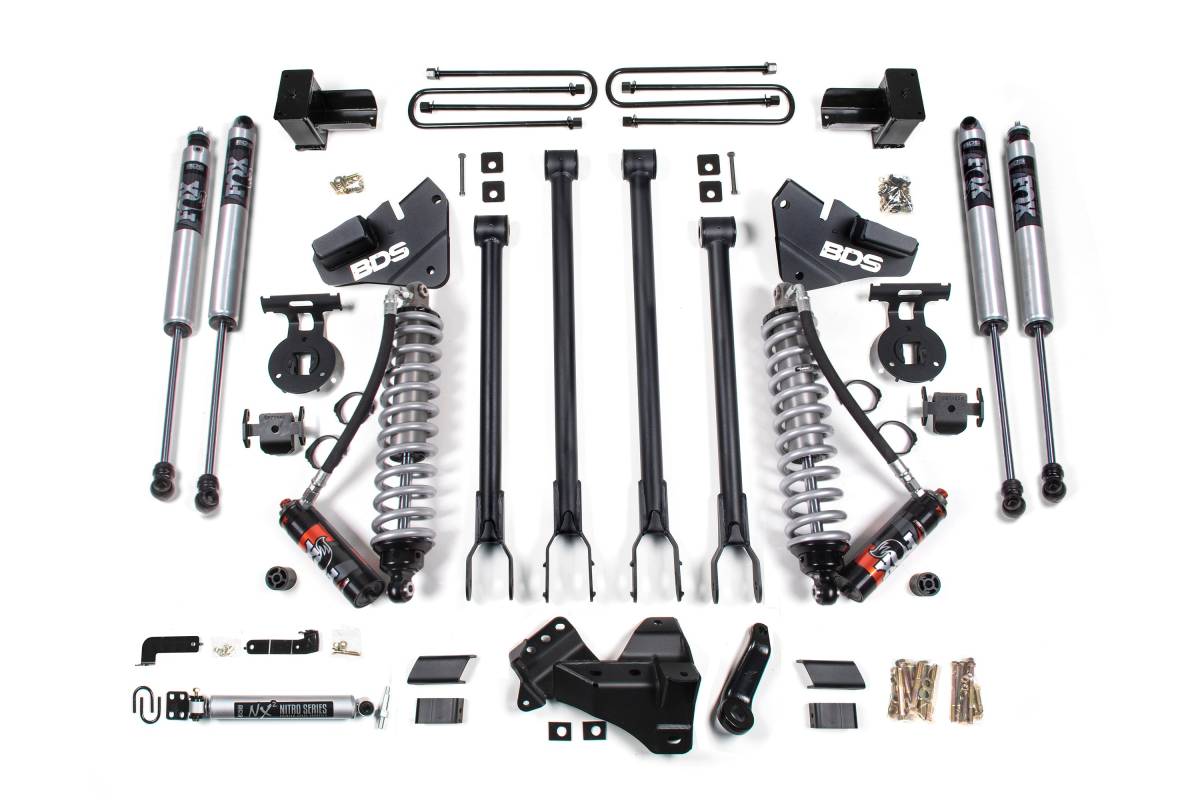

This 4-inch lift kit with 4-Link and coil-over conversion from BDS Suspension is designed for dual rear wheel Ford F350 Super Duty diesel-powered trucks (2020–2022, 4WD). The kit improves stance, performance, and capability, providing clearance for up to 37-inch tires. Up front, it includes diesel-specific FOX coil-over shocks, 4-link control arms with conversion brackets, a forged drop pitman arm, a track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear, the kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets, and a matching set of FOX Performance shocks.

4-Link Conversion

The BDS 4-link system converts the factory stamped steel radius arms to optimize suspension geometry for improved handling characteristics while adding strength and stability. This bolt-on upgrade uses high-strength 1/4-inch steel brackets to mount HD upper and lower control arms, correcting axle positioning and limiting caster change throughout wheel travel.

Steering Correction

A forged drop pitman arm minimizes steering angle after the lift, paired with a heavy-duty track bar drop bracket to keep steering geometry in phase through suspension travel and recenter the front axle.

Features

• FOX coil-over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for maximum performance
• Eibach coil springs for smooth ride through rough terrain
• Heavy-duty 4-Link control arms offer improved handling, stability, strength, and caster control during wheel travel
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide a level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Specifications

• Lift Height: 4 inches
• Tire Clearance: Up to 37 inches
• Fits: 2020–2022 Ford F350 Super Duty DRW 4WD Diesel
• 4-Link brackets: High-strength 1/4-inch steel construction
• Rear lift: High-strength fabricated lift block with longer u-bolts

Installation

• Estimated Time: 8–10 hours
• Difficulty: Difficult
• Special Tools Required: Torque wrench capable of 405 ft-lbs

Important Notes

• Removal of the factory leaf spring block is required. The net rear lift will vary depending on the height of the factory block but will result in a level stance.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402).
• Torque wrench capable of 405 ft-lbs required.
• 37 x 12.50 tires may require minor trimming.
