Overview

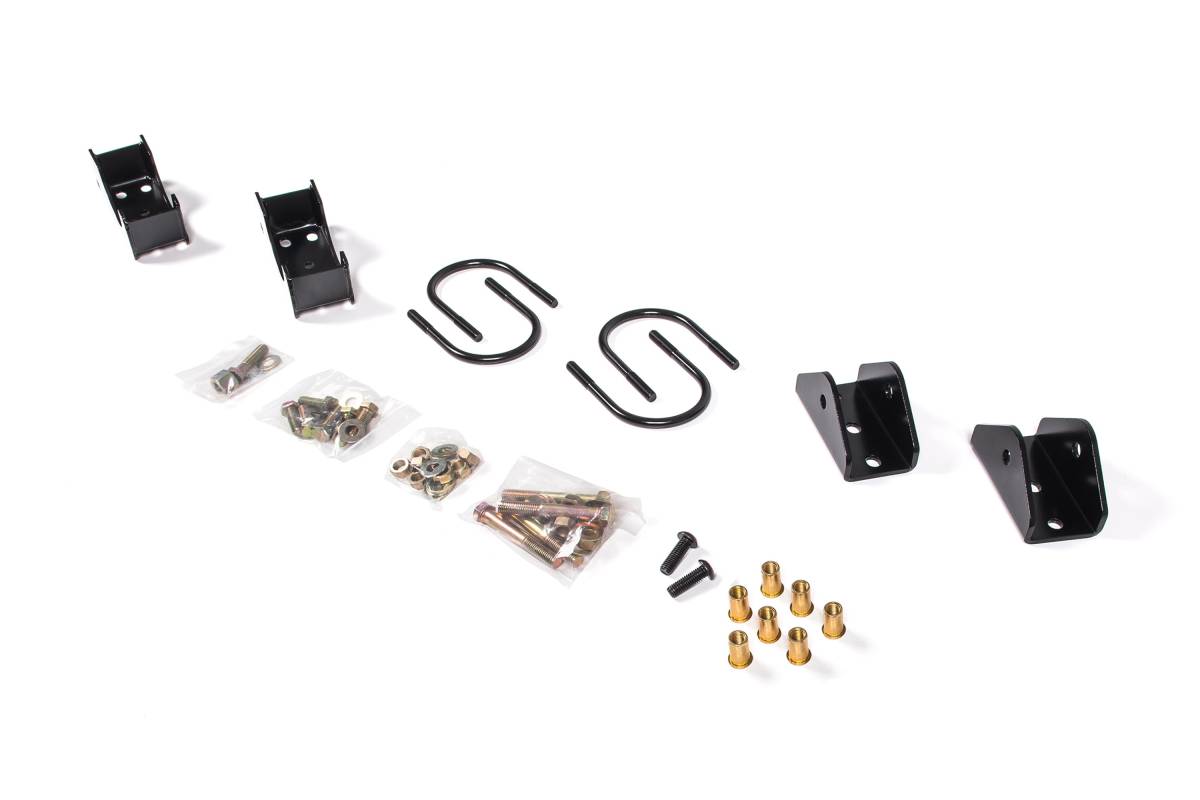

The BDS Recoil Traction Bar Mounting Kit is designed for 2003–2013 Ram 2500 and 2003–2018 Ram 3500 4WD trucks. Built with heavy wall construction and internal compression springs, this kit controls axle wrap without limiting wheel travel. The full-float design delivers bind-free performance across a range of lift heights. Bars are fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded toward the axle end and a CNC-machined frame end. The axle mount uses a large-forged flex end and jam nut housed in a forged housing with a large 1-1/4-inch x 12 threaded shank, a single-sided snap ring, and a 1-piece flex ball capable of up to 15 degrees of misalignment in either direction. At the frame end, a durometer-specific polyurethane bushing free-floats within the traction bar via dual-stage internal compression springs and UHMW polyurethane bearings.
Features
- Adjustable axle wrap control using dual-stage resistance springs
- Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
- Spring preload can be adjusted on the vehicle without disassembling the traction bar
- Traction bar ends are greaseable and rebuildable
- Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation
Specifications
- Tube construction: 2-inch OD x 3/16-inch wall steel tubing
- Frame end: CNC-machined with durometer-specific polyurethane bushing and dual-stage internal compression springs
- Axle end: Large-forged flex end with jam nut; forged housing with 1-1/4-inch x 12 threaded shank, single-sided snap ring, and 1-piece flex ball
- Flex end misalignment capability: Up to 15 degrees in either direction
- Bearings: UHMW polyurethane
Installation
- Estimated installation time: 3–4 hours
Important Notes
- Requires Universal Traction Bar Box Kit (Sold Separately — #123409)
- 2003–2017 Dodge 3500 — DEF Tank Skid Plate modifications may be required
