BDS Front Adjustable Track Bar | 1-3/8" Solid Steel | 2014-2026 RAM 2500 & 2013-2023 RAM 3500 4WD

Overview

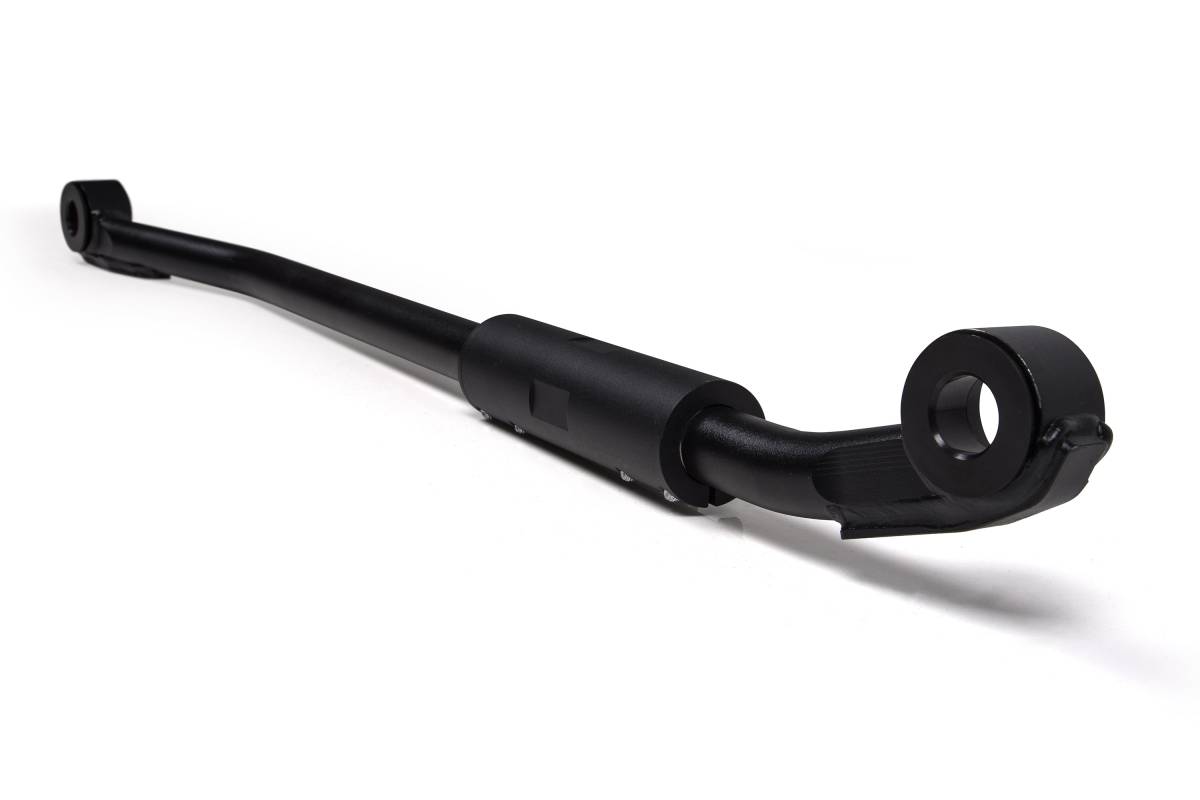

Replace the factory front track bar on your 2014–2026 RAM 2500 or 2013–2023 RAM 3500 4WD with this heavy-duty BDS adjustable upgrade. Constructed from 1-3/8" solid steel stock with gusseted ends, the bar is designed for use at 0–4" of lift in the stock location and can be combined with most aftermarket track bar relocation brackets for lift heights up to 8". Adjustments are made via a 1-3/8" x 12 fine-threaded center turnbuckle with pinch-bolt ends, allowing easy recentering of the front axle across a range of lift heights. The bar is specially formed for clearance around critical front-end components and installs without modification to factory frame or axle mounts. Both ends use high-durometer polyurethane bushings with thick-walled steel sleeves for strength and long-term reliability.

Features

• Heavy-duty 1-3/8" solid steel stock construction
• Center pinch-bolt style turnbuckle adjustment
• Allows front axle to be recentered across a wide range of lift heights
• Specially formed to alleviate stress on mount points
• Ready to install without need to clear factory frame or axle mounts

Specifications

• Material: Steel
• Lift Height: 0–8"
• Bushings Included: Yes

Installation

• Estimated Installation Time: 1 hour

Important Notes

• Designed for 0–4" of lift in stock location.
• Can be used in combination with a track bar relocation bracket on taller lifts up to 8".
