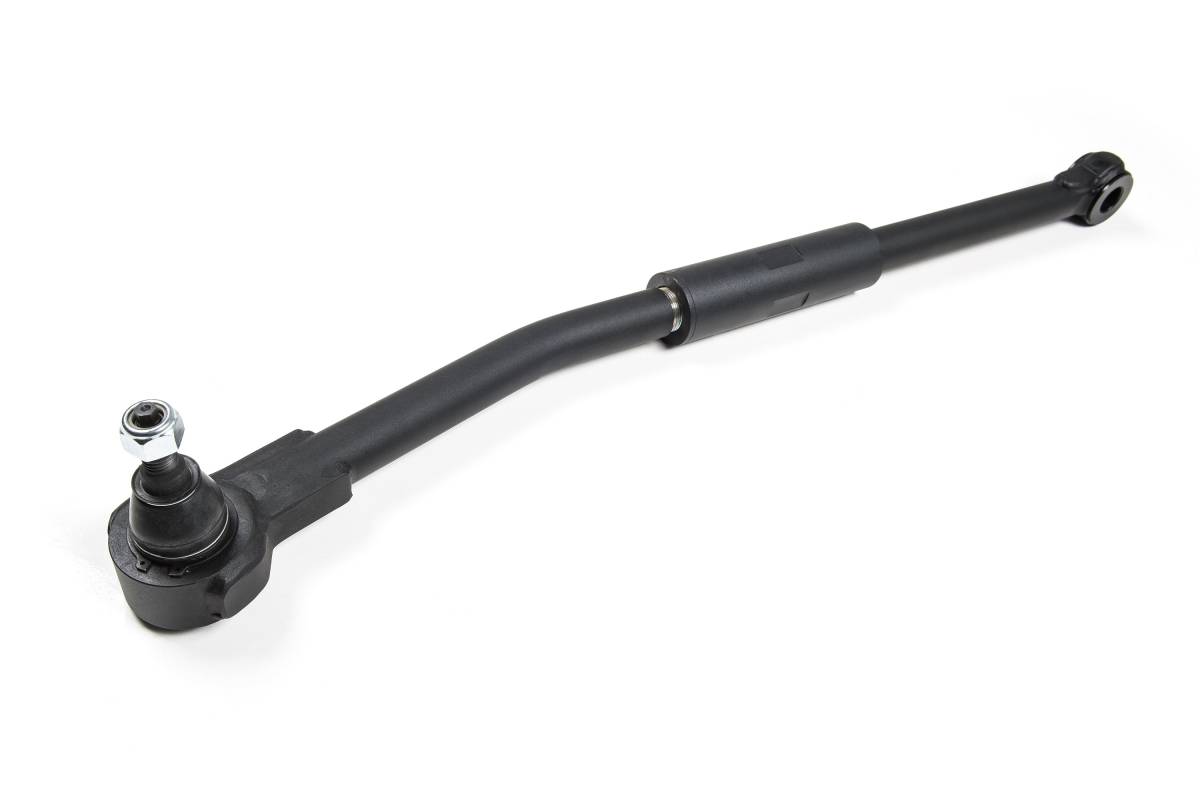

BDS Front Adjustable Track Bar | 1-3/8" Solid Steel | 2017-2026 Ford F250 / F350 Super Duty 4WD

Overview

Replace the stock front track bar on your 2017–2026 Ford F-250 or F-350 Super Duty 4WD with this heavy-duty BDS upgrade. Constructed from 1-3/8" solid steel stock with gusseted ends, this adjustable track bar is designed for use with 0–3 inches of lift on the factory track bar bracket and can be used in combination with most aftermarket track bar brackets for taller lift heights up to 8 inches. Adjustments are made via a 1-3/8" x 12 fine-threaded center turnbuckle with pinch-bolt ends, allowing easy tuning to properly recenter the front axle across a range of lift heights. The bar is specially formed for clearance around critical front-end components and installs without requiring modification to the factory frame or axle mounts. Both ends use high-durometer polyurethane bushings with thick-walled steel sleeves for strength and long-term reliability.

Features

• Heavy-duty 1-3/8" solid steel stock construction with gusseted ends
• Center pinch-bolt style turnbuckle for precise adjustment
• Allows front axle to be recentered across a wide range of lift heights
• Specially formed to alleviate stress on mount points and clear critical front-end components
• Ready to install without modification to factory frame or axle mounts
• High-durometer polyurethane bushings with thick-walled steel sleeves at both ends

Specifications

• Material: Steel
• Lift Height Range: 0–8"
• Bushings Included: Yes

Installation

• Estimated Installation Time: 1 hour

Important Notes

• Works with 0–4" of lift using the stock track bar bracket
• Works with 4"–8" of lift when used with a replacement extended track bar bracket
