4 Inch Radius Arm Drop Lift Kit | Ram 3500 (2025-2026) 4WD Gas | 2 Inch Rear Block w/o Overload | Nitro Series Shocks | Zone Offroad

Configured with a 2 Inch Rear Block Kit Without Overload — recommended for trucks not equipped with a factory overload leaf spring. Check your rear suspension and measure stock ride height before ordering to confirm the right rear setup.

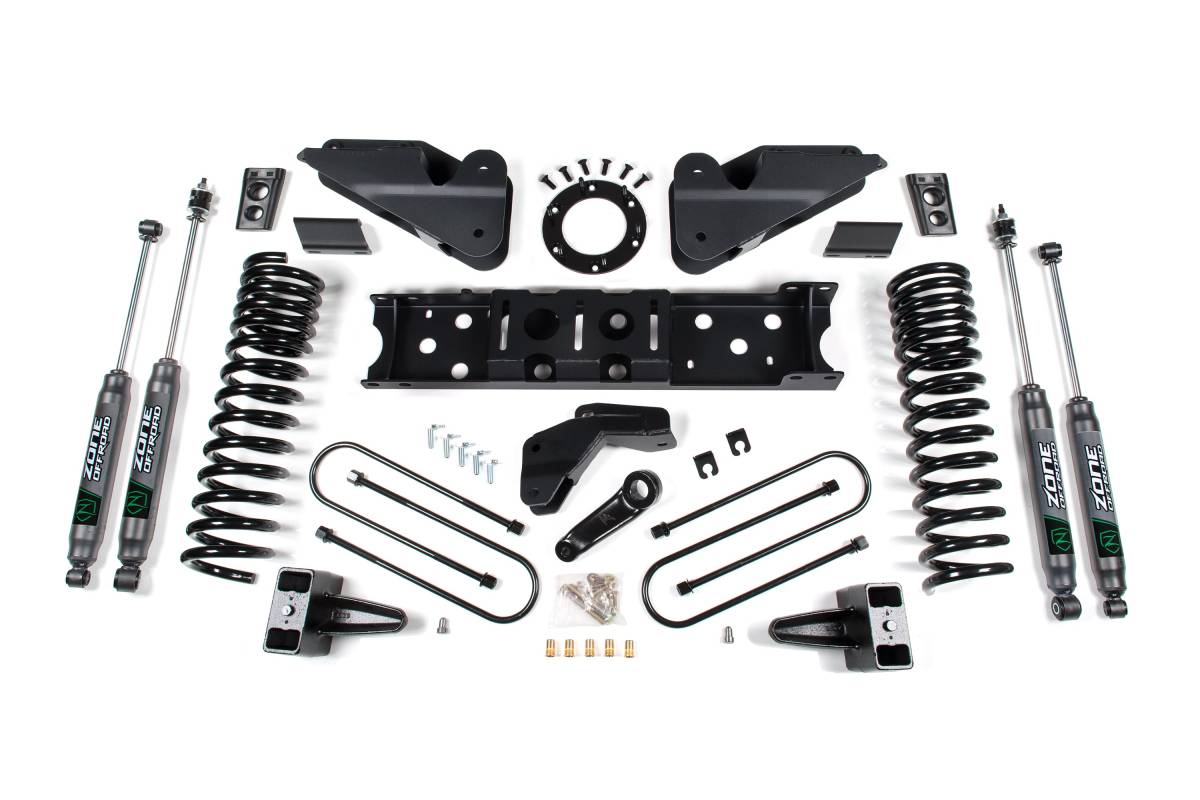

Includes Zone Nitro Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, black powder coat finish, and a 2-inch diameter steel body — delivering a comfortable, well-controlled ride for daily driving and light off-road use.

Overview

This Zone Offroad 4-inch radius arm drop lift kit is designed specifically for gasoline-powered Ram 3500 trucks (2025–2026) with 4WD. The system improves ride quality, handling, and off-road capability while maintaining on-road comfort, and provides clearance for up to 37-inch tires. Up front, progressive rate coil springs are engineered to support the weight of the gasoline Hemi engine while providing a smooth, controlled ride. Zone Offroad radius arm drop brackets relocate the OEM radius arm so the lifted truck operates at OEM geometry. A track bar relocation bracket re-centers the axle, ensuring optimal steering precision and alignment after installation or future adjustments. The kit also includes sway bar links and brake line brackets. In the rear, lift is achieved using a high-strength fabricated lift block combined with longer U-bolts for a secure, reliable installation. Rear shock options and rear block height options allow you to tailor the system to your truck's load and driving needs.

Features

• Zone Offroad radius arm drop brackets to provide OEM-like ride and handling
• High-strength progressive rate front coil springs for a smooth ride on any terrain
• Track bar relocation bracket to re-center the axle and maintain steering precision
• Sway bar links and brake line brackets included
• High-strength fabricated rear lift block with longer U-bolts

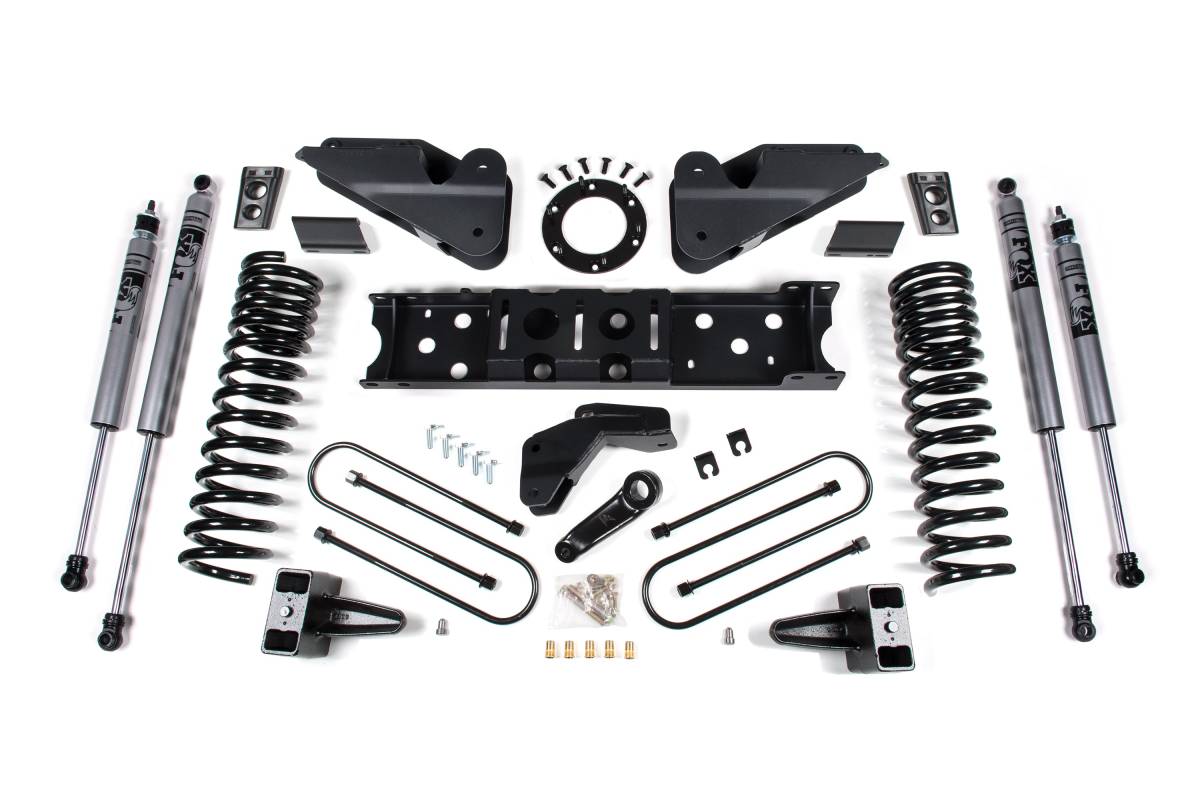

• Choice of FOX 2.0 Adventure Series or Zone Nitro Series shocks
• Choice of 2-inch or 3-inch rear block height to suit your truck's load and factory leaf spring configuration

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 4 inches
• Rear Lift Method: Block
• Rear Lift Height: 2 inches or 3 inches (variant dependent)
• Overall Lift Range: 4–5.5 inches
• Shocks Included: Yes
• Tire Clearance: Up to 37 inches

Rear Lift Option

Depending on how your truck is loaded — toolbox, bed cover, camper shell — you may want a different rear lift height to achieve the right stance. Zone Offroad offers both 2-inch and 3-inch rear lift block options. Additionally, some trucks are equipped with a factory overload leaf spring and others are not. Inspect the rear suspension and take a measurement of how your truck sits at stock ride height before selecting the rear configuration that is right for you.

Installation

• Estimated Time: 7–8 hours
• Difficulty: Difficult
• Special Tools Required: Cut-Off Wheel or equivalent, Pitman Arm Puller

Important Notes

• Does not work with OEM air suspension.
• Does not fit commercial chassis (cab and chassis).
