Configured with a Block Kit Without Factory Overload (3-Leaf) rear lift setup and FOX 2.0 Adventure Series shocks. The FOX 2.0 Adventure Series features a nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, a black powder coat finish, and a 2-inch diameter steel body.
Overview

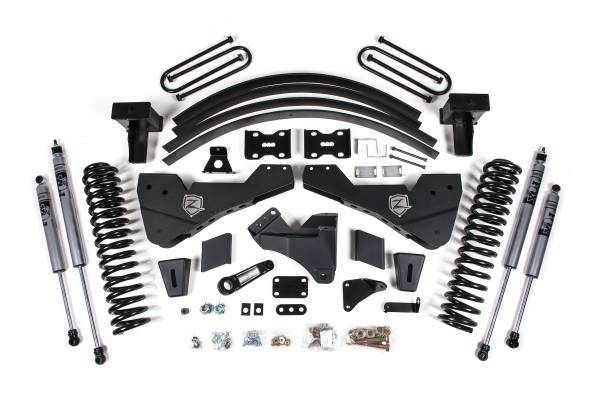

This 8-inch lift kit from Zone Offroad is designed to raise your Ford F-250/F-350 Super Duty (2011–2016) 4WD gas model to new heights. The kit includes full-length coil springs, radius arm relocation brackets, steering correction components, and a rear block and add-a-leaf kit — providing everything needed for a complete lift. The result is clearance for up to 38-inch tires.
Features
- Full-length 8-inch lift coil springs
- Forged pitman arm and HD track bar bracket to correct steering angles
- High-strength radius arm drop brackets to correct suspension geometry
- Sway bar and brake line relocation brackets to correct operating angles
- Rear lift block and dual add-a-leaf kit to lift and level the rear stance
- Allows clearance for up to 38-inch tires
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 8 inches
- Rear Lift Method: Block & Add-A-Leaf
- Rear Lift Height: 6 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 8 hours
- Installation Difficulty: Moderate
Important Notes
- Exhaust modification may be required to clear the front driveshaft (gas only).
- Although extremely rare, front driveshaft vibration may occur.
- If equipped with a 2-piece rear driveshaft, a carrier bearing drop will be required (ZONF5401).
- Front driveshaft u-joints may max out at full droop. If so, a new front driveshaft will be required.
- If equipped with a rear sway bar, extended sway bar links will be required (ZONF5009).
