3.5 Inch Lift Kit | Toyota Tundra (2007-2021) | Loaded Strut / Nitro Series Shocks | Zone Offroad

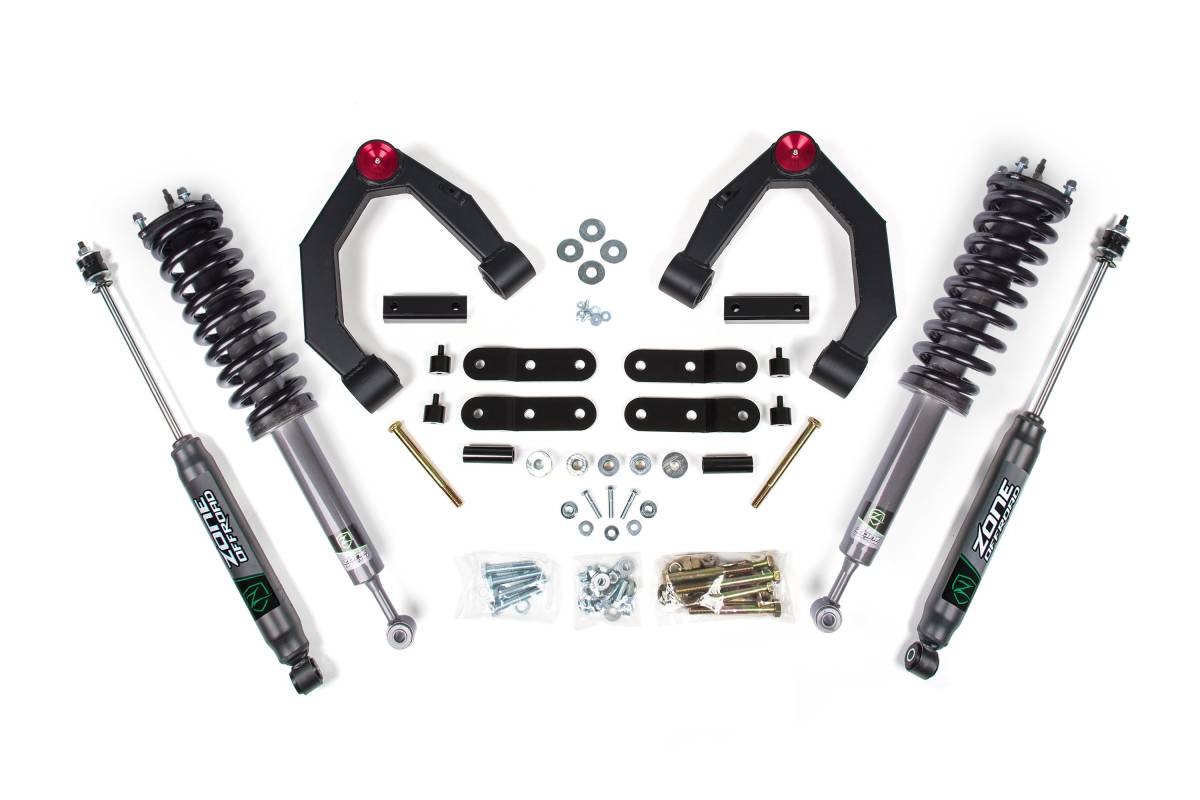

This configuration uses a loaded strut replacement up front (3.5" lift) and Nitro Series rear shocks with a block lift for 1" of rear lift. The Nitro Series shocks feature an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.

Overview

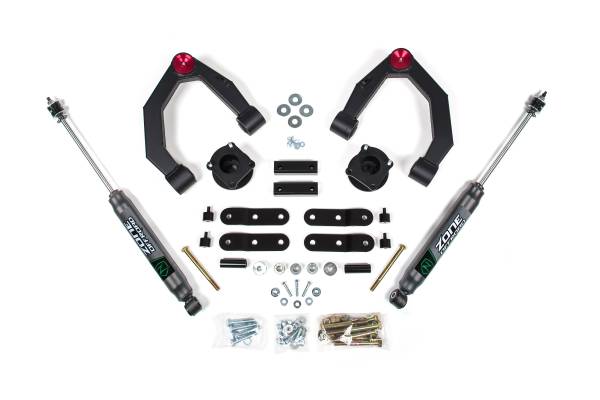

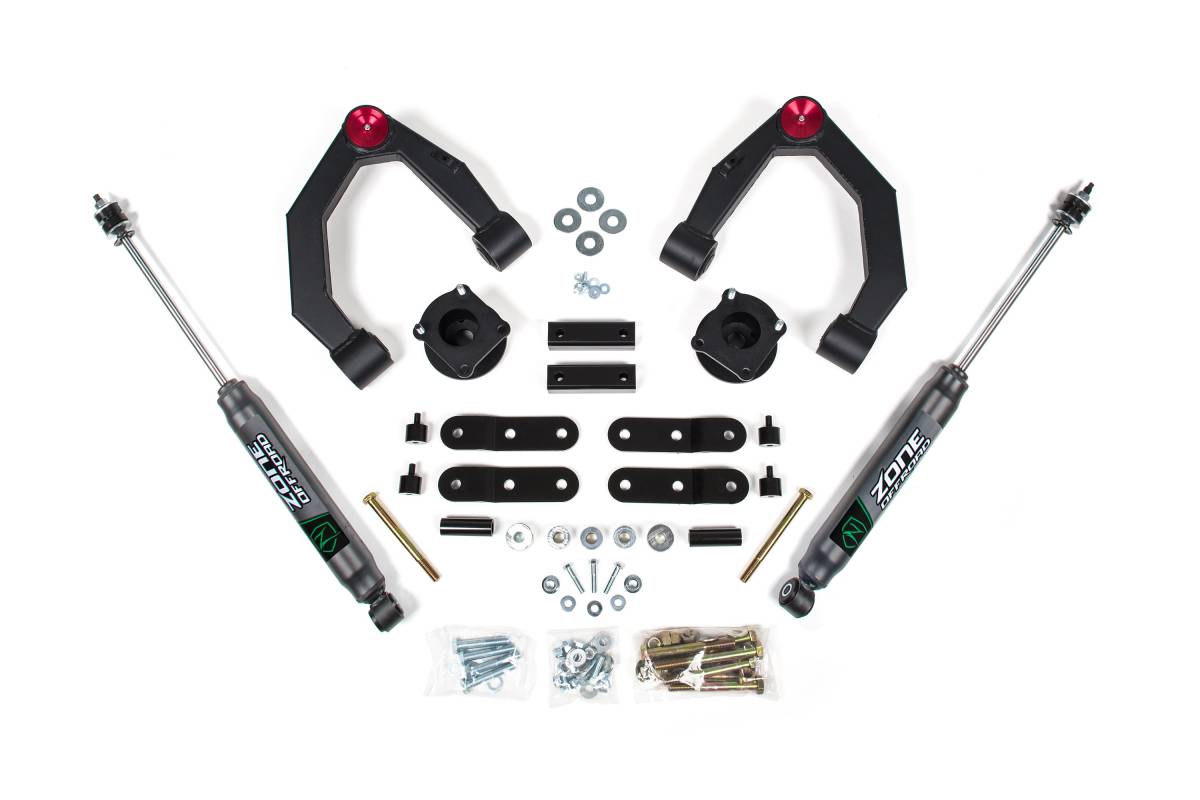

Engineered to take advantage of the Toyota Tundra's factory suspension design, this 3.5" lift kit delivers smooth on-road ride quality while increasing wheel travel for off-road use. At the core of the system is a pair of Adventure Series upper control arms featuring a repositioned ball joint mount for improved suspension travel, eliminating ball joint binding and premature wear. The arms are constructed from 1/8" steel with CNC-machined ball joint and bushing cups. MOOG ball joints come pre-installed for off-road durability. Factory-style rubber bushings are used at the frame mount for quiet, low-maintenance operation.

Top-mounted steel strut spacers provide front lift while retaining factory ride quality and simplifying installation by eliminating strut disassembly. Factory bump stops and the sway bar are relocated. Differential drop spacers with longer hardware maintain CV axle angles while retaining the factory front driveline. In the rear, replacement shackles provide 1" of lift to level the vehicle's stance.

Features

• Fully welded, heavy duty boxed upper control arms
• CNC-machined UCA bushing and ball joint cups
• OE-style rubber bushings and greasable-style ball joints for quiet, reliable, low-maintenance operation
• Improved UCA range of motion compared to stock arms
• Replaceable ball joints and bushings
• Top-mounted strut spacer retains factory ride quality and offers easy installation
• Differential relocation to correct CV shaft operating angle
• Long-lasting black powdercoat finish
• Limited Lifetime Warranty

Specifications

• Lift Height: 2–3.5"
• Front Lift Height: 3.5"
• Rear Lift Height: 1"
• Shocks Included: Yes
• UCA Material: 1/8" steel with CNC-machined ball joint and bushing cups
• Ball Joints: MOOG, pre-installed
• Frame Mount Bushings: OE-style rubber

Installation

• Estimated Time: 3–4 hours
• Difficulty: Moderate

Important Notes

• Does NOT work with TRD Pro Models.
• Differential drop components will not be required on RWD models.
• Do not combine with any other suspension lift.
