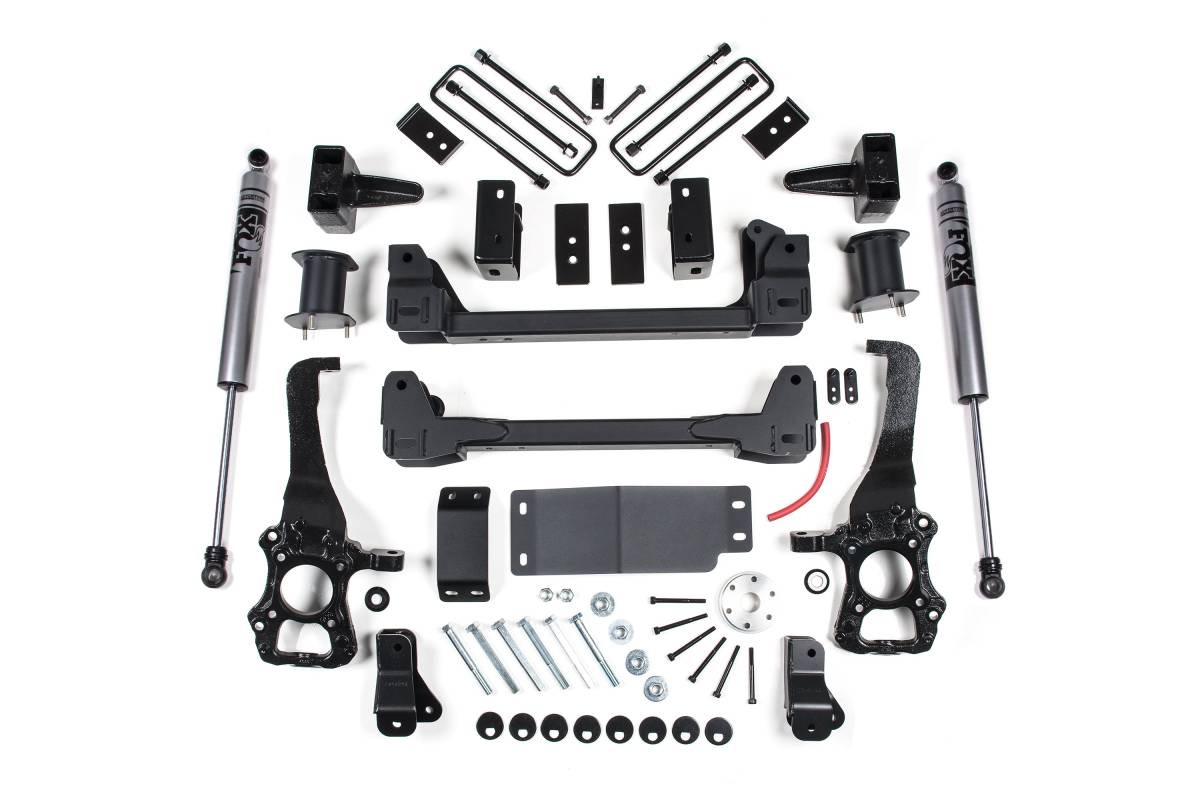

Configured with a Cross Member & Strut Spacer front lift and FOX Adventure Series rear shocks. Features nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a 2-inch diameter steel body with black powder coat finish.
- Front Lift Method: Cross Member & Strut Spacer
- Front Lift Height: 6"
- Rear Lift Method: Block
- Rear Lift Height: 4"
- Shocks Included: Yes
Overview

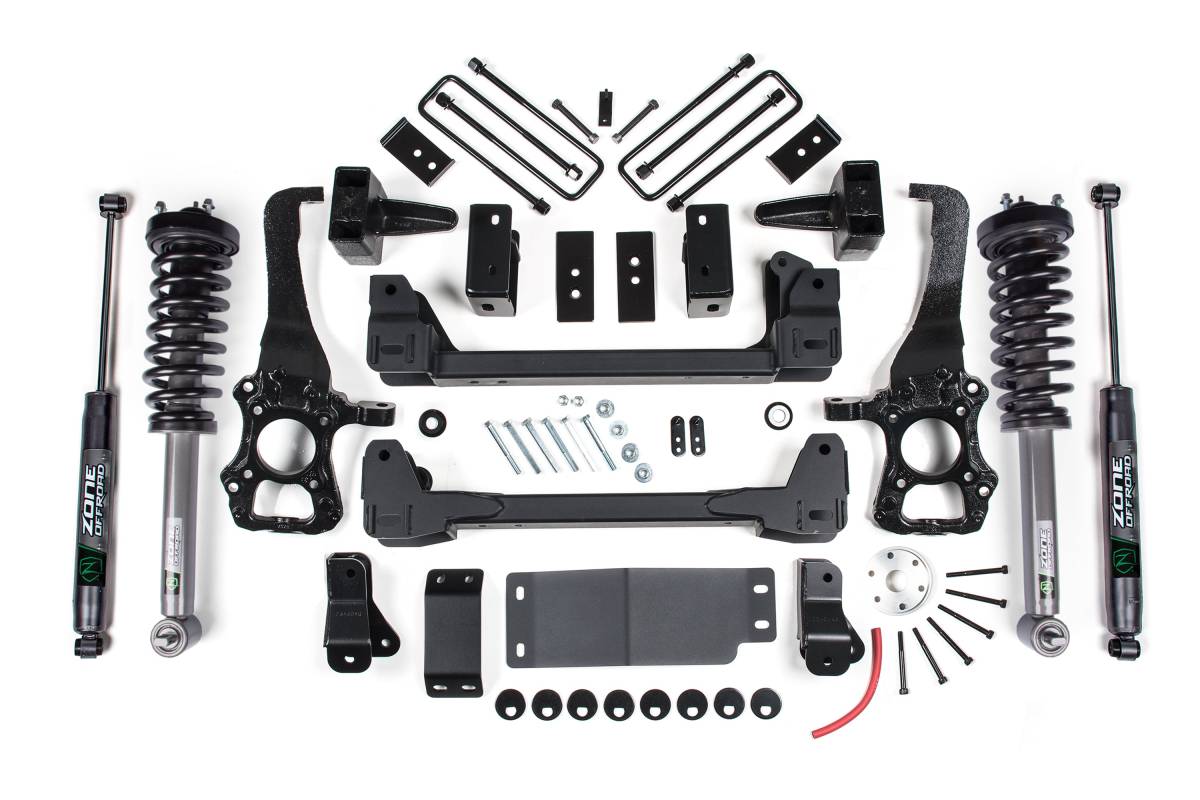

This 6-inch lift kit from Zone Offroad is designed for the 2015–2020 Ford F150 4WD. The kit includes high-strength crossmembers, ductile iron steering knuckles, strut spacers or loaded strut options, and a rear block kit to lift and level the stance. Clearance for up to 37-inch tires is achievable with this kit.
Features
- High-strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top-mounted strut spacers to provide lift and install easily
- Differential skid plate for improved off-road protection
- Rear lift blocks and U-bolts to lift and level the stance
- Sway bar, brake line, and bump stop relocation brackets to correct operating angles
Installation
- Estimated Time: 9 hours
- Difficulty: Difficult
Important Notes
- Requires frame bracket modification.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- Will NOT work on Diesel Models.
- 18" or larger diameter wheels required. Stock 17"/18" wheels cannot be reinstalled.
- Stock 20" wheels can be used with up to a 305/60R20 tire.
- 18" wheels with 5–5.5" of backspacing should be test fit prior to mounting tires to ensure proper tie rod end clearance.
- 37x12.50 tires may require some trimming.
