Front: OE strut spacers retain the factory front struts (Cross Member & Strut Spacer lift method, 4" front lift height). Rear: FOX 2.0 Adventure Series rear shocks paired with full replacement 3-inch rear coil springs (2–3" rear lift height). FOX 2.0 shocks feature an internal floating piston monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.
Overview

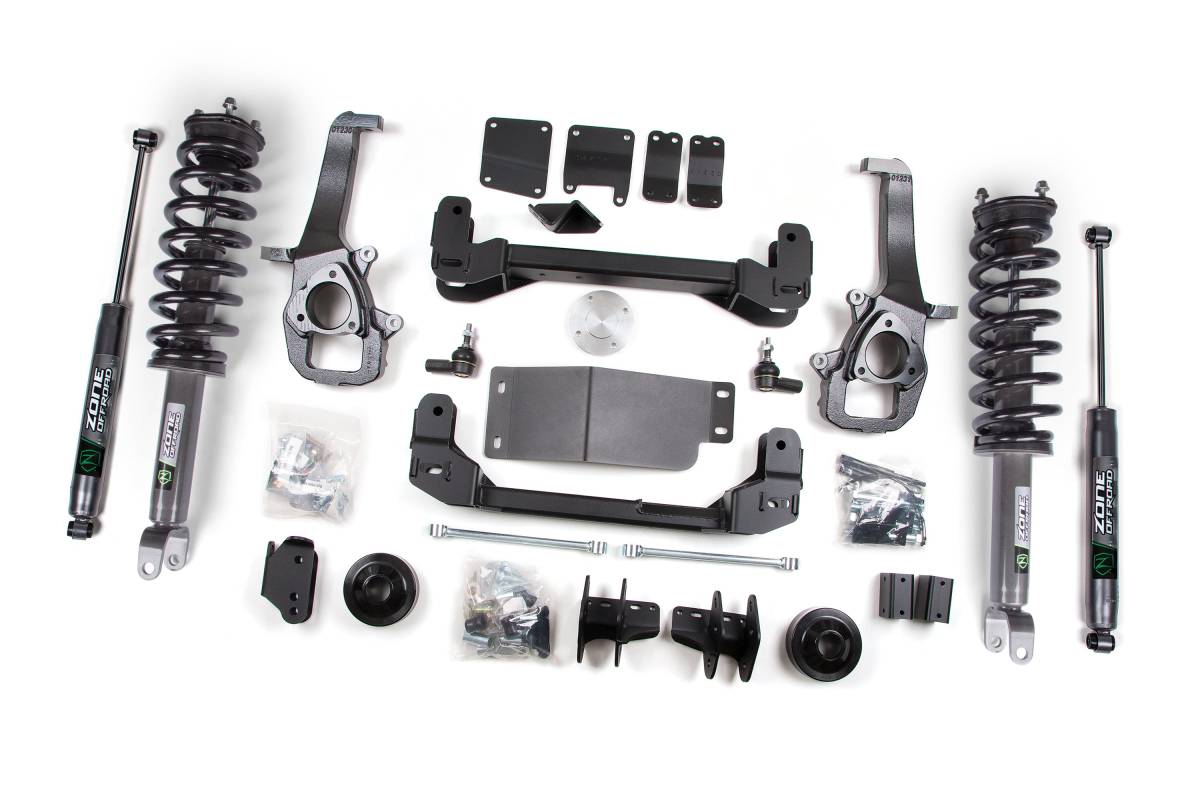

The Zone Offroad 4-inch Lift Kit for 2013–2018 Ram 1500 4x4 trucks delivers aggressive stance, larger tire clearance, and OE-quality engineering for both on- and off-road performance. Designed by Zone Offroad engineers in Coldwater, Michigan to OE standards, this system features heavy-duty steering knuckles cast in the USA, while all fabricated steel components are locally manufactured and powder coated for long-lasting durability and corrosion resistance. The 4-inch lift allows clearance for up to 35 x 12.50 tires on wheels with 4.5 inches of backspacing. Multiple configuration options are available: up front, choose OE strut spacers that retain the factory struts, or opt for Zone Nitro loaded struts that arrive preassembled for simplified installation. In the rear, select a 2-inch coil spacer to level the truck front to rear, or 3-inch replacement coil springs to retain some factory rake. Rear shock options include Zone Nitro twin-tube shocks or FOX 2.0 Adventure Series shocks for improved performance.
Features
- Corrects suspension, steering, and drive-line geometry for improved on-road handling and off-road performance
- Heavy-duty differential skid plate improves off-road protection
- High-strength, CNC machined replacement steering knuckles improve strength while correcting steering angles
- Top-mount strut spacers set ride height, maintain ride quality, and are easy to install
- Multiple rear lift heights available to achieve desired stance
- Steering knuckles cast in the USA; fabricated steel components locally manufactured and powder coated
- Fits up to 35 x 12.50 tires on wheels with 4.5 inches of backspacing
Specifications
- Front Lift Height: 4 inches
- Rear Lift Height: 2–3 inches depending on configuration (see variant details)
- Front Lift Method: Cross Member & Strut Spacer (strut spacer configs) or Strut Replacement (loaded strut configs)
- Rear Lift Method: Coil Spacer or Full Replacement Coil Springs depending on configuration
- Shocks Included: Yes
- Rear coil springs (where applicable): Progressive rate, shot peened, polyester-based powder coat finish for flexibility and durability
- Zone Nitro shocks: Nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, 2-inch diameter steel body, black powder coat finish
- FOX 2.0 Adventure Series shocks (where applicable): Internal floating piston (IFP) monotube design, large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, silver coated finish
Installation
- Estimated Installation Time: 9 hours
- Installation Difficulty: Moderate
Important Notes
- Does NOT work with all wheel drive (AWD) models.
- Will NOT fit adjustable air suspension (air-ride) equipped models.
- Does not fit eco-diesel models.
- Front drive shaft WILL fail prematurely.
- Stock 17" wheels CAN NOT be re-installed.
- Stock 20" wheels can be re-installed with factory tire.
