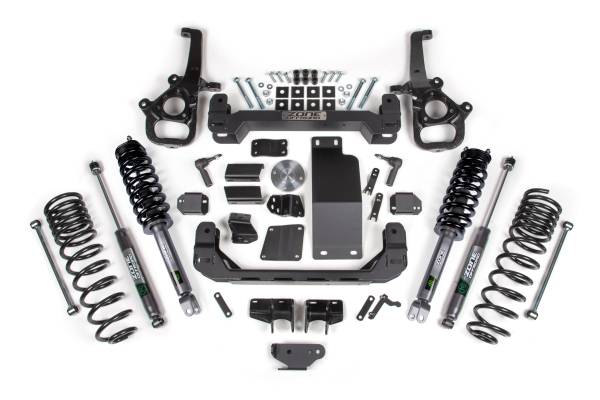

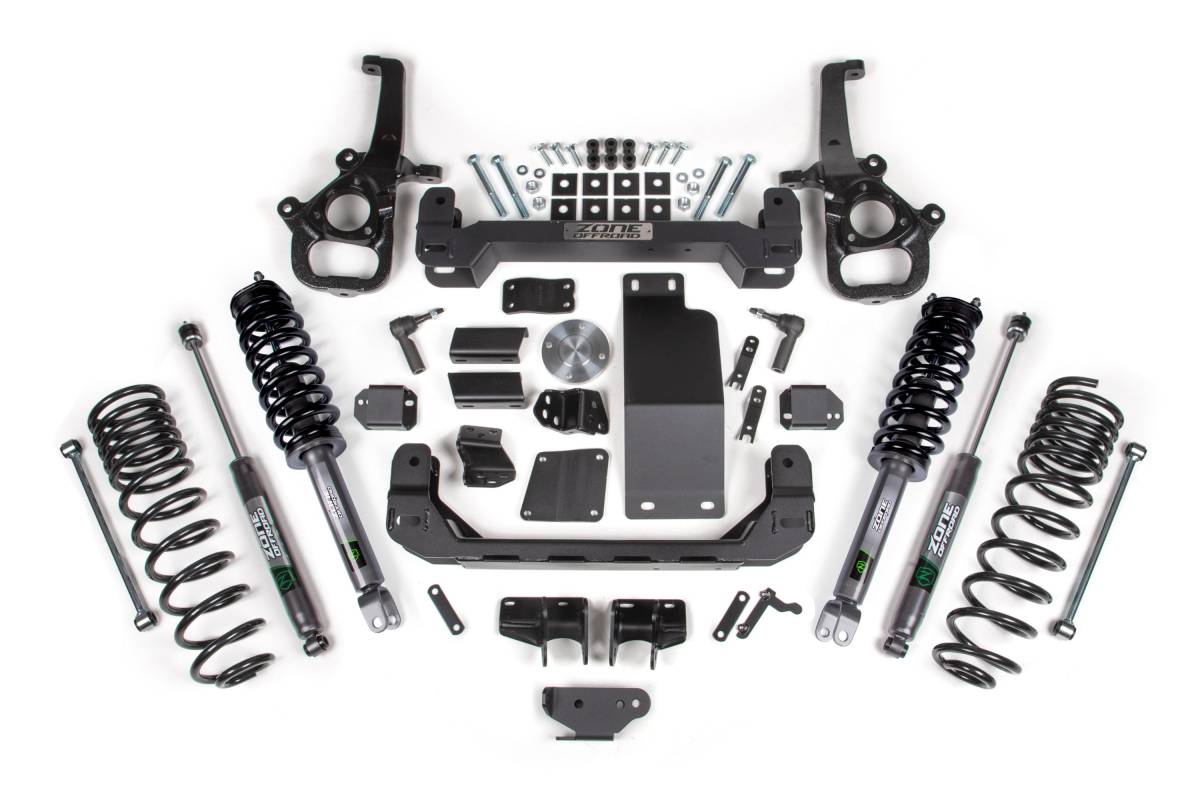

5 Inch Lift Kit | Ram 1500 Rebel (2025-2026) 4WD | Loaded Strut Front / Nitro Series Rear | Zone Offroad

This configuration uses a Loaded Strut Replacement front lift method paired with Nitro Series rear shocks. Front lift height is 5"; rear lift height is 4" via coil spring replacement. Overall lift range: 4–5.5".

Nitro Series shocks feature an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

Overview

The Zone Offroad 5" IFS Lift System is engineered specifically for the 2025+ RAM 1500 Rebel 4WD. Designed and built in the USA, this kit improves stance and creates clearance for larger tires while correcting suspension, steering, and driveline geometry for improved on-road handling and off-road capability. Every kit is backed by Zone Offroad's Factory Protection Plus program, which includes a Limited Lifetime Warranty, ESC system compatibility, and a 5-year/100,000-mile drivetrain warranty.

Features

• Corrects suspension, steering, and driveline geometry for improved on-road handling and off-road performance
• Heavy-duty differential skid plate improves off-road protection
• High-strength, CNC machined replacement steering knuckles improve strength while correcting steering angles
• Top mount strut and preload spacers set ride height and maintain ride quality
• Rear coil springs achieve a leveled stance while maintaining ride quality and load capacity
• Built in the USA to high quality standards
• Backed by Factory Protection Plus: Limited Lifetime Warranty, ESC system compatibility, and 5-year/100,000-mile drivetrain warranty

Specifications

• Front Lift Height: 5"
• Rear Lift Height: 4"
• Overall Lift Range: 4–5.5"
• Rear Lift Method: Coil Spring
• Shocks Included: Yes

Installation

• Estimated Time: 8–10 hours
• Difficulty: Moderate
• Special Tools Required: Reciprocating Saw

Important Notes

• Will NOT fit models equipped with the Thermal Axle option (reference build code DSK-P).
• This kit will NOT work on Diesel models.
• Does NOT work for models with factory rear airbag suspension.
• Stock 20-inch wheels can be reinstalled with factory tire size.
• For wheels with maximum recommended backspace, please test fit on the vehicle before mounting and balancing tires.
