Rear lift is achieved via a 2-inch block kit without overload, suited for trucks without a factory overload leaf spring. Shocks included: Nitro Series — nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, black powder coat finish, and a 2-inch diameter steel body with internal floating piston (IFP).
Overview

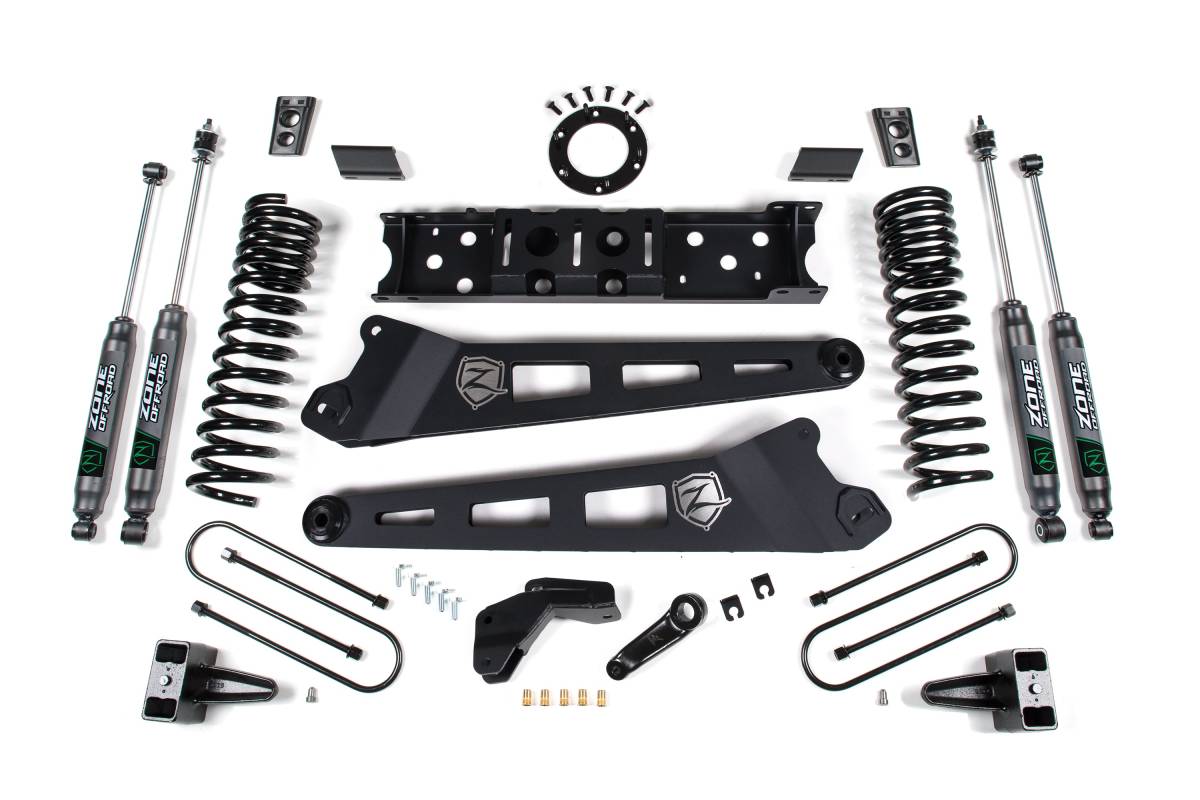

This 4-inch lift kit from Zone Offroad is engineered for the 2019–2024 Ram 3500 4WD (gas models). The kit includes full-length coil springs, high-strength radius arms, steering correction components, and a rear block lift to level the truck's stance. Clearance for up to 37-inch tires is provided. Rear lift height and shock options are configurable to suit your truck's specific setup and load requirements.
Features
- High-strength progressive rate front coil springs for improved ride quality on any terrain
- Heavy duty 1/4-inch steel, laser cut, internally gusseted radius arms for increased strength, greater ground clearance, and corrected caster
- HD track bar relocation bracket to correctly position the front axle under the truck
- Forged drop pitman arm to correct steering angles
- Choice of Nitro Series gas or FOX 2.0 Adventure Series IFP gas shocks for improved ride and off-road performance
- Rear block lift available in 2-inch or 3-inch height, with or without overload, to accommodate different factory leaf spring configurations
- Provides clearance for up to 37-inch tires
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 4 inches
- Rear Lift Method: Block
- Rear Lift Height: 2 inches or 3 inches (variant dependent)
- Shocks Included: Yes
Installation
- Estimated Time: 6 hours
- Difficulty: Difficult
- Tools Required: Cut-off wheel or equivalent, metric/standard socket wrench set, drill and bit set, pitman arm puller, S-shaped wrenches
Important Notes
- Will not fit Cab and Chassis models
- Will NOT fit rear air-ride equipped models
- Gas models only
- Does not fit vehicles with a Manual Shift Transfer Case
- Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included with kit)
- Even with included exhaust spacers, some vehicles may require slight exhaust modification — see instructions for details
