Configured for trucks without a factory overload spring, this variant uses a Block & Add-A-Leaf rear lift method delivering 4" of rear lift height, paired with FOX 2.0 Adventure Series shocks for enhanced off-road performance and control.
- Rear Lift Method: Block & Add-A-Leaf
- Rear Lift Height: 4"
- Front Lift Height: 6" via Coil Spring
- Shocks: FOX 2.0 Adventure Series (included)
Overview

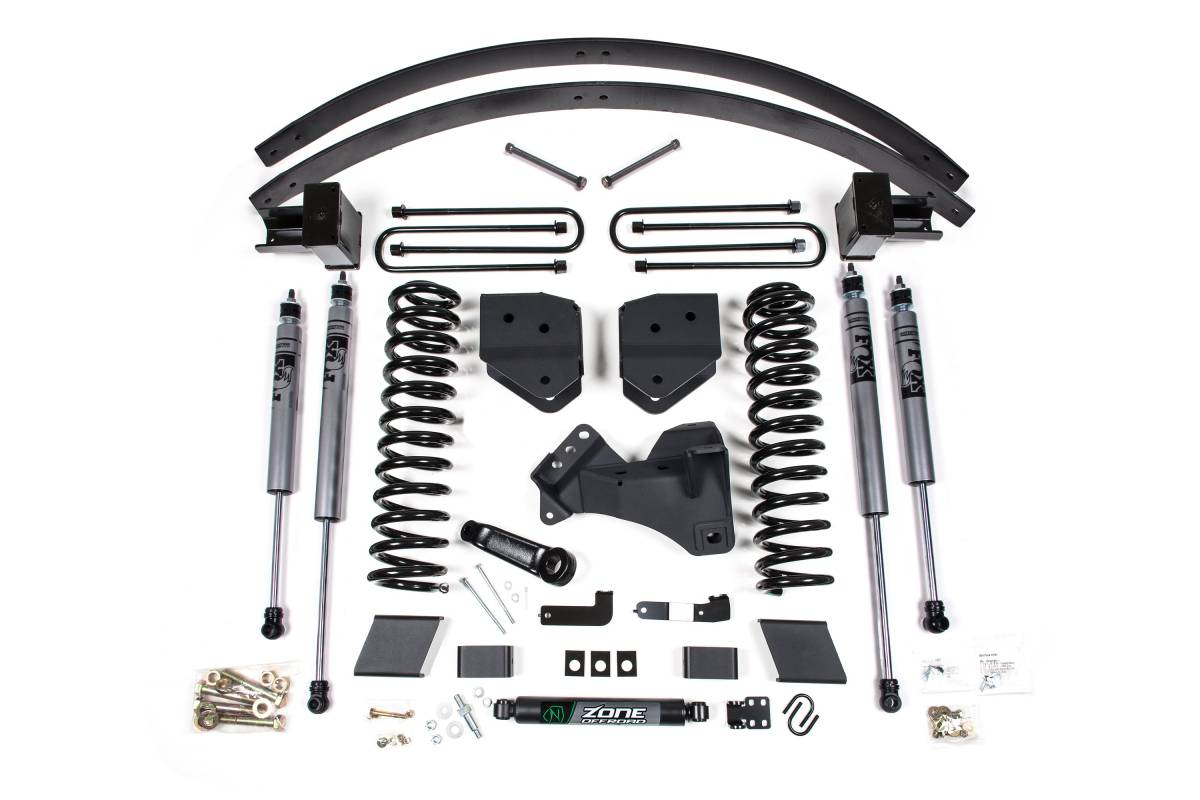

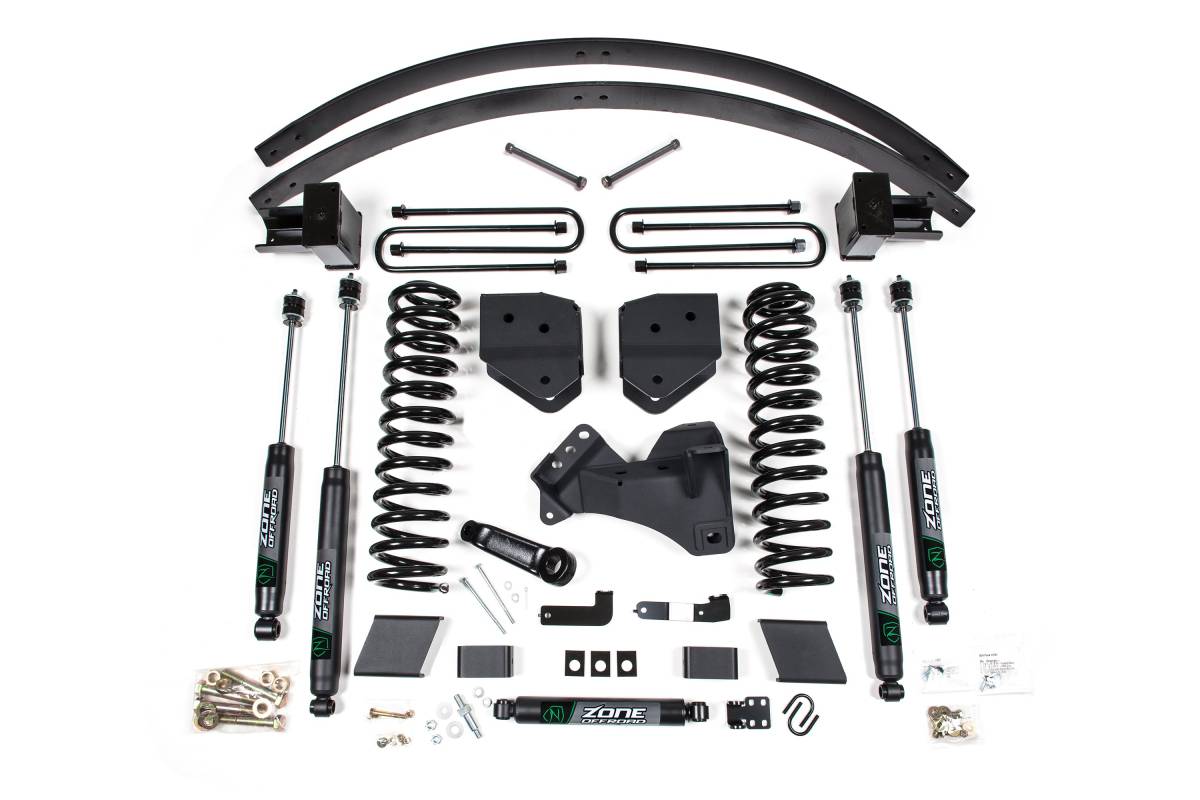

This 6" lift kit from Zone Offroad is designed for 2017–2019 Ford F250/F350 Super Duty 4WD gas trucks. The kit includes all components needed to reliably lift your truck and supports fitment of up to 37" tires. It features front coil springs, radius arm drop brackets, steering correction hardware, and rear lift blocks or optional add-a-leaf packs to achieve the desired stance and performance. Shock options include Nitro Series Gas Shocks or FOX 2.0 Adventure Series for greater performance and control. All Zone lift kits are backed by Factory Protection Plus, which includes a 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Features
- High-strength front coil springs to improve ride quality
- Radius arm drop brackets to correct caster and maintain suspension geometry
- Forged pitman arm and track bar relocation bracket to correct steering angles and re-center the front axle
- Bump stop relocation, sway bar relocation, and brake line relocation to maintain factory-like operating angles
- Replacement 3" rear lift block for a leveled stance, or optional upgrade to rear add-a-leaf for 4" net lift and improved performance
- Backed by Factory Protection Plus: 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 6"
- Rear Lift Method: Block (with factory overload) or Block & Add-A-Leaf (without factory overload)
- Rear Lift Height: 3" (with factory overload) or 4" (without factory overload)
- Shocks Included: Yes
Installation
- Estimated Installation Time: 4–6 hours
- Difficulty: Moderate
- Tools Required: Basic hand tools, hydraulic floor jack, and jack stands
Important Notes
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory/original equipment tire size.
- Check your rear springs to determine if your truck is equipped with a standard, 2-leaf main, or heavy payload 3-leaf main spring pack with an overload spring — select the appropriate rear lift option accordingly.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
