This configuration includes FOX Adventure Series rear shocks. FOX Adventure Series shocks feature a nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, a black powder coat finish, and a 2-inch diameter steel body.
Overview

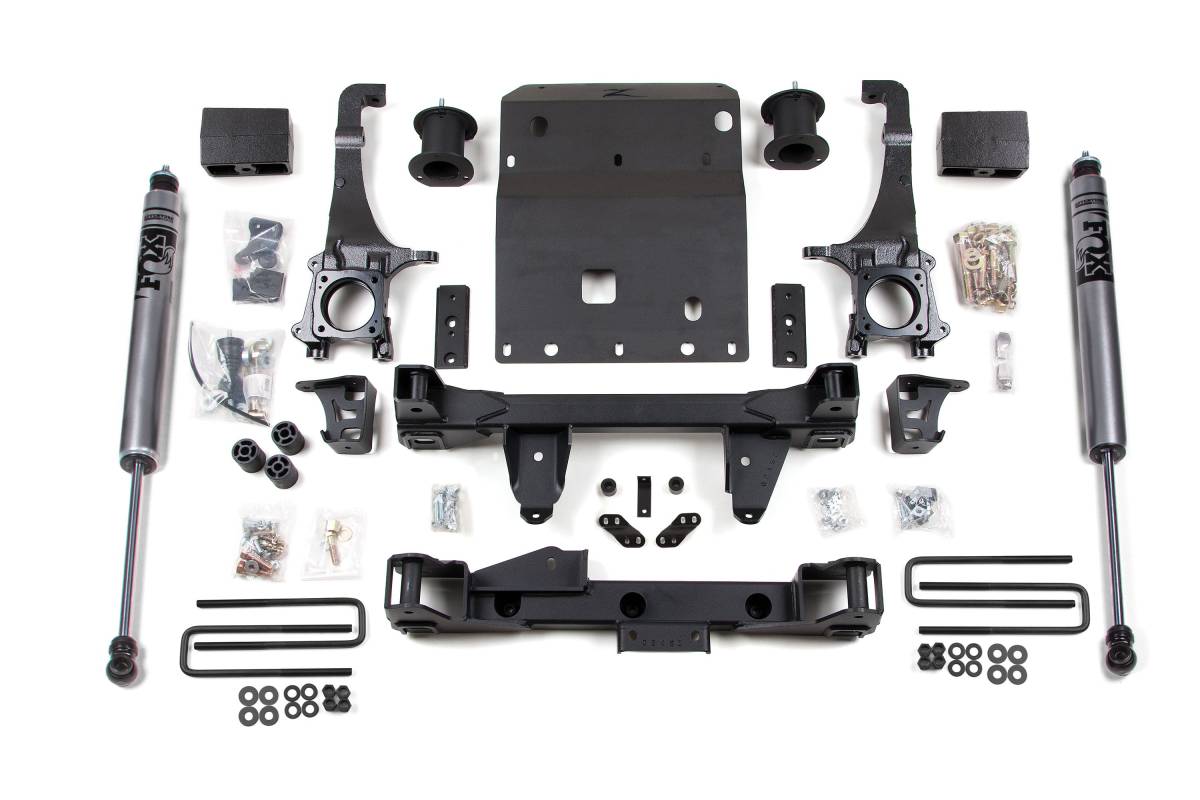

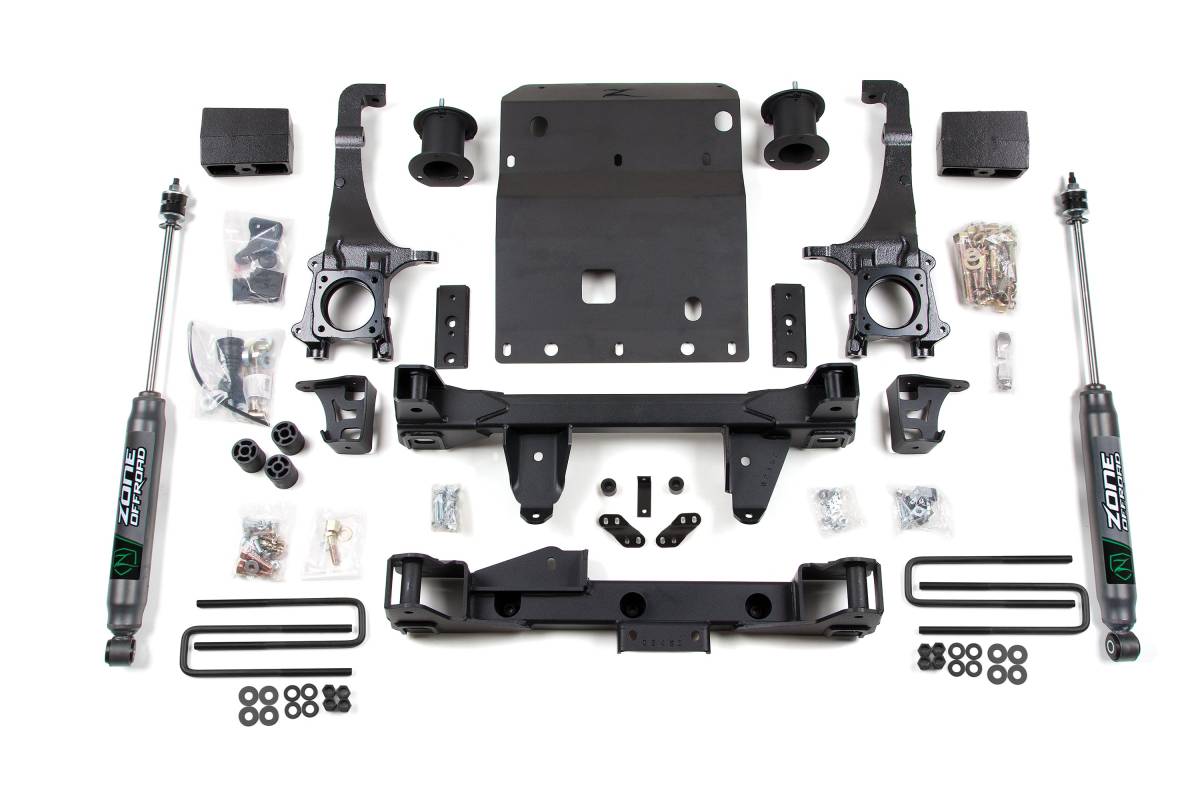

This 4-inch lift kit is designed for serious off-road use on 2005–2015 Toyota Tacoma 4WD models. It combines top-mounted strut spacers and high-strength crossmembers for the front suspension with cast blocks for the rear, providing 4 inches of front lift and 3 inches of rear lift. The kit accommodates tires up to 33 inches in diameter (with some trimming required).
Features
- High-strength crossmembers to correct lower control arm positioning
- Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top-mounted strut spacers to provide lift and install easily
- Full-width belly skid plate for improved off-road protection
- Rear lift blocks and U-bolts to lift and level the stance
- Bump stop, sway bar, and brake line relocation brackets to correct operating angles
- Rear shocks included
Specifications
- Front Lift Method: Cross Member & Strut Spacer
- Front Lift Height: 4 inches
- Rear Lift Method: Block
- Rear Lift Height: 3 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 7 hours
- Installation Difficulty: Difficult
Important Notes
- System will also work on RWD PreRunner models.
- Will NOT work on TRD Pro Models.
- 33x12.50 tires require trimming. See installation instructions for more information.
- Factory wheels cannot be reinstalled with this lift kit; 18-inch or larger aftermarket wheels are required.
- Follow recommended wheel/tire specifications to ensure proper fitment and minimize the need for trimming.
