4.5 Inch Lift Kit | 1984-2001 Jeep Cherokee XJ | Dana 35 Rear Axle | FOX 2.0 Adventure Series Shocks | Zone Offroad

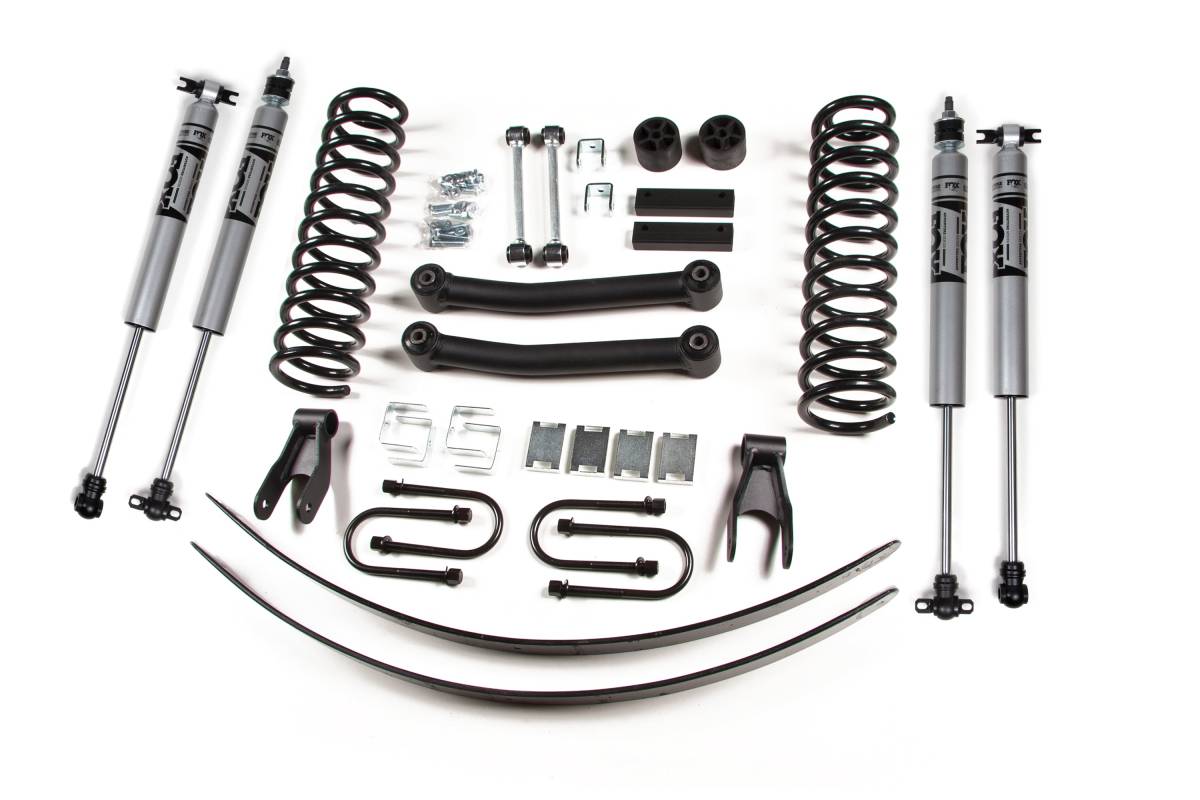

Configured for the Dana 35 rear axle (2-3/4-inch I.D. U-bolt) and includes FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a 2-inch diameter steel body with black powder coat finish.

Overview

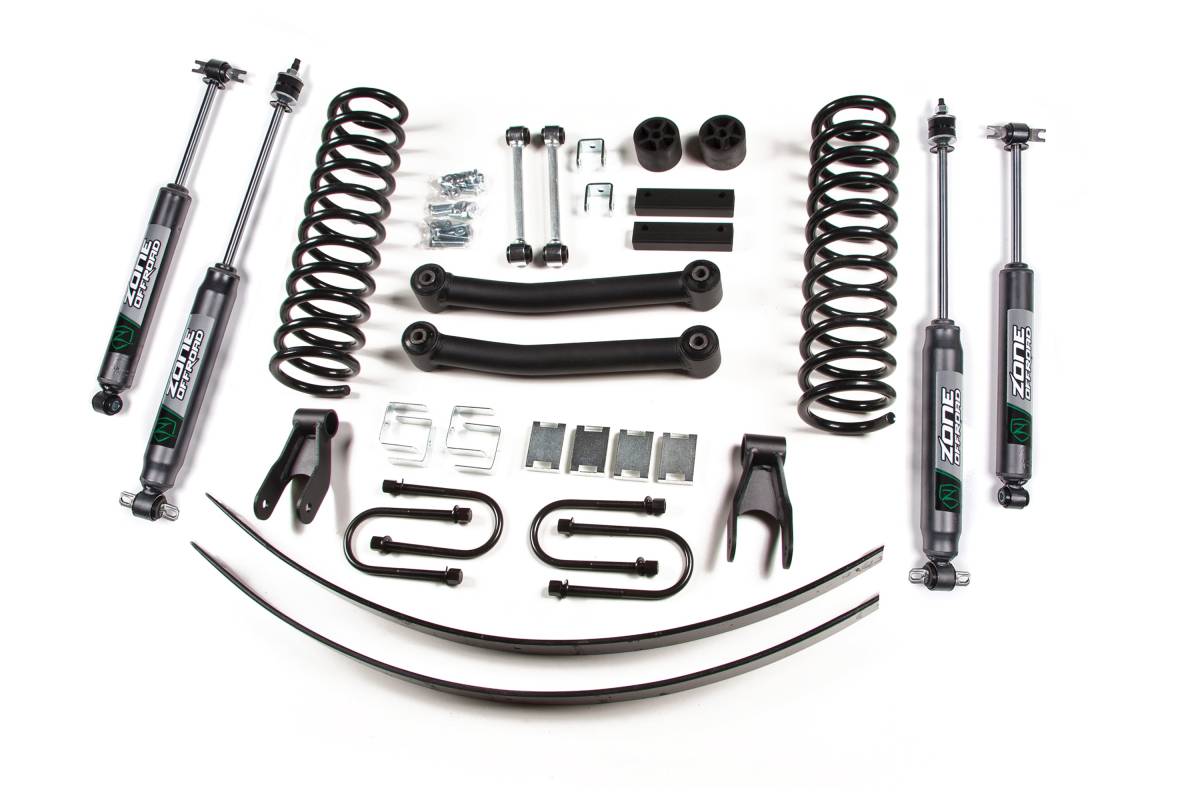

This 4.5-inch Lift Kit is designed for the 1984–2001 Jeep Cherokee (XJ), providing the ground clearance and wheel travel needed to fit 32-inch tires on your 4WD XJ. Developed by off-road enthusiasts, the kit addresses front lift, rear stance, caster correction, and driveline geometry in a single package.

Features

• Front replacement coil springs maintain ride quality and improve articulation
• High-strength lower control arms with rubber bushings add strength and correct caster
• Extended-length sway bar links and brake line brackets correct operating angle
• Transfer case drop bracket corrects driveline angle
• Rear long add-a-leafs and HD shackles lift and level the rear stance

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 4.5 inches
• Rear Lift Method: Add-A-Leaf & Shackles
• Rear Lift Height: 4.25 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 7 hours
• Installation Difficulty: Moderate

Important Notes

Check Rear Axle Diameter: The XJ was manufactured with different rear axles. You'll need to identify yours to complete an order. To tell the difference, measure the inner diameter (I.D.) of your rear U-bolts. The Chrysler 8.25 rear axle uses a 3" I.D. U-bolt and the Dana 35 rear axle requires a 2-3/4" I.D. U-bolt.
