Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a clear anodized finish.
Overview

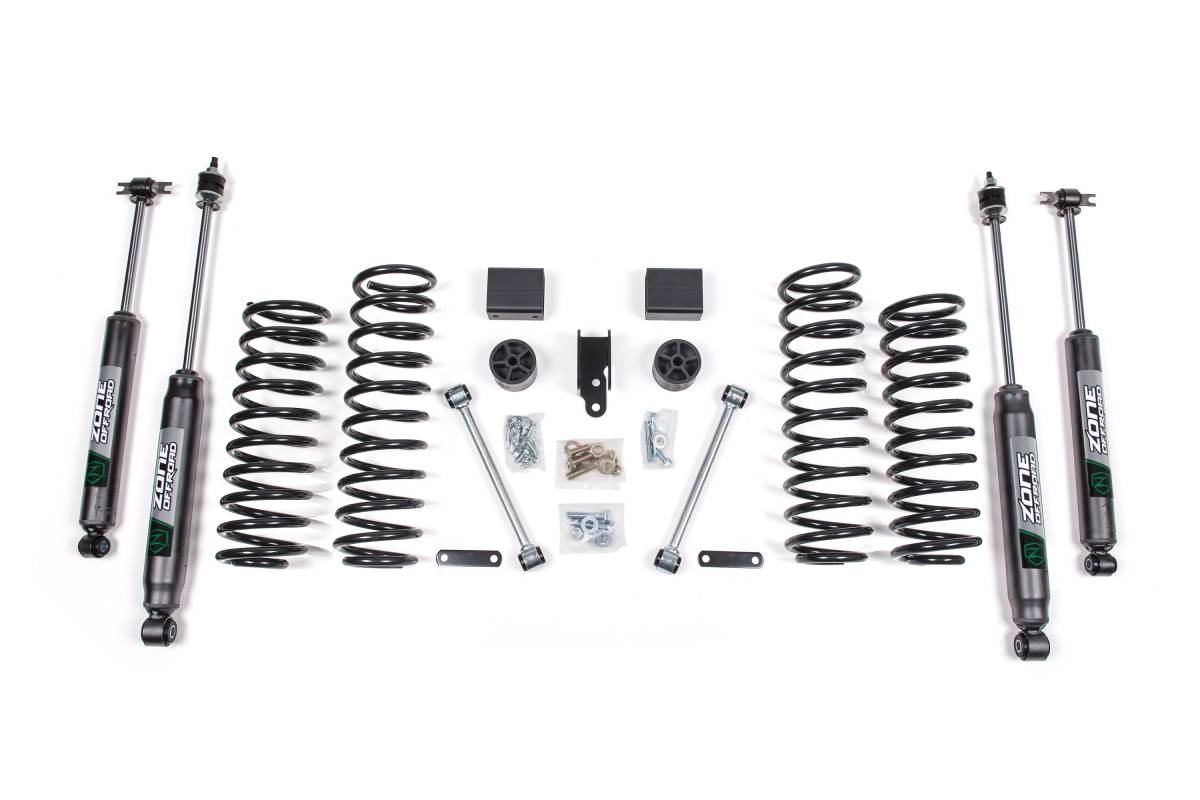

This 3-inch Lift Kit is designed for 2012–2018 4WD 2-door Jeep Wrangler JKs. It increases droop and wheel travel while providing enough lift to accommodate 35-inch tires. Full-length replacement coil springs and heavy-duty components are engineered to handle demanding off-road use.
Features
- Brake line relocation brackets increase wheel travel and allow use of factory brake lines
- Bump stop extensions properly limit up-travel, protecting your vehicle
- Full-length replacement coil springs add ride height while maintaining ride quality
- Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll
- Rear track bar bracket correctly positions rear axle under vehicle
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 3 inches
- Rear Lift Method: Coil Spring
- Rear Lift Height: 3 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 4.5 hours
- Installation Difficulty: Moderately Easy
Important Notes
- Stock Control Arms: Alignment cam locks will add 2 degrees of caster when used on stock length control arms, which will better align your wheels.
- Wheels / Tires: Factory wheels cannot be reinstalled with lift kit due to rear sway bar interference. Follow recommended wheel/tire specifications for proper clearance.
