4.5 Inch Lift Kit w/ Springs | 1984-2001 Jeep Cherokee XJ | Dana 35 Rear Axle | FOX 2.0 Adventure Series Shocks | Zone Offroad

Configured for the Dana 35 rear axle (2-3/4-inch I.D. U-bolt) and includes FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, black powder coat finish, and a 2-inch diameter steel body.

Overview

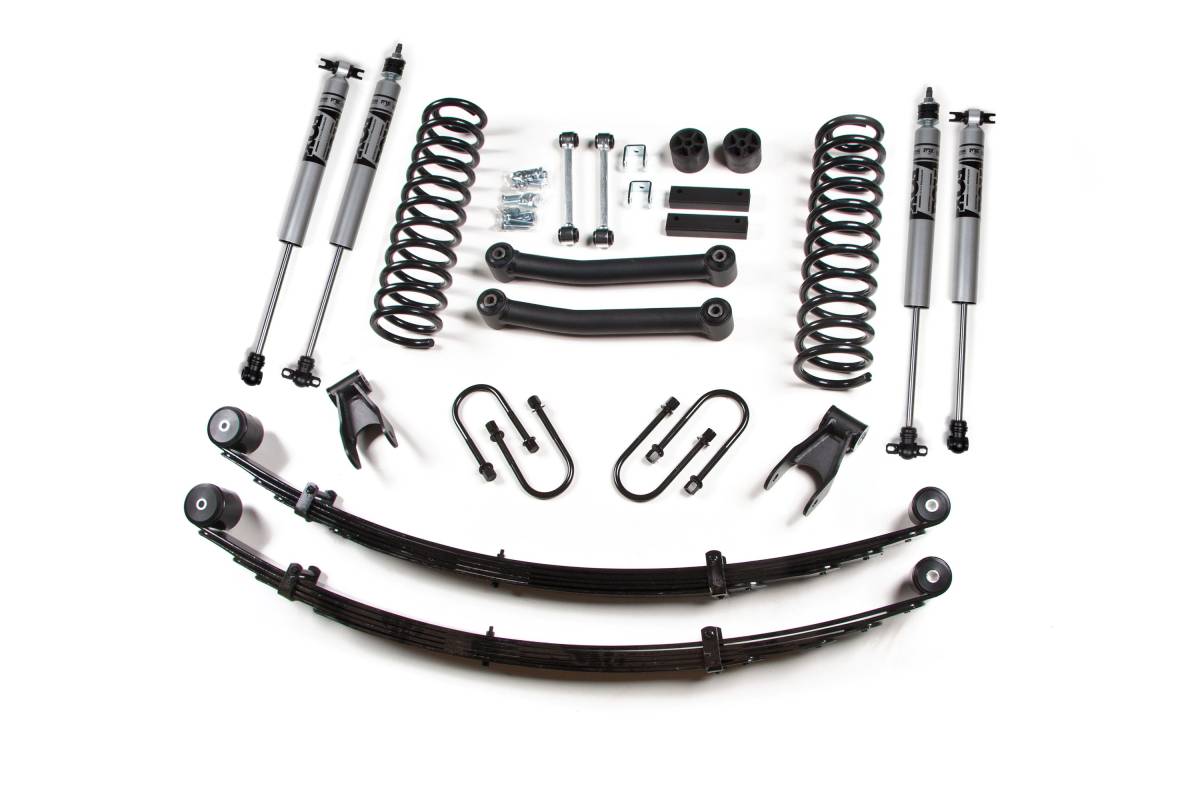

This 4.5-inch Lift Kit with rear leaf springs is designed for the 1984–2001 Jeep Cherokee (XJ). It provides the ground clearance and wheel travel needed to fit 32-inch tires on your 4WD XJ. Designed by off-road enthusiasts for off-road enthusiasts.

Features

• Brake line relocation brackets allow re-use of factory brake lines
• Full-length replacement coil springs add lift height while maintaining ride quality
• Heavy-duty lower control arms improve strength and articulation while correcting caster
• Heavy-duty replacement front leaf springs provide lift and great ride quality
• Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll
• High-strength, black e-coated U-bolts
• High-strength shackles provide lift and improve articulation
• Transfer case drop kit included to correct rear driveline angle and allow use of factory rear driveshaft

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 4.5 inches
• Rear Lift Method: Leaf Spring
• Rear Lift Height: 4 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 5.5 hours
• Installation Difficulty: Moderate

Important Notes

Leaf springs not designed for excess additional cargo weight; lower ride height may result. Check Rear Axle Diameter: The XJ was manufactured with different rear axles. You'll need to identify yours to complete an order. To tell the difference, measure the inner diameter (I.D.) of your rear U-bolts. The Chrysler 8.25 rear axle uses a 3-inch I.D. U-bolt and the Dana 35 rear axle requires a 2-3/4-inch I.D. U-bolt.
