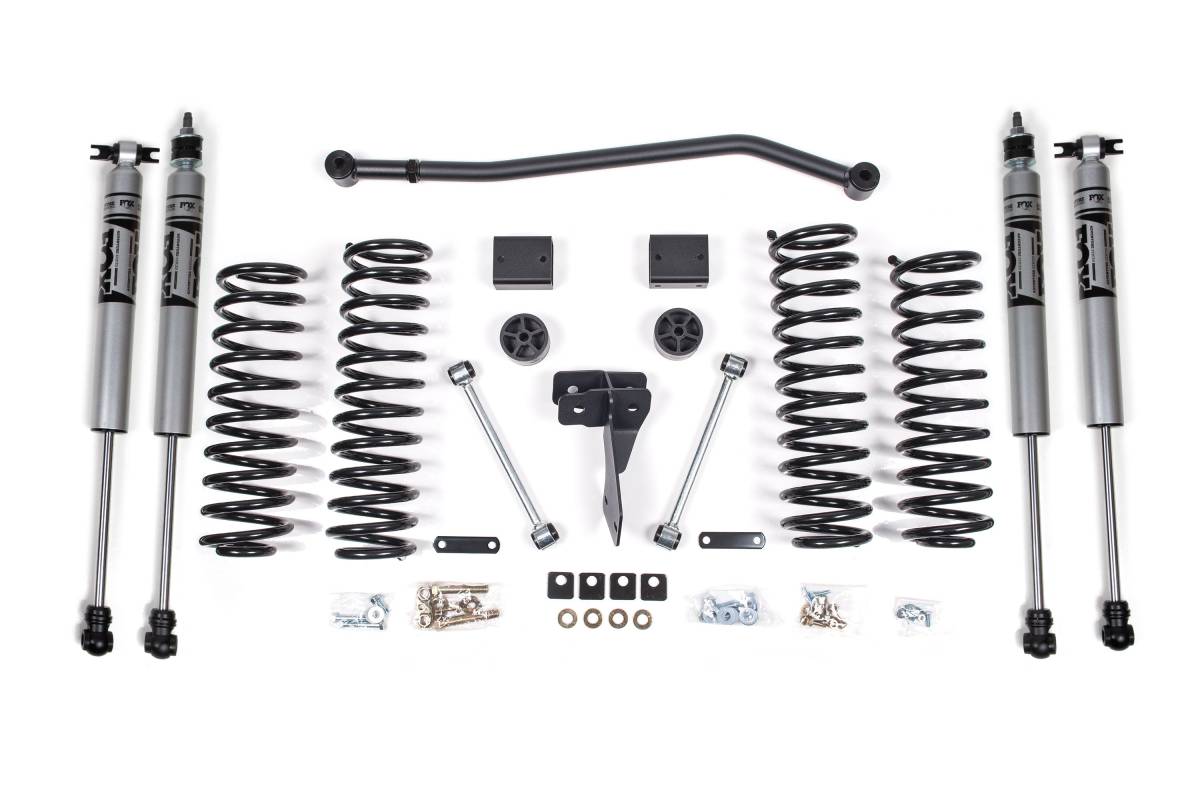

Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, black powder coat finish, and a 2-inch diameter steel body.
Overview
This 4-inch suspension lift kit is designed for 2007–2011 Jeep Wrangler JK 4-Door 4WD models. It provides the ground clearance and wheel travel needed for off-road use while maintaining on-road handling. The kit is designed to clear 35-inch tires.
Features
- Brake line relocation brackets increase wheel travel and allow use of factory brake lines.
- Bump stop extensions properly limit up-travel, protecting your vehicle.
- Full-length replacement coil springs add ride height while maintaining ride quality.
- Heavy-duty, adjustable front track bar re-centers the front axle and adds strength.
- Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll.
- Lower cam washers correct axle caster for front end alignment.
- Rear track bar bracket correctly positions the rear axle under the vehicle.
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 4 inches
- Rear Lift Method: Coil Spring
- Rear Lift Height: 4 inches
- Shocks Included: Yes
Installation
- Estimated Installation Time: 4.5 hours
- Installation Difficulty: Moderately Easy
Important Notes
- 2012–18 models using the stock front driveshaft require exhaust extension kit J5305.
- Factory wheels cannot be reinstalled with this lift kit due to rear sway bar interference.
- Follow recommended wheel/tire specifications for proper clearance.
