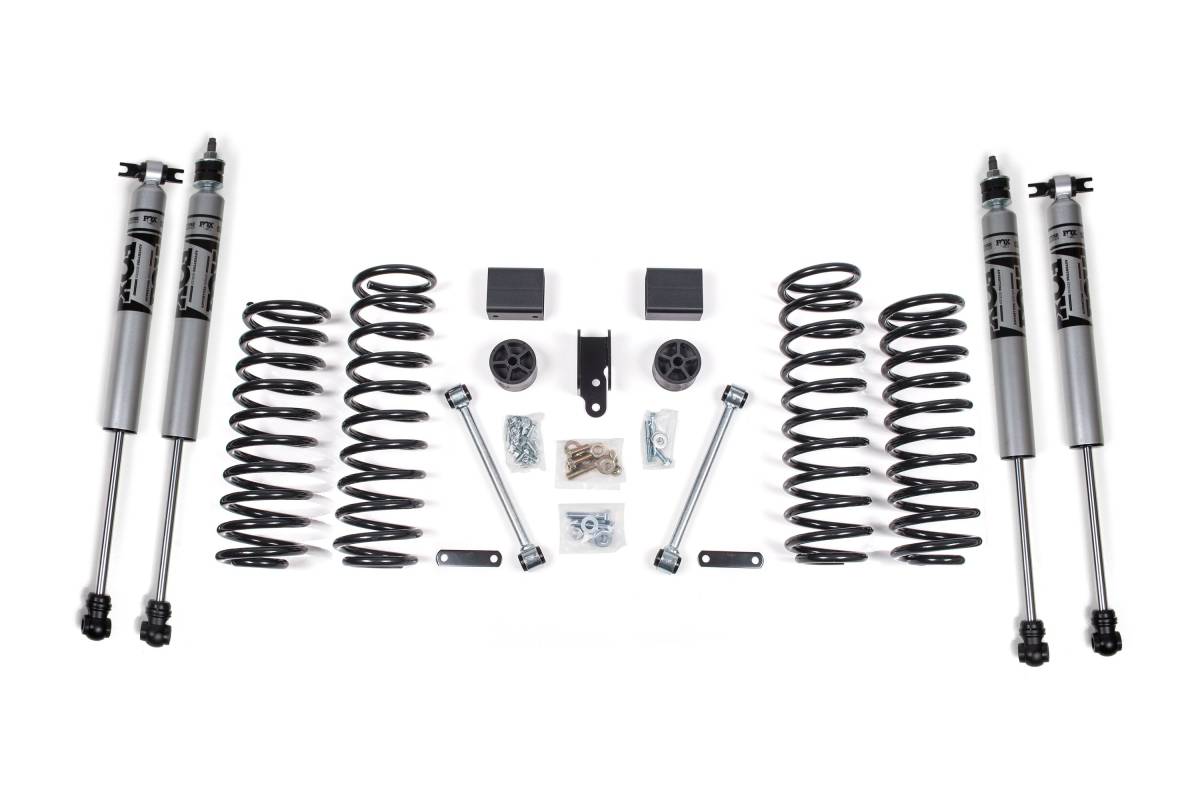

Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a 2-inch diameter steel body with black powder coat finish.
Overview
This 3-inch lift kit is designed for 4WD 2007–2011 Jeep Wrangler (JK) 4-Door models. It provides clearance for 35-inch tires and includes heavy-duty coil spacers that deliver a significant improvement in both ground clearance and wheel travel.
Features
- Brake line relocation brackets increase wheel travel and allow use of factory brake lines
- Bump stop extensions properly limit up-travel, protecting the vehicle
- Full-length replacement coil springs add ride height while maintaining ride quality
- Heavy-duty, extended-length sway bar links improve operating angle for reduced body roll
- Rear track bar bracket correctly positions the rear axle under the vehicle
Specifications
- Front Lift Method: Coil Spring
- Front Lift Height: 3 inches
- Rear Lift Method: Coil Spring
- Rear Lift Height: 3 inches
- Shocks Included: Yes
Installation
- Estimated Time: 4.5 hours
- Difficulty: Moderately Easy
- Tools Required: Standard wrenches
Important Notes
- Compatible with Rubicon models.
- When alignment cam locks are used on stock-length control arms, they will add 2 degrees of caster to better align the wheels.
- Factory wheels cannot be reinstalled with this lift kit due to rear sway bar interference.
- Follow recommended wheel and tire specifications for proper clearance.
