2 Inch Leveling Kit | Ford F250/F350 Super Duty (2017-2025) 4WD | w/ FOX 2.0 Adventure Series Shocks | Zone Offroad

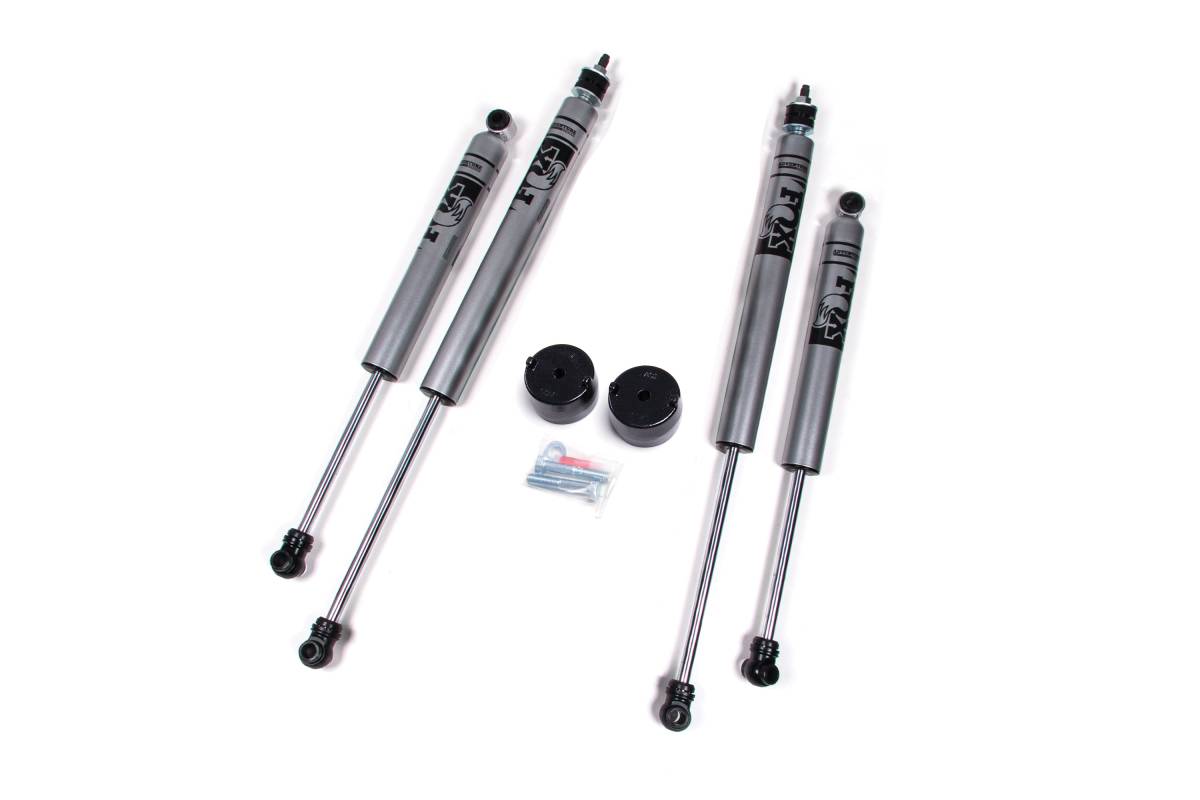

Includes the leveling kit with FOX 2.0 Adventure Series shocks for enhanced on- and off-road performance.

• Front Lift Method: Coil Spacer
• Front Lift Height: 2"
• Rear Lift Height: 0" (stock)
• Shocks Included: Yes — FOX 2.0 Adventure Series
• Nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• Self-lubricating seals
• Black powder coat finish
• 2-inch diameter steel body

Overview

This 2-inch leveling kit for the 2017–2025 Ford F250/F350 Super Duty 4WD uses bolt-in lower coil mount spacers that attach directly to the axle to deliver a leveled stance and additional clearance for larger tires. The lower coil mount spacer design provides a strong, secure mount while maintaining factory ride quality and handling characteristics.

Features

• 100% bolt-on design for easy installation

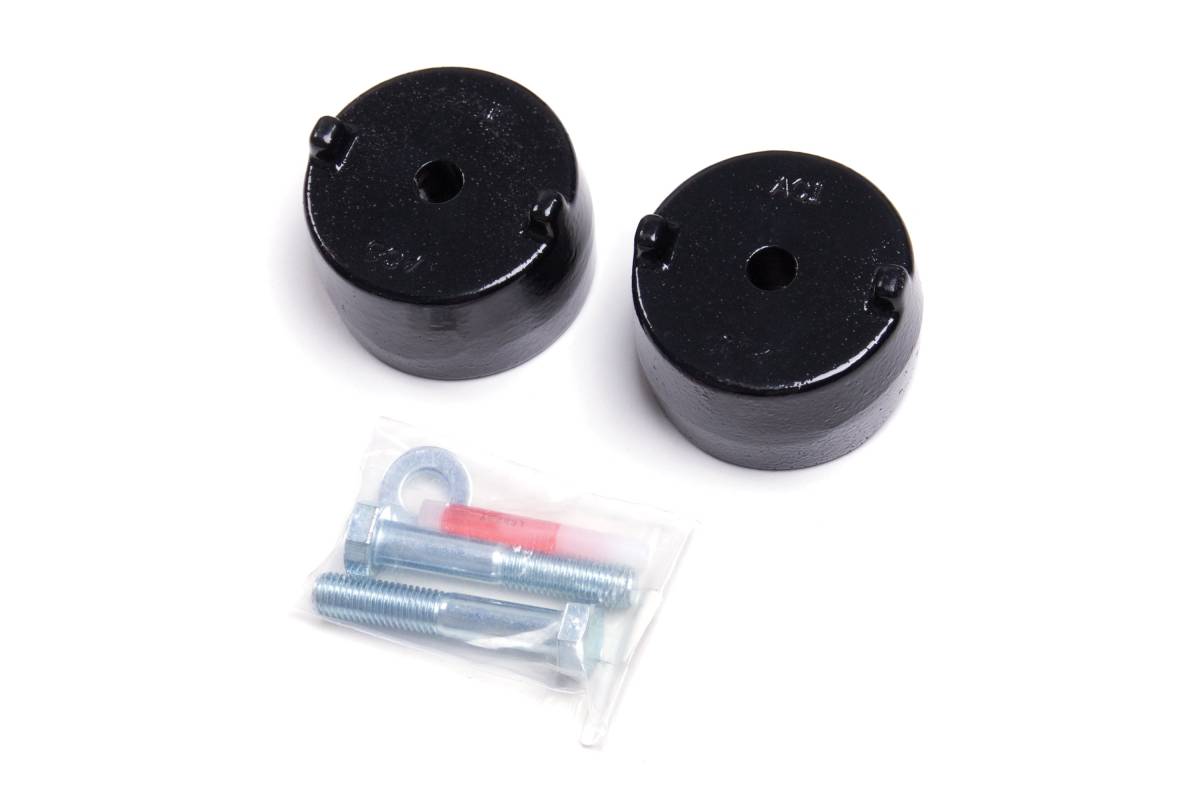

• Lower coil mount spacer bolts directly to axle for a strong, secure mount
• Maintains factory ride quality and handling characteristics
• Detailed step-by-step instructions and Zone Offroad decals included
• Proudly made in the USA

Specifications

• Front Lift Method: Coil Spacer
• Front Lift Height: 2"
• Rear Lift Method: Stock
• Rear Lift Height: 0"

Installation

• Estimated Installation Time: 2.5 hours
• Difficulty: Easy
• Tools Required: Standard wrenches

Important Notes

• While not required, F5252 adjustable track bar bracket is recommended to recenter axle once leveled.
• While not required, F5905 alignment cams will help correct caster for improved handling.
• Will fit gas and diesel models.
• Will not fit 2WD models.
• Will NOT work with trucks equipped with Onboard Scales and radius arm mounted ride height sensors.
• Fits SRW models only.
• 2024+ Ford Super Duty Only: This kit includes ball joint cams to achieve optimum performance both on and off-road. For vehicles equipped with a non-selectable passenger side hub-lock on the front axle along with these ball joint cams, it is required to replace the non-selectable with a selectable hub-lock. Part number (PC3Z-3B396-A) is needed to prevent a grinding noise from the front axle for these applications. If your vehicle is not factory equipped with them, you may also need vacuum lines (3C125-A and/or 3C124). You can reference Section 307-07A of the Workshop Manual or Bulletin SSM 52423 for more information.
• 2023+ Models: Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
