Configured with Nitro Series shocks front and rear. Nitro Series shocks feature an internal floating piston (IFP) monotube design with a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting clear anodized finish.
Overview

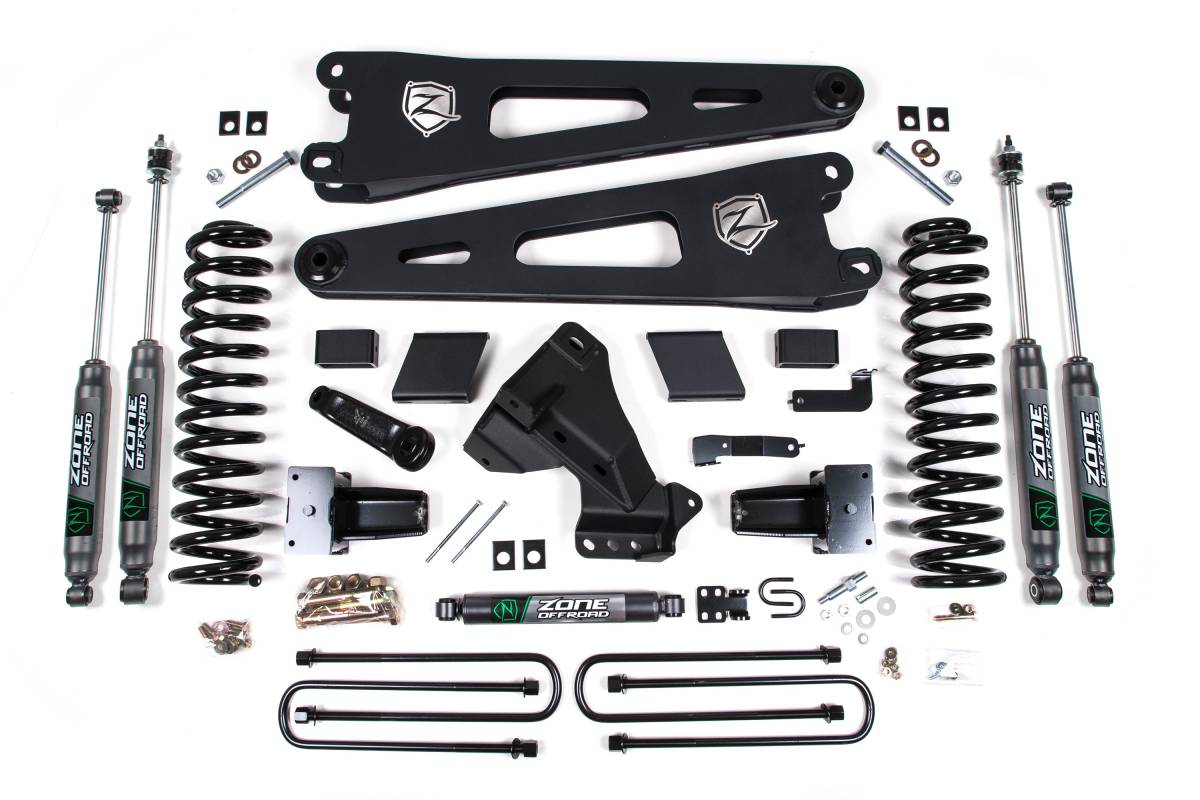

This 4-inch radius arm lift kit is designed to lift and level the stance of the Ford F350 Super Duty DRW (2020–2021) 4WD Diesel, providing room for up to 37-inch tires. Front lift is achieved via full-length, diesel-specific coil springs paired with replacement radius arms. These arms are constructed from high-strength 1/4-inch steel, boxed and fully welded, with large 2.5-inch greaseable bushings to isolate road vibrations and improve ground clearance over drop bracket kits. A forged drop pitman arm corrects steering operating angles, while a heavy-duty 1/4-inch steel fabricated track bar drop bracket re-centers the front axle and keeps steering linkage angles in phase for predictable handling. Additional front components include sway bar relocation brackets, brake line drop brackets, bump stop extensions, and a single steering stabilizer kit. The rear retains the factory overload leaf springs and uses replacement lift blocks and longer U-bolts sized specifically for DRW models, along with a rear brake line bracket.
Features
- Heavy-duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
- Forged pitman arm to correct steering angles
- Heavy-duty fabricated track bar relocation bracket to re-center the front axle
- Full-length diesel/gas-specific coil springs for a smooth ride
- Rear lift specific to dually trucks using U-bolts sized correctly for length and block height to level the truck
- Bump stop extension on the frame for proper suspension travel
- Sway bar relocation brackets, brake line drop brackets, and single steering stabilizer kit included
Specifications
- Front Lift Method: Coil Spring & Radius Arm
- Front Lift Height: 4 inches
- Rear Lift Method: Block
- Rear Lift Height: 3 inches
- Shocks Included: Yes
- Radius Arm Material: 1/4-inch high-strength steel, boxed and fully welded
- Bushing Size: 2.5-inch greaseable
- Track Bar Drop Bracket Material: 1/4-inch fabricated steel
Installation
- Estimated Time: 4–6 hours
- Difficulty: Moderate
- Tools Required: Standard wrenches
Important Notes
- Dually Models Only.
- Diesel Models Only.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- When adding the Dual Stabilizer option you will get the dual opposing steering stabilizer in addition to the single OE Replacement.
- Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory/original equipment tire size.
