5 Inch Lift Kit w/ HD Radius Arms | Ford F250/F350 Super Duty (2020-2022) 4WD Diesel | FOX 2.0 Adventure Series Shocks | Zone Offroad

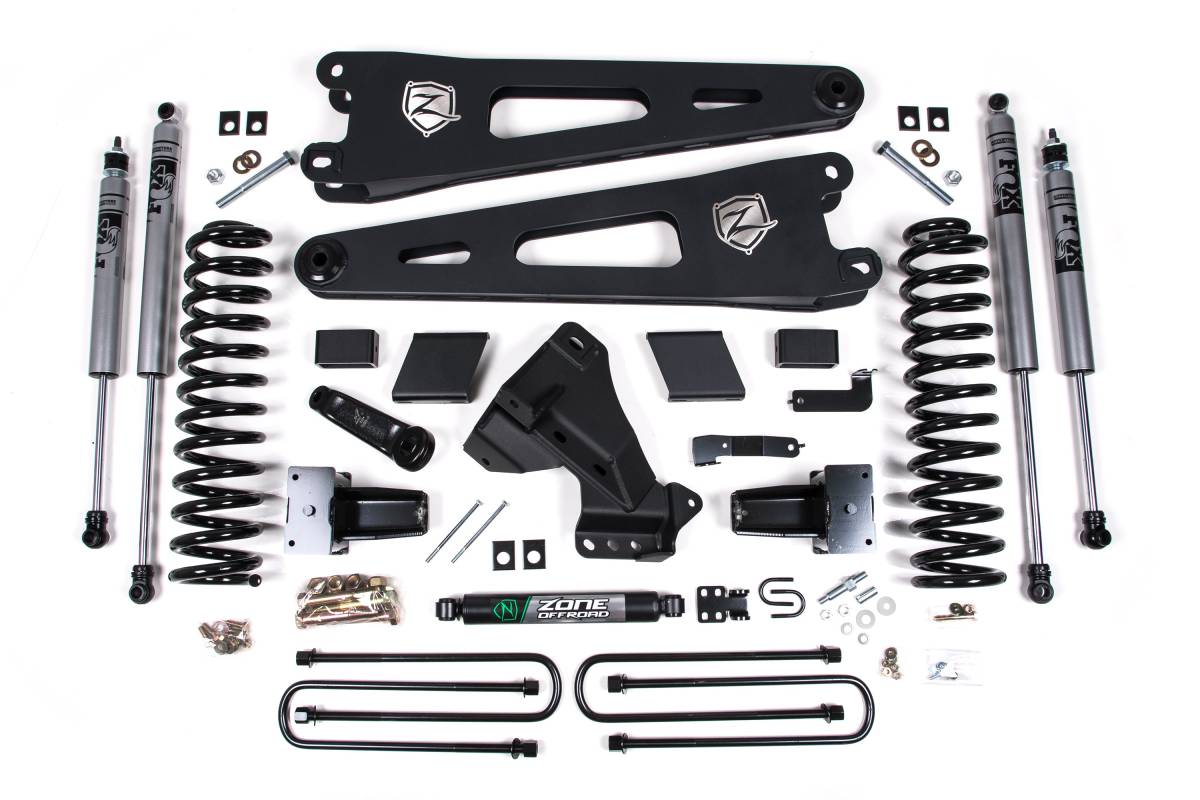

Includes FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, black powder coat finish, and a 2-inch diameter steel body for enhanced off-road performance.

Overview

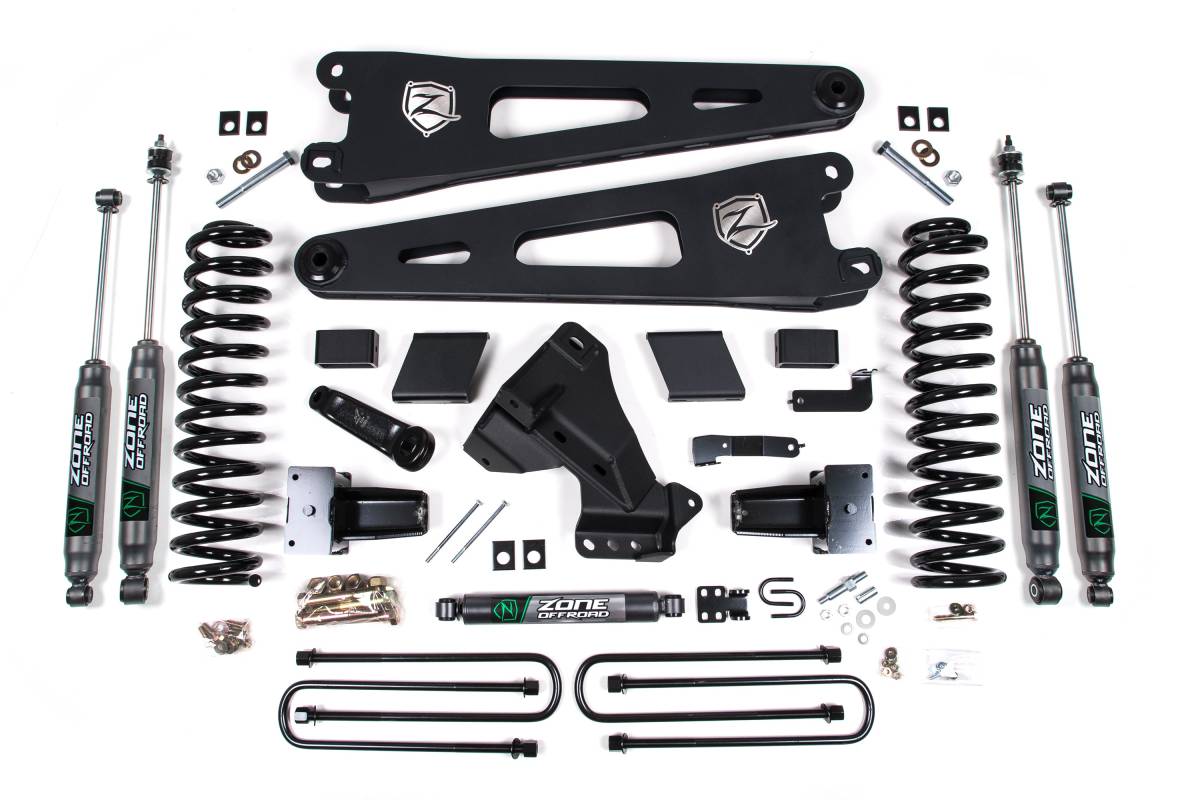

Zone Offroad offers a 5-inch suspension lift kit for 2020–2022 Ford F250/F350 Super Duty 4WD diesel trucks. Available in standard radius arm drop bracket and replacement HD radius arm configurations, these kits are designed to allow clearance for up to 37-inch tires. All Zone lift kits are backed by Factory Protection Plus, which includes a 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Features

• Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
• Forged pitman arm to correct steering angles
• Heavy duty fabricated track bar relocation bracket to re-center the front axle
• Full-length diesel/gas specific coil springs for a smooth ride

Specifications

• Front Lift Method: Coil Spring & Radius Arm
• Front Lift Height: 5 inches
• Rear Lift Method: Block
• Rear Lift Height: 3 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 4–6 hours
• Difficulty: Moderate
• Tools Required: Standard wrenches

Important Notes

• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
• When adding the Dual Stabilizer option you will get the dual opposing steering stabilizer in addition to the single OE Replacement.
• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). Zone recommends having this performed prior to installing the lift.
• Fits SRW models only.
• 37x12.50 tires may require minor trimming.
• Factory wheels fit when paired with factory/original equipment tire size.
