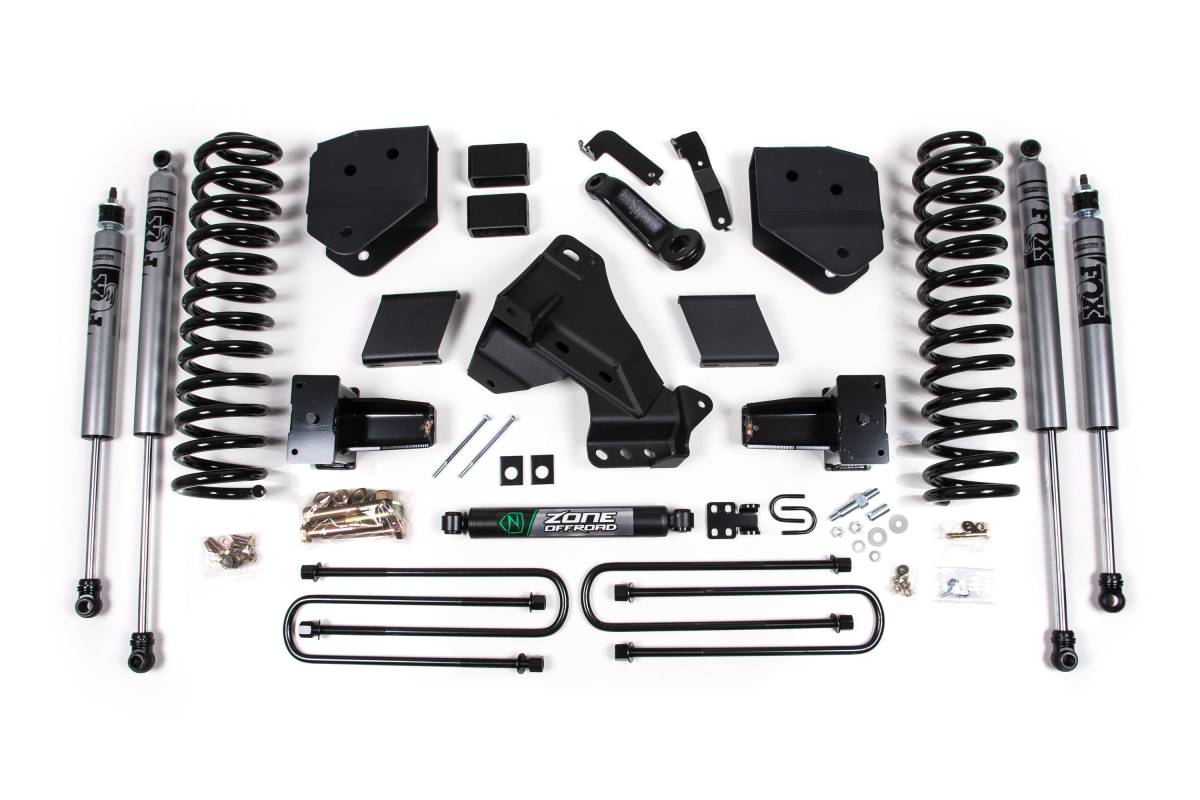

Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, a 2-inch diameter steel body, and a black powder coat finish for enhanced durability and off-road performance.
Overview

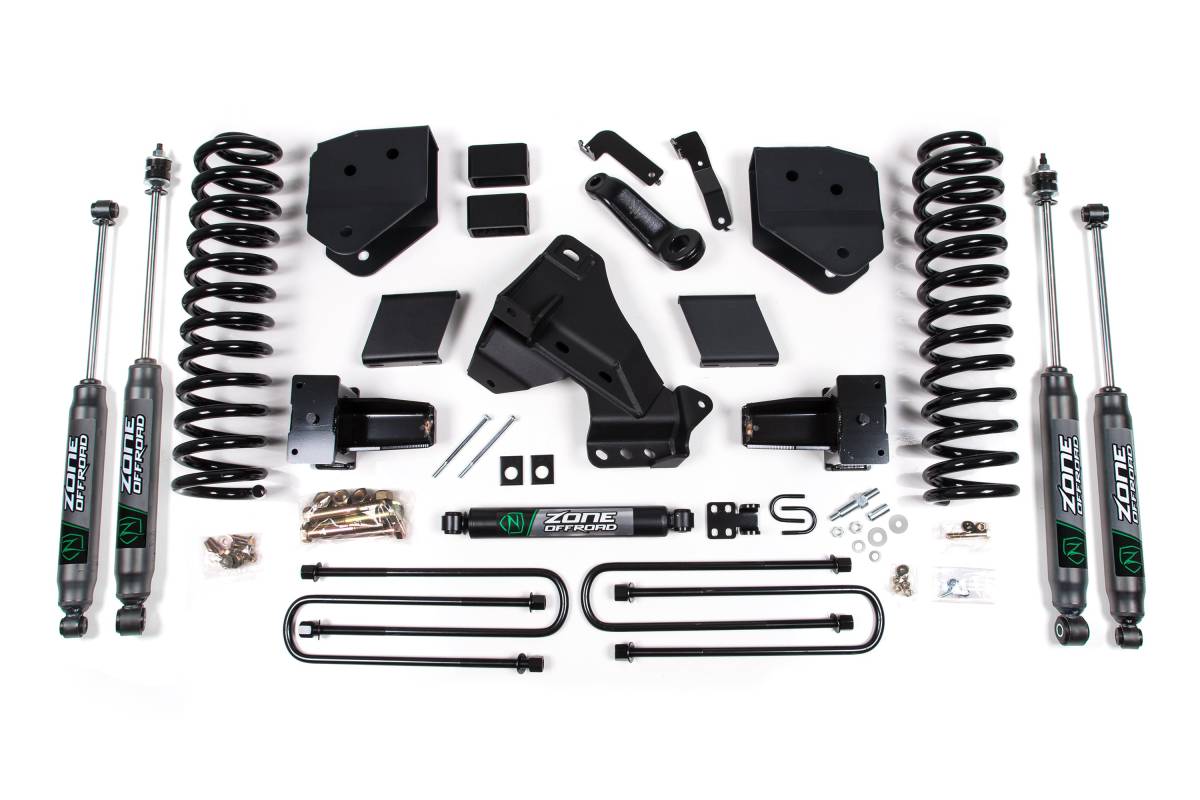

Zone Offroad offers this 5-inch suspension lift kit for 2020–2022 Ford F250/F350 Super Duty 4WD gas trucks. Available with a standard radius arm drop bracket configuration, this kit allows clearance for up to 37-inch tires. All Zone lift kits are backed by Factory Protection Plus — a comprehensive extended warranty that includes a 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Features
- Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance
- Forged pitman arm to correct steering angles
- Heavy duty fabricated track bar relocation bracket to re-center the front axle
- Full-length gas-specific coil springs for a smooth ride
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 5 inches
- Rear Lift Method: Block
- Rear Lift Height: 3 inches
- Shocks Included: Yes
Installation
- Estimated Time: 4–6 hours
- Difficulty: Moderate
- Tools Required: Standard wrenches
Important Notes
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). Zone recommends having this recall procedure performed prior to installing the lift.
- Front exhaust modification may be required to clear the front drive shaft (Gas Models Only).
- Fits SRW (Single Rear Wheel) models only.
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory/original equipment tire size.
