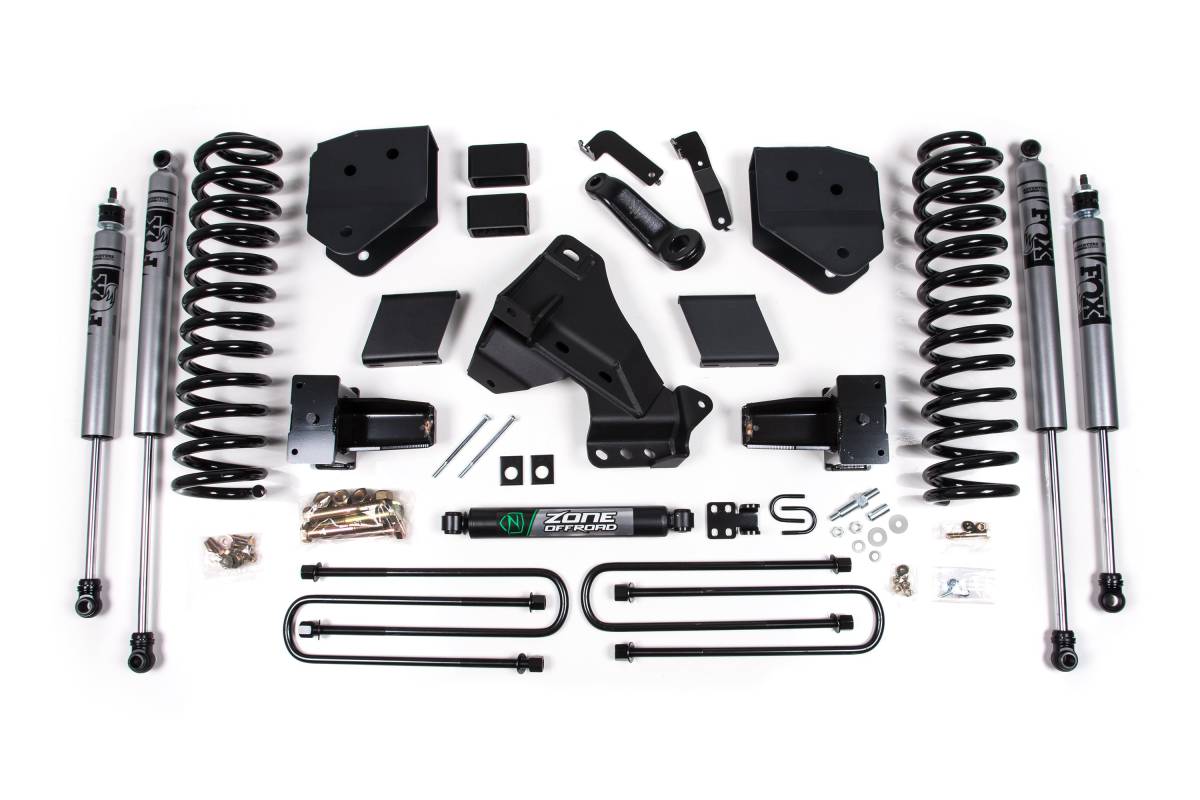

Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a black powder coat finish. Provides a front lift height of 5" via coil spring and drop bracket, and a rear lift height of 3" via block. Lift height range: 4–5.5".
Overview

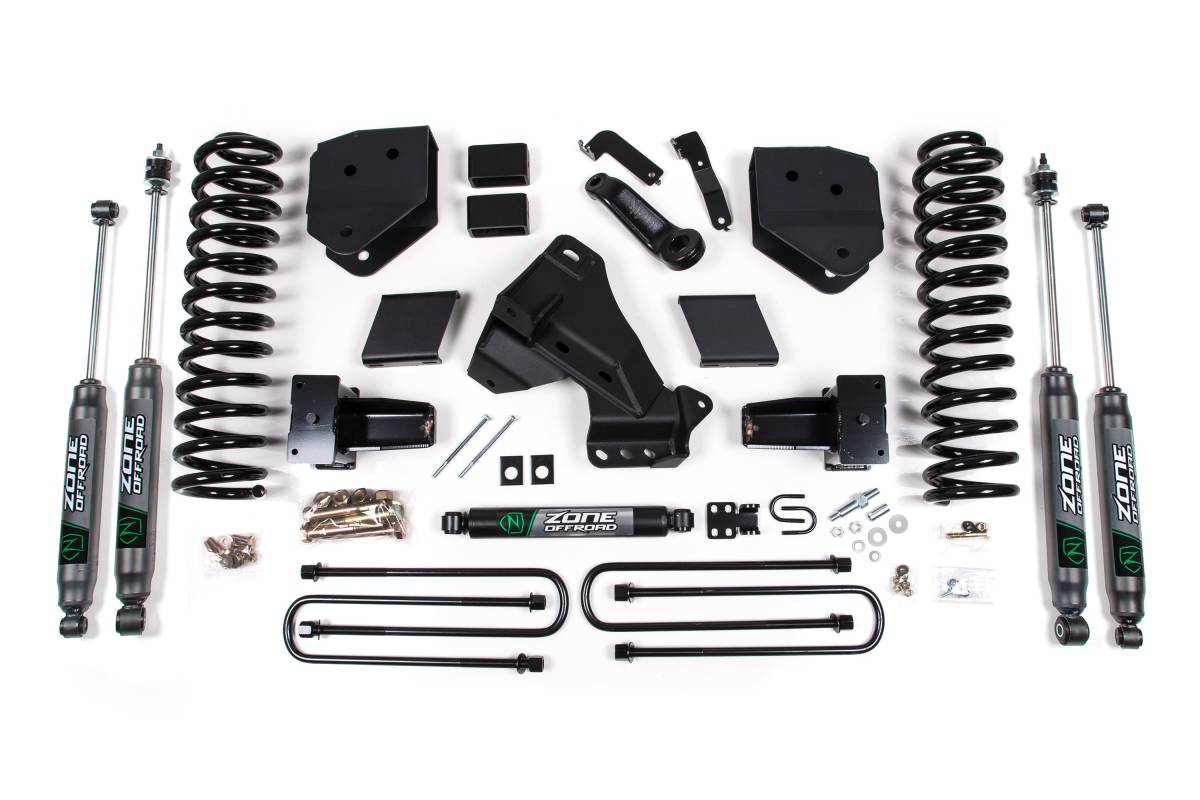

Zone Offroad offers suspension lift kits for the 2020–2022 Ford F250/F350 Super Duty 4WD trucks. These 5" lift kits are available for gas and diesel applications and are offered in a standard radius arm drop bracket configuration to allow clearance for up to 37" tires. All Zone lift kits are backed by Factory Protection Plus — a comprehensive extended warranty that includes a 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.
Features
- Corrects suspension geometry with high-strength radius arm drop brackets
- Forged pitman arm to correct steering angles
- Heavy-duty fabricated track bar relocation bracket to re-center the front axle
- Full-length diesel/gas-specific coil springs for a smooth ride
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 5"
- Rear Lift Method: Block
- Rear Lift Height: 3"
- Shocks Included: Yes
Installation
- Estimated Time: 4–6 hours
- Difficulty: Moderate
- Tools Required: Standard wrenches
Important Notes
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- Due to taller factory ride height, Tremor models will not net the full advertised lift height. Final ride height will be the same as standard models.
- Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). Zone recommends having this recall performed prior to installing the lift.
- Fits SRW models only.
- 37x12.50 tires may require minor trimming.
- Factory wheels fit when paired with factory/original equipment tire size.
