6 Inch Lift Kit | 2014 Ford F150 2WD | 5 Inch Rear Block Kit w/ FOX Adventure Series Shocks | Zone Offroad

This configuration pairs a 5 Inch Rear Block Kit with FOX Adventure Series rear shocks. The FOX Adventure Series features a nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends for increased strength, self-lubricating seals, and a black powder coat finish on a 2-inch diameter steel body. Delivers a level to tail-high appearance.

Overview

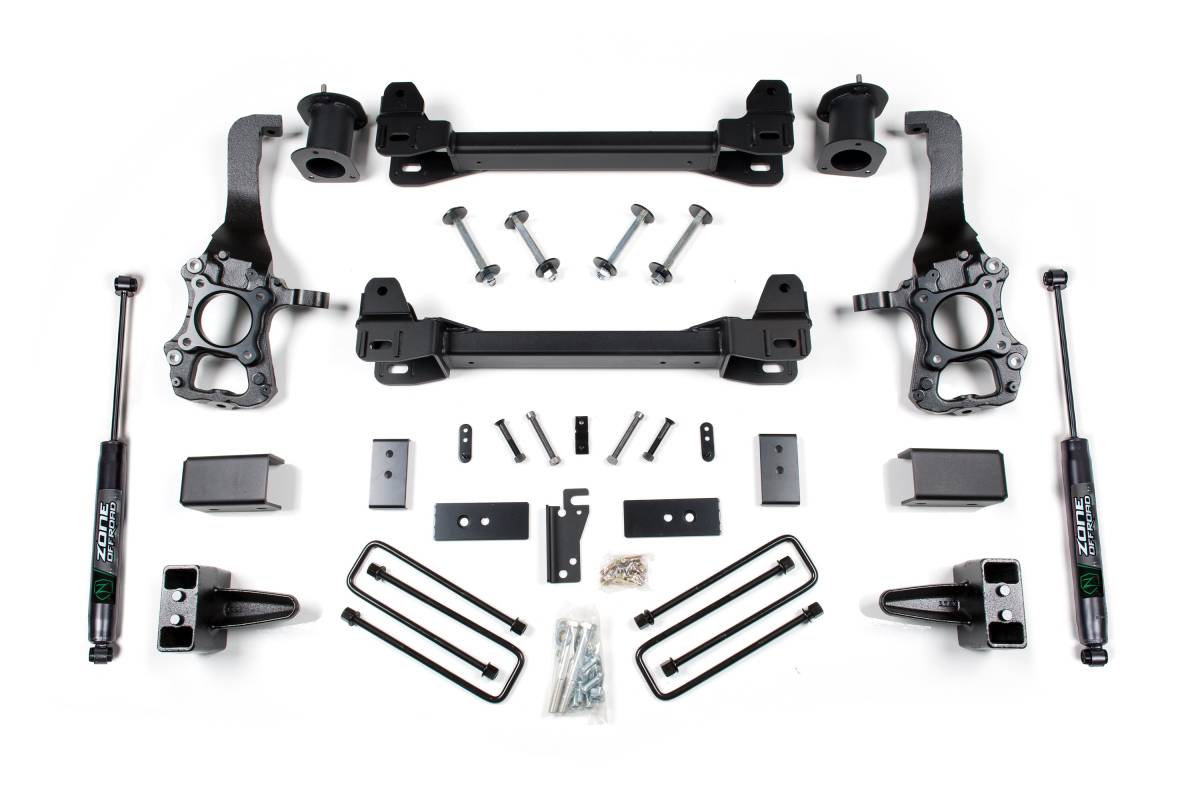

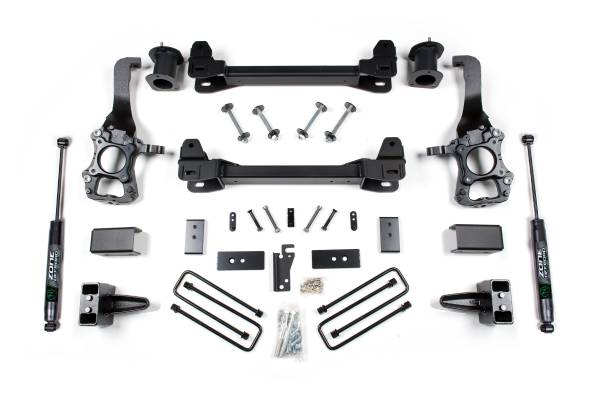

This 6-inch lift kit from Zone Offroad is designed to raise your 2014 Ford F150 2WD and provide clearance for up to 37-inch tires. The kit includes high-strength crossmembers, ductile iron steering knuckles, top-mounted strut spacers, and a rear block kit to lift and level the stance. All components needed for the installation are included.

Features

• High-strength crossmembers to correct lower control arm positioning
• Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top-mounted strut spacers to provide lift and install easily
• Crossmember supports add rigidity and off-road protection
• Rear lift blocks and u-bolts to lift and level the stance
• Sway bar, brake line, and bump stop relocation brackets to correct operating angles

Specifications

• Front Lift Method: Cross Member & Strut Spacer
• Front Lift Height: 6 inches
• Rear Lift Method: Block
• Shocks Included: Yes
• Tire Clearance: Up to 37 inches

Installation

• Estimated Time: 8 hours
• Difficulty: Moderate
• Special Tools Required: Cut-off Tool

Important Notes

Accommodates factory 20-inch wheels with stock tires.
