5 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (2023-2026) 4WD Gas | Block Kit Without Factory Overload | FOX 2.0 Adventure Series | Zone Offroad

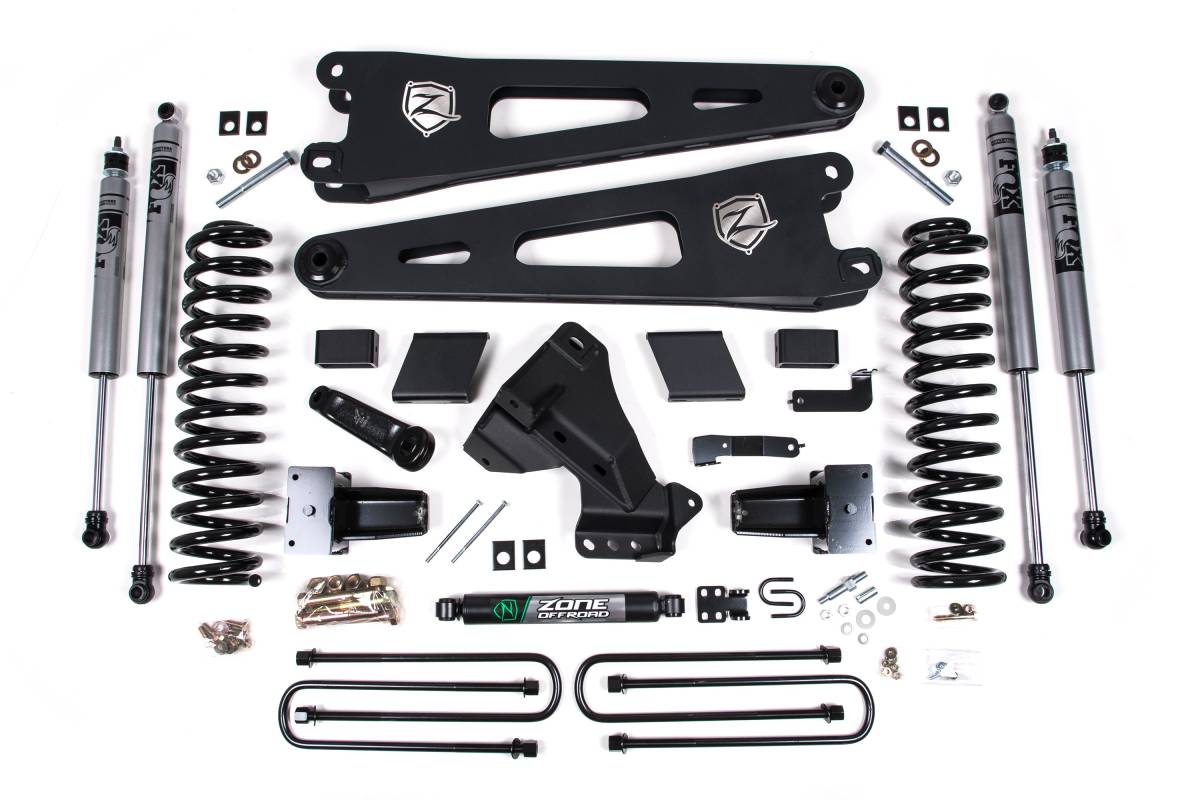

Rear lift configured with a Block Kit Without Factory Overload, providing 3" of rear lift height. Shocks included: FOX 2.0 Adventure Series.

Overview

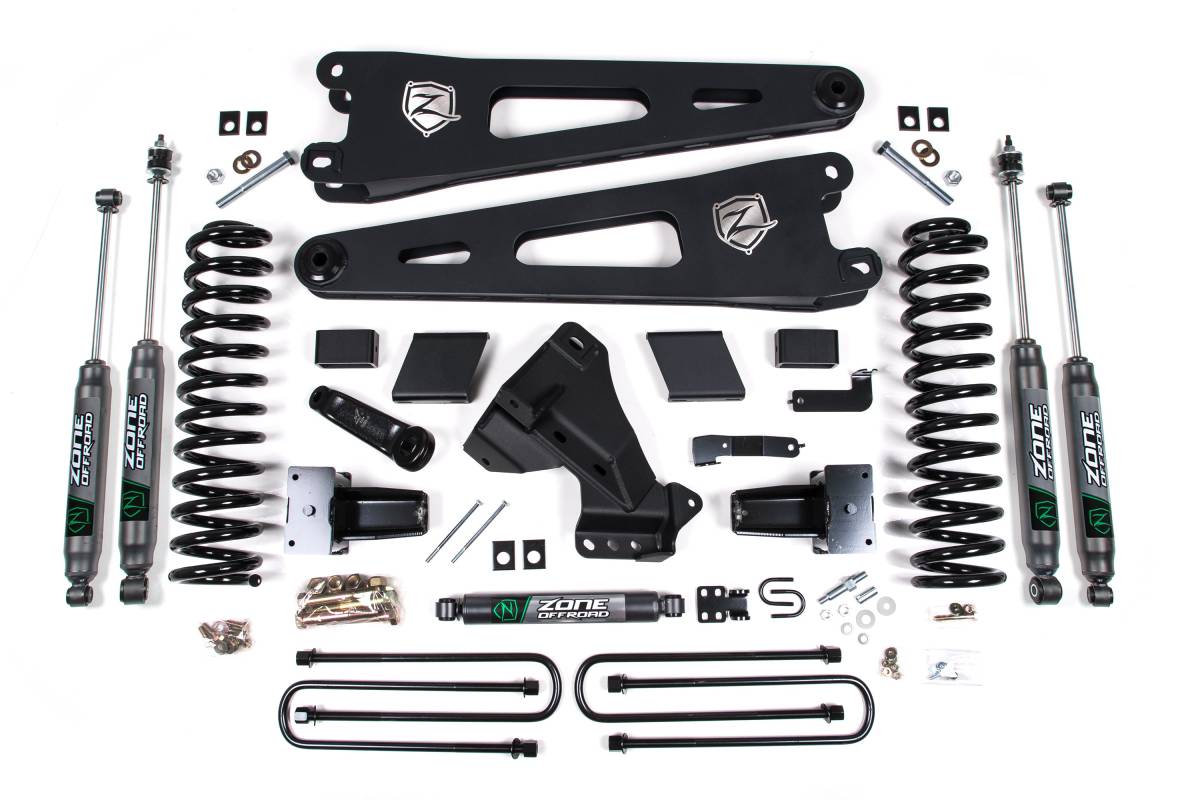

Zone Offroad's 5-inch radius arm lift kits are designed for 2023–2026 Ford F250/F350 Super Duty gas 4WD trucks. These complete kits include everything needed to properly lift your Super Duty to allow clearance for up to 37-inch tires. All Zone lift kits are backed by Factory Protection Plus — a comprehensive extended warranty that includes a 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Features

• Heavy duty fabricated steel radius arms that correct caster alignment while maximizing ground clearance
• Forged pitman arm to correct steering angles
• Heavy duty fabricated track bar relocation bracket to recenter the front axle
• Full length, gas-specific coil springs

Specifications

• Front Lift Method: Coil Spring & Radius Arm
• Front Lift Height: 5"
• Rear Lift Method: Block
• Rear Lift Height: 3"
• Shocks Included: Yes

Installation

• Estimated Time: 4–6 hours
• Difficulty: Difficult
• Tools Required: 30mm Socket, 46mm Socket, Hydraulic Floor Jack and Jack Stands, Pitman Arm Puller

Important Notes

• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
• When adding the Dual Stabilizer option, you will get the dual opposing steering stabilizer in addition to the single OE Replacement.
• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Some trucks with a rear driveline vibration may have a recall from Ford regarding the rear axle. (Safety Recall 21S31) Due to the recall procedure, Zone recommends having this performed prior to installing the lift.
• Does not fit vehicles with radius arm mounted ride height sensors.
• Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center. Similar to a wheel alignment, all charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
• 37x12.50 tires may require minor trimming.
• Factory wheels fit when paired with factory / original equipment tire size.
