5 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (2023-2026) 4WD Diesel | Block Kit With Factory Overload | FOX 2.0 Adventure Series | Zone Offroad

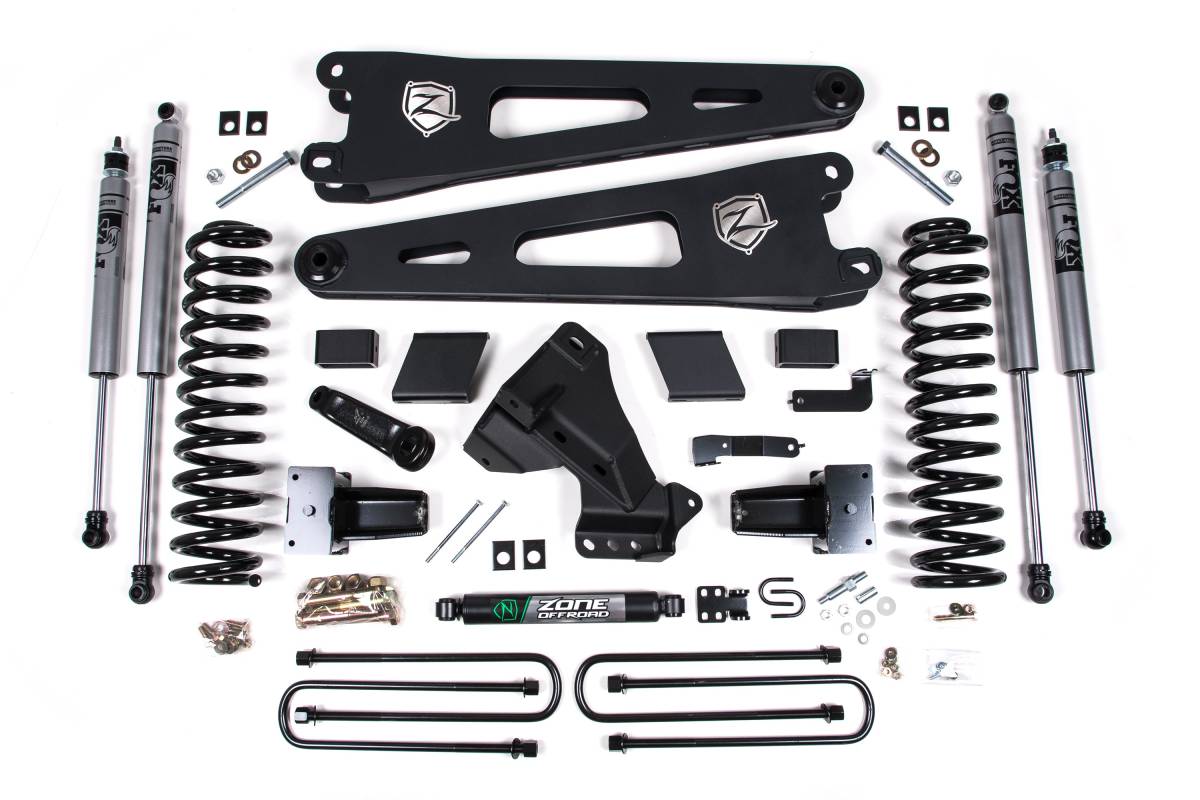

This configuration includes a Block Kit With Factory Overload rear lift option paired with FOX 2.0 Adventure Series shocks. Front lift: 5" via Coil Spring & Radius Arm. Rear lift: 3" via block. Overall lift range: 4–5.5".

Overview

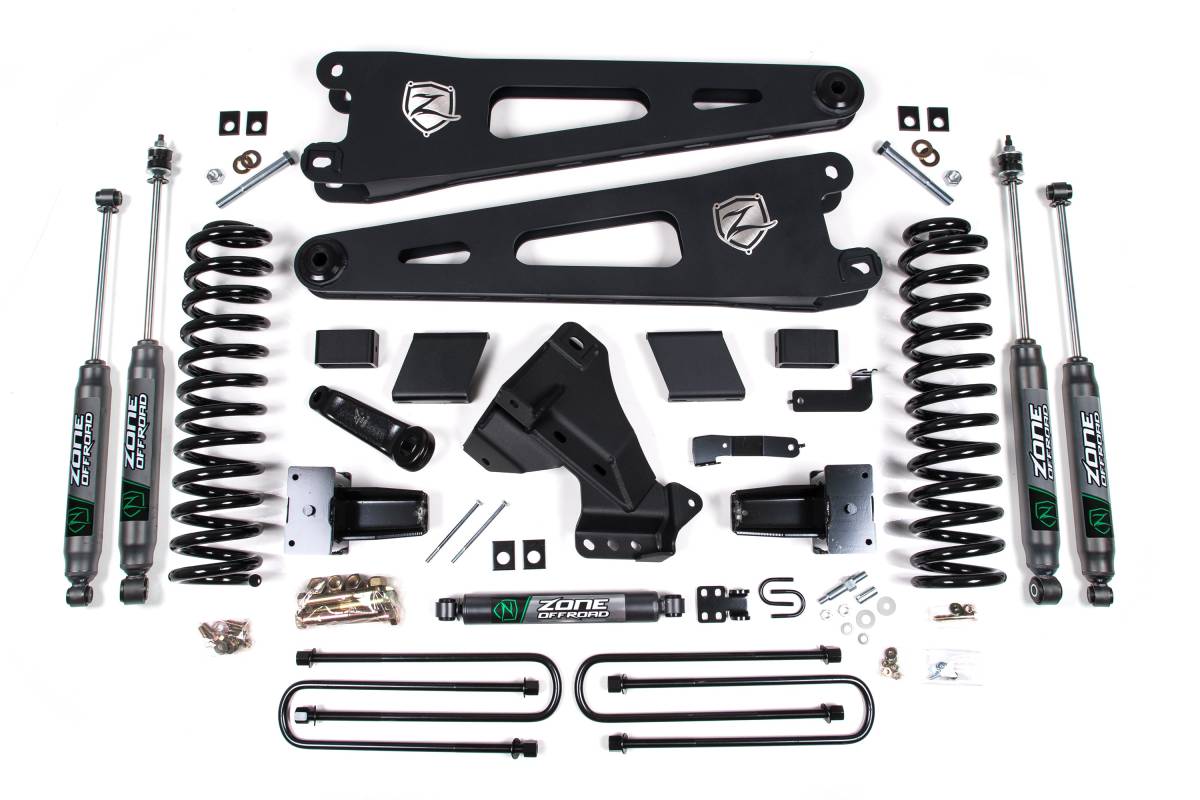

Zone Offroad's 5" Radius Arm Lift Kit is designed for 2023–2026 Ford F250/F350 Super Duty 4WD diesel trucks. This complete kit includes everything needed to properly lift your Super Duty, providing clearance for tires up to 37". These kits are backed by Factory Protection Plus — Zone Offroad's comprehensive extended warranty — which includes a 5-year/60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty.

Features

• Heavy duty fabricated steel radius arms that correct caster alignment while maximizing ground clearance
• Forged pitman arm to correct steering angles
• Heavy duty fabricated track bar relocation bracket to recenter the front axle
• Full-length, vehicle-specific coil springs — gas or diesel specific

Specifications

• Front Lift Method: Coil Spring & Radius Arm
• Front Lift Height: 5"
• Rear Lift Method: Block
• Rear Lift Height: 3"
• Shocks Included: Yes
• Overall Lift Range: 4–5.5"

Installation

• Estimated Time: 4–6 hours
• Difficulty: Difficult
• Tools Required: 30mm Socket, 46mm Socket, Hydraulic Floor Jack and Jack Stands, Pitman Arm Puller

Important Notes

• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
• When adding the Dual Stabilizer option, you will get the dual opposing steering stabilizer in addition to the single OE Replacement.
• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
• Some trucks with a rear drive-line vibration may have a recall from Ford regarding the rear axle (Safety Recall 21S31). Zone recommends having this recall procedure performed prior to installing the lift.
• Does not fit vehicles with radius arm mounted ride height sensors.
• Fits SRW models only.
• Recalibration of your vehicle's Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control, and other functions as they operated prior to installation. All charges and expenses that may occur from dealership calibrations and adjustments are the sole responsibility of the vehicle owner.
• 37x12.50 tires may require minor trimming.
• Factory wheels fit when paired with factory/original equipment tire size.
