Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.
Overview

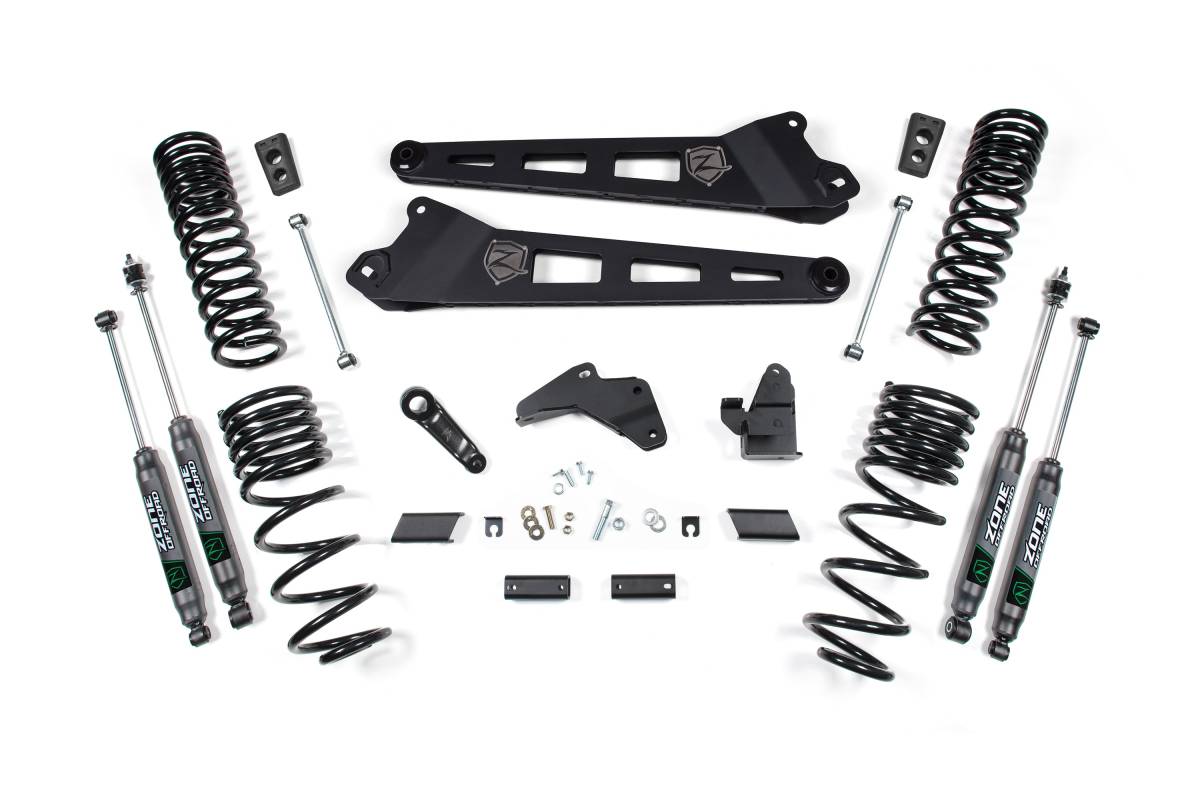

This 5.5-inch lift kit from Zone Offroad is designed for the 2014–2018 Ram 2500 4WD Gas. The kit includes everything needed to lift and level the stance, from front and rear coil springs and heavy-duty radius arms to steering correction components and rear lift hardware. Clearance is provided for up to 37-inch tires.
Features
- Progressive rate front and rear coil springs improve ride quality and off-road performance while lifting and leveling the stance
- HD radius arm corrects caster while maximizing ground clearance
- Forged pitman arm and track bar relocation bracket correct steering angles and recenter the front axle
- Extended bump stops, sway bar relocation, and brake line relocation to maintain factory-like operating angles
- Bump stop extensions, track bar bracket, and sway bar correction to address suspension geometry
Specifications
- Front Lift Method: Coil Spring & Radius Arm
- Front Lift Height: 5.5"
- Rear Lift Method: Coil Spring
- Rear Lift Height: 4.5"
- Shocks Included: Yes
- Tire Clearance: Up to 37"
Installation
- Estimated Installation Time: 5 hours
- Installation Difficulty: Moderate
Important Notes
- Fits trucks equipped with the 6.4L gas engine.
- Front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit.
- Does NOT work for models with factory rear airbag suspension.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- Will not fit Power Wagon models.
- 6.4L Gas models will require exhaust modification to clear the front driveshaft.
- 5.7L Gas models may require modification.
