5.5 Inch Lift Kit | Ram 2500 (2014-2018) 4WD Gas | w/ FOX 2.0 Adventure Series Shocks | Zone Offroad

Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a 2-inch diameter black powder-coated steel body.

Overview

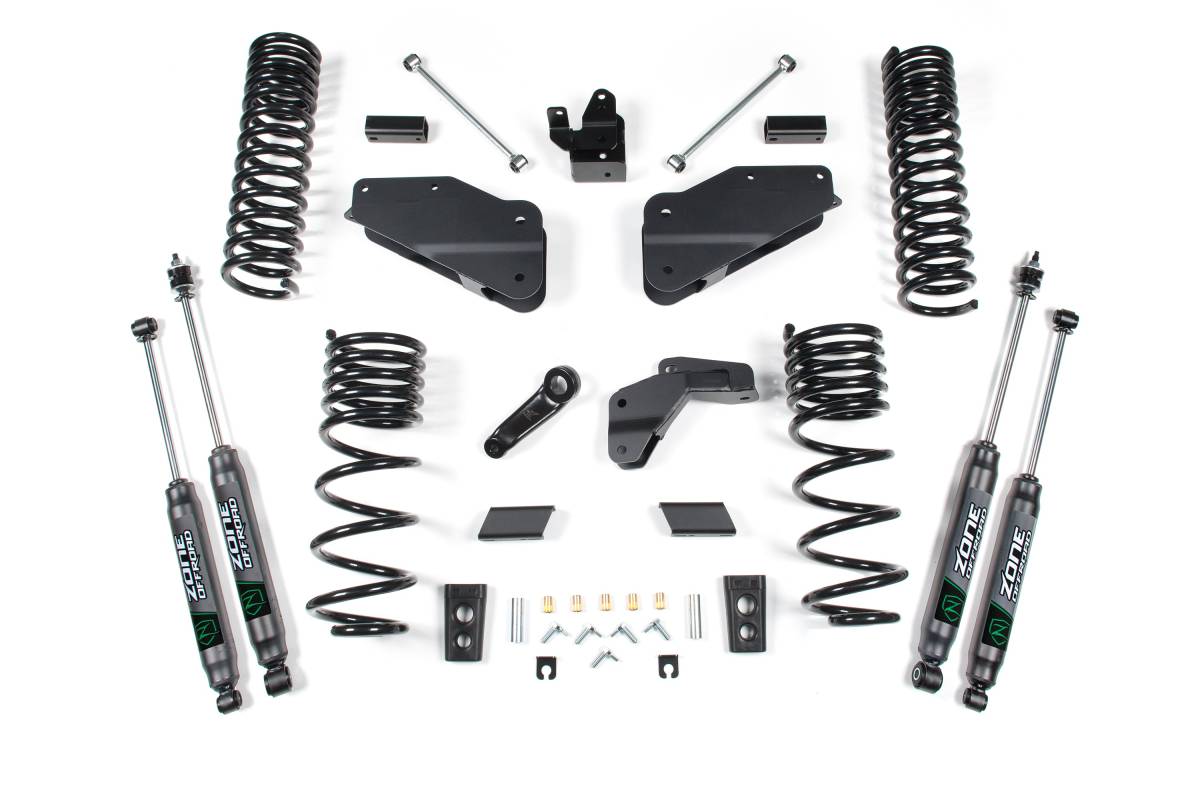

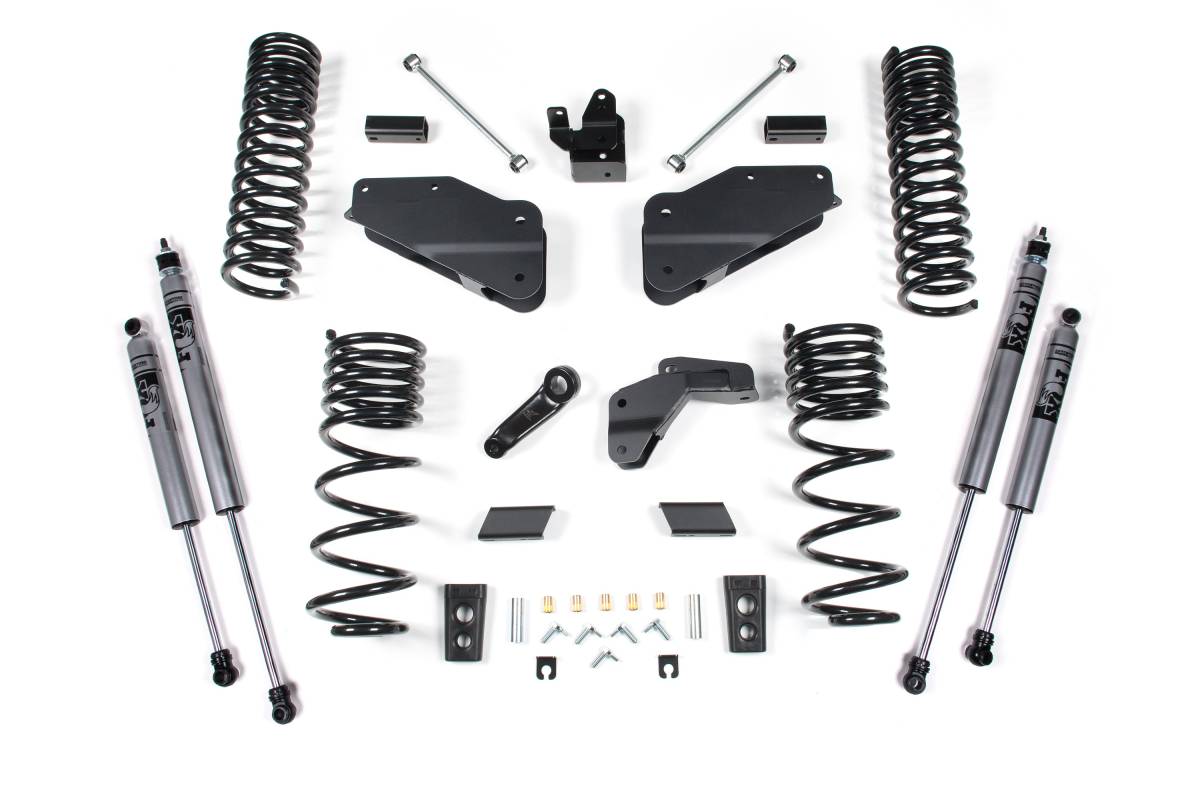

This 5.5" lift kit from Zone Offroad is designed for the Ram 2500 (2014–2018) 4WD Gas. The kit includes everything needed to lift and level the stance, including front and rear coil springs, radius arm relocation brackets, steering correction components, and rear lift hardware. Compatible with up to 37" tires.

Features

• Progressive rate front and rear coil springs improve ride quality and off-road performance while lifting and leveling the stance
• Radius arm drop brackets to correct caster and improve suspension geometry
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter the front axle
• Extended bump stops, sway bar relocation, and brake line relocation to maintain factory-like operating angles
• Bump stop extensions, track bar bracket, and sway bar correction to further correct suspension geometry

Specifications

• Front Lift Method: Coil Spring & Drop Bracket
• Front Lift Height: 5.5"
• Rear Lift Method: Coil Spring
• Rear Lift Height: 4.5"
• Shocks Included: Yes

Installation

• Estimated Time: 5 hours
• Difficulty: Moderate

Important Notes

Factory wheels fit when paired with factory / original equipment tire size. 6.4L Gas models will require exhaust modification to clear the front driveshaft. 5.7L Gas models may require modification.
