Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a black powder coat finish on a 2-inch diameter steel body.
Overview

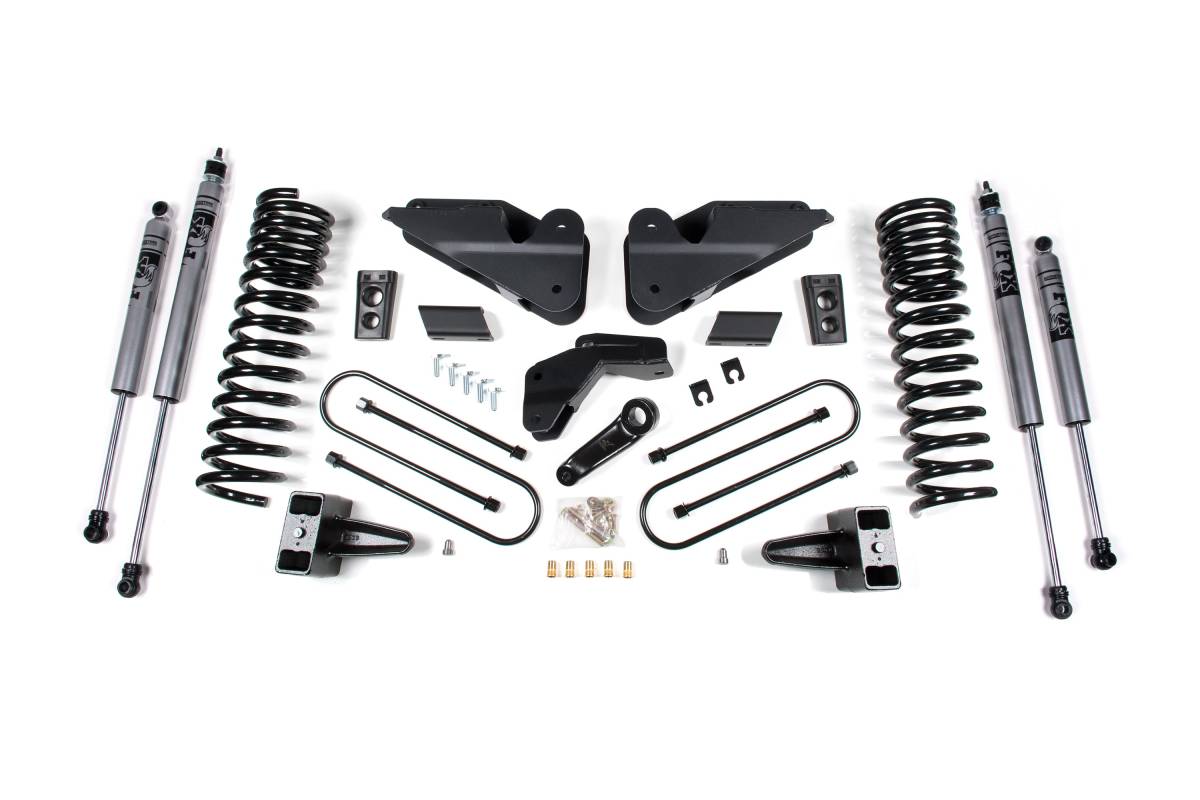

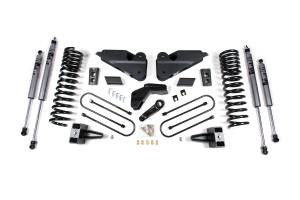

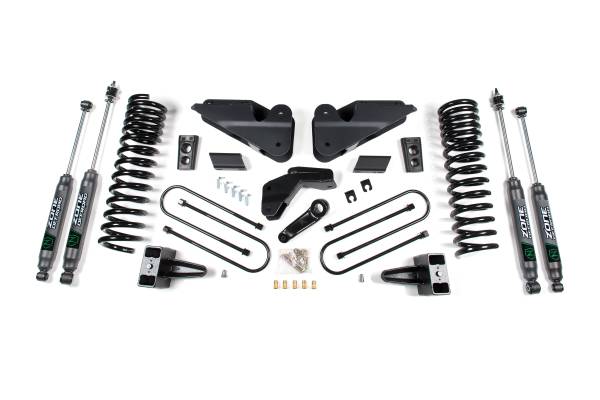

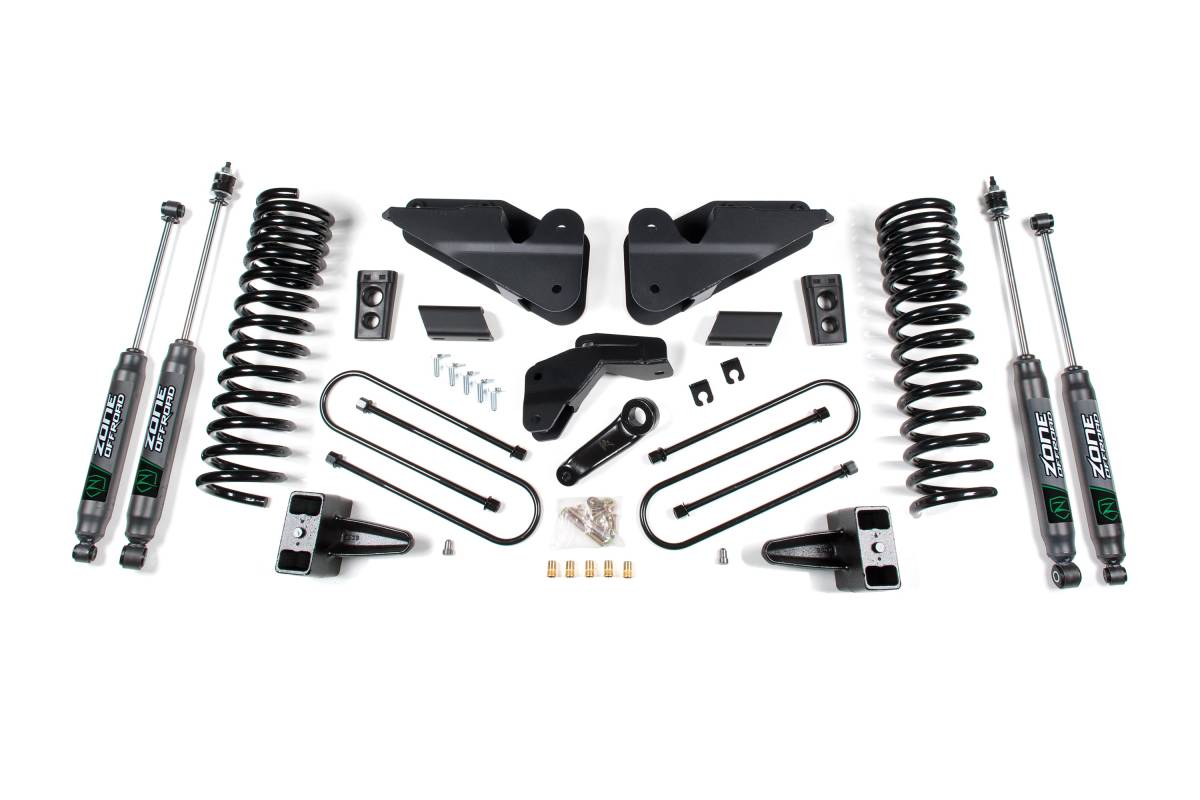

This 5.5-inch lift kit from Zone Offroad is designed for the Ram 3500 4WD (2013–2018) equipped with a gas engine. The kit includes everything needed for the lift, from full-length coil springs and radius arm relocation brackets to steering correction components and rear lift hardware to level the stance. The kit provides clearance for up to 37-inch tires.
Features
- Progressive rate front coil springs improve ride quality and off-road performance
- Radius arm drop brackets to correct caster and improve suspension geometry
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter the front axle
- Extended bump stops, sway bar relocation, and brake line relocation to maintain factory-like operating angles
- Replacement rear lift blocks and u-bolts to lift and level the stance
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 5.5"
- Rear Lift Method: Block
- Rear Lift Height: 5"
- Shocks Included: Yes
Installation
- Estimated Installation Time: 5 hours
- Installation Difficulty: Moderate
Important Notes
- Fits trucks equipped with the 6.4L gas engines.
- Front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6-bolt transfer case use part # D5623. Models with an 8-bolt transfer case use part # D5813.
- Does NOT work for models with factory rear airbag suspension.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- 6.4L Gas models will require exhaust modification to clear the front driveshaft.
- 5.7L Gas models may require modification.
