4 Inch Lift Kit w/ Radius Arm | Ram 2500 4WD (2014-2018) Gas | Nitro Series Shocks | Zone Offroad

Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.

Overview

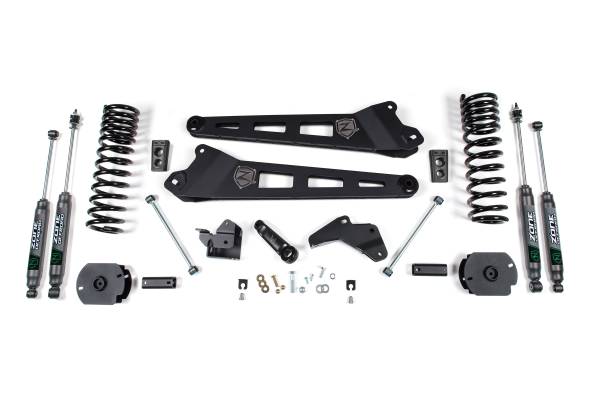

This 4-inch lift kit from Zone Offroad is designed for the Ram 2500 4WD (2014–2018) Gas. The kit includes everything needed to lift the truck, from full-length coil springs and stout radius arms to steering correction components and rear lift hardware to level the stance. Provides clearance for up to 37-inch tires.

Features

• Progressive rate front coil springs to improve ride quality and off-road performance
• HD radius arm to correct caster while maximizing ground clearance
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter the front axle
• Extended bump stops, sway bar relocation, and brake line relocation to maintain factory-like operating angles
• Rear coil spacers, bump stop extensions, track bar bracket, and sway bar links to level the stance and correct suspension geometry

Specifications

• Front Lift Method: Coil Spring & Drop Bracket
• Front Lift Height: 4 inches
• Rear Lift Method: Coil Spacer
• Rear Lift Height: 2.5 inches
• Shocks Included: Yes

Installation

• Estimated Installation Time: 6 hours
• Installation Difficulty: Moderate

Important Notes

• Although very rare, front driveline vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit.
• Optional t-case indexing ring kit recommended to reduce front driveline angle.
• Fits 6.4L Gas Engine Models only.
• Does NOT work for models with factory rear airbag suspension.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
• Will not fit Power Wagon models.
• 6.4L Gas models will require exhaust modification to clear the front driveshaft.
• 5.7L Gas models may require modification.
