Includes FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, a 2-inch diameter black powder-coated steel body, and application-specific valving for optimized performance.
Overview

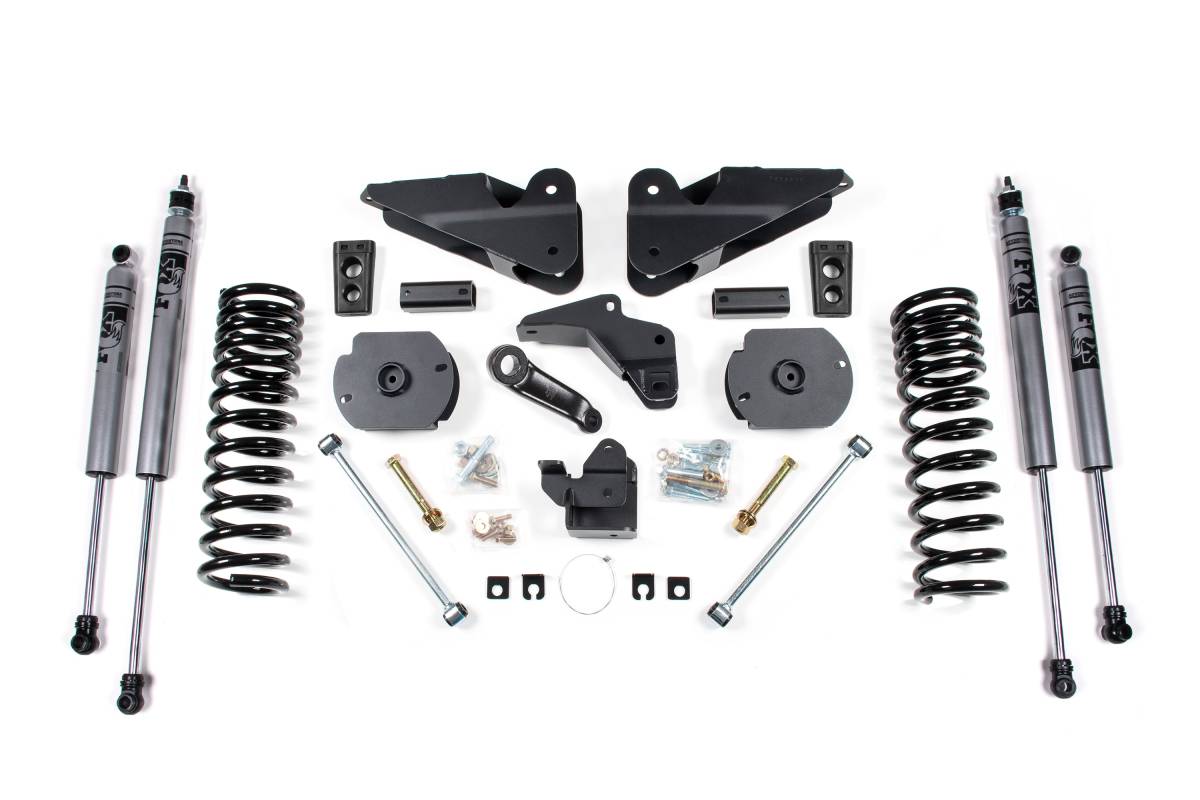

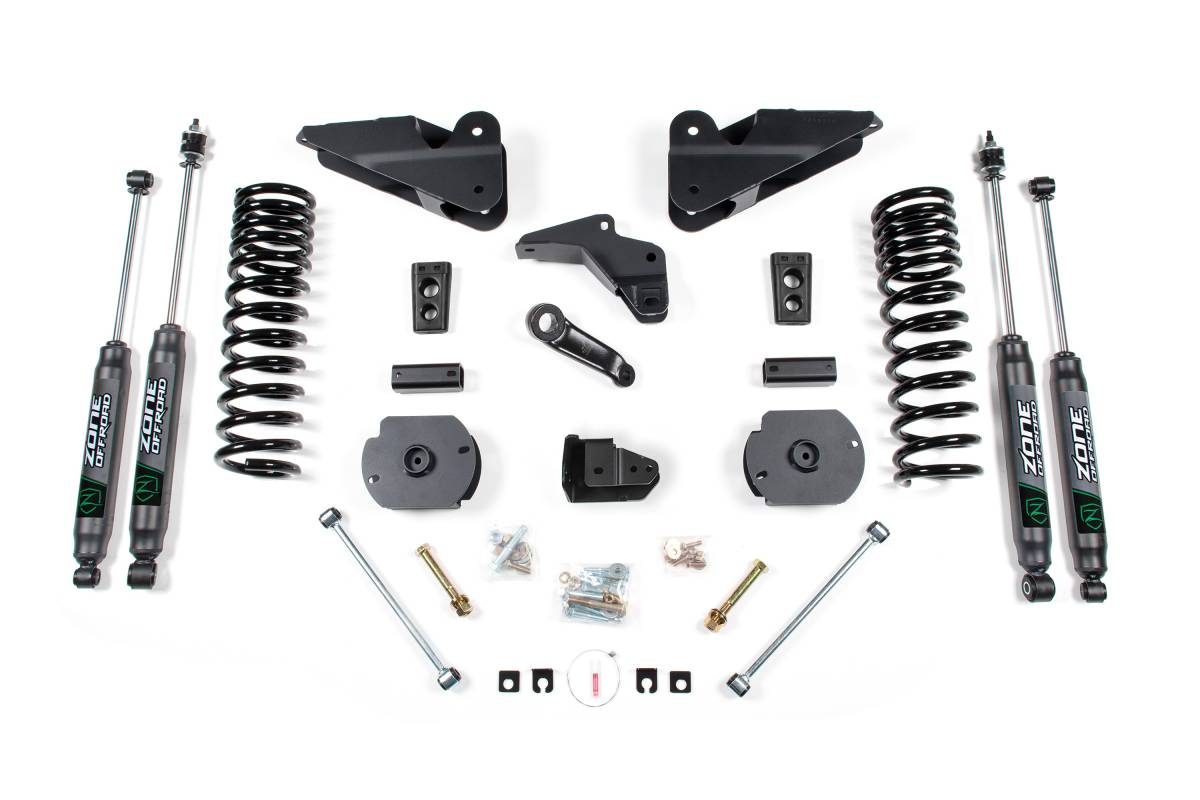

This 4-inch lift kit from Zone Offroad is designed for the Ram 2500 (2014–2018) 4WD with a 6.4L gas engine. The kit includes everything needed to lift the truck, from full-length coil springs and radius arm relocation brackets to steering correction and rear lift components to level the stance. Clearance for up to 37-inch tires is achievable with this kit.
Features
- Progressive rate front coil springs improve ride quality and off-road performance
- Radius arm drop brackets correct caster and improve suspension geometry
- Extended bump stops, sway bar relocation, and brake line relocation to maintain factory-like operating angles
- Rear coil spacers, bump stop extensions, track bar bracket, and sway bar links to level the stance and correct rear suspension geometry
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 4"
- Rear Lift Method: Coil Spacer
- Rear Lift Height: 2.5"
- Shocks Included: Yes
Installation
- Estimated Time: 5 hours
- Difficulty: Moderate
Important Notes
- Fits trucks equipped with the 6.4L gas engine only.
- Front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit.
- Does NOT work for models with factory rear airbag suspension.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- 6.4L Gas models will require exhaust modification to clear the front driveshaft.
- 5.7L Gas models may require modification.
- Factory wheels fit when paired with factory/original equipment tire size.
