5 Inch Lift Kit | 2003-2007 Dodge Ram 2500/3500 4WD | 3-1/2 Inch Axle | FOX 2.0 Adventure Series | Zone Offroad

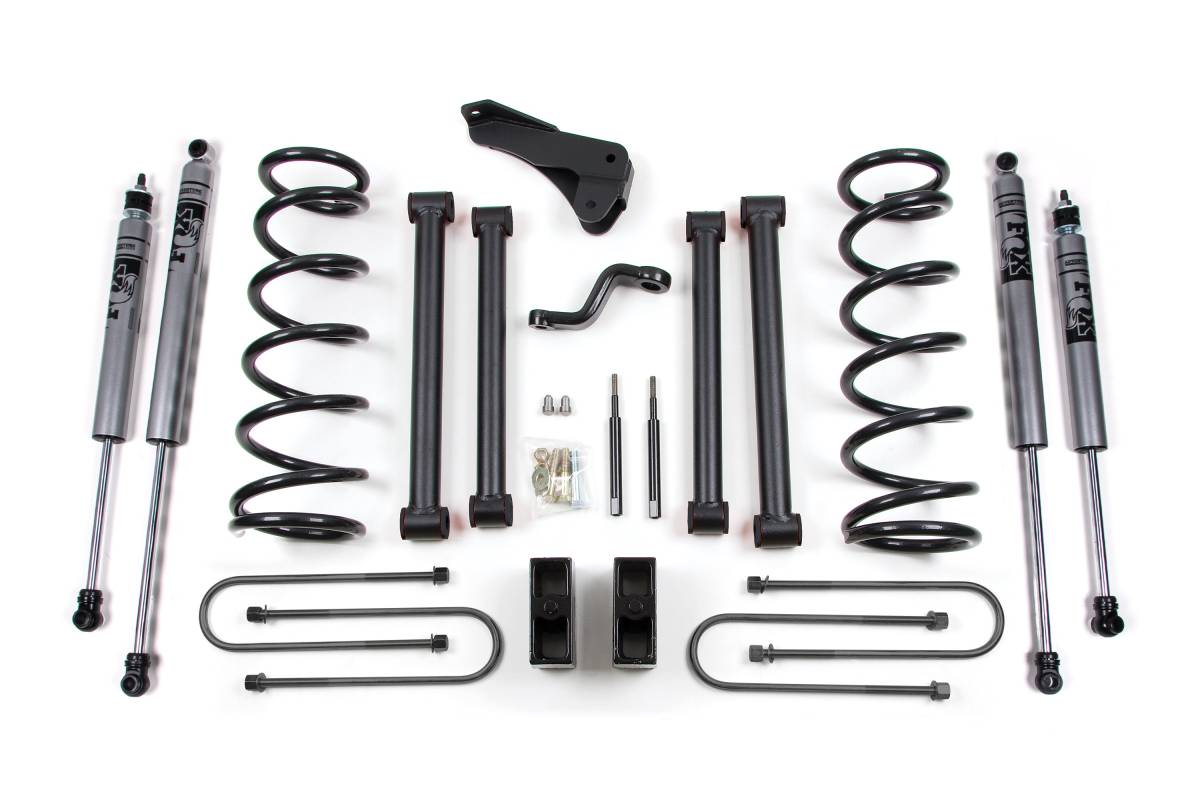

Configured for trucks with a 3-1/2 inch rear axle diameter and includes FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, a 2-inch diameter steel body, and a black powder coat finish.

Overview

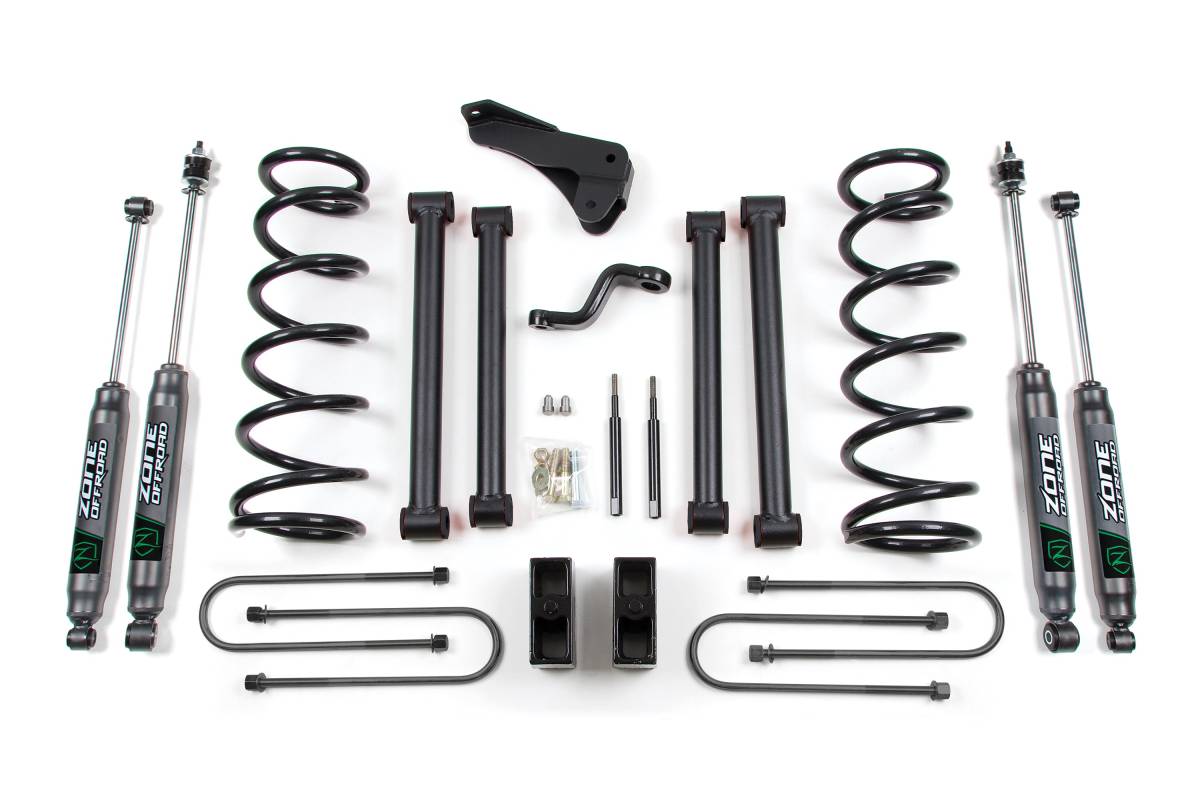

This 5-inch lift kit is designed for 2003–2007 Dodge/Ram 2500/3500 4WD trucks and provides clearance for tires up to 36 inches. The kit includes all components required to raise your truck, with two rear axle configurations available to match your specific vehicle.

Features

• 100% bolt-on design for easy installation
• Bump stop extensions properly limit up-travel, protecting your vehicle
• Heavy-duty upper and lower control arms improve strength and articulation while correcting caster
• Heavy-duty front track bar bracket correctly positions the front axle under the vehicle
• Steering components included to ensure smooth post-installation operation of the steering system and factory-consistent vehicle handling characteristics

Specifications

• Front Lift Method: Coil Spring
• Front Lift Height: 5 inches
• Rear Lift Method: Block (3-inch rear block kit included)
• Rear Lift Height: 3 inches
• Shocks Included: Yes

Installation

• Estimated Time: 7 hours
• Difficulty: Moderate

Important Notes

• If your truck has had the steering gear box changed and the sector shaft diameter measures approximately 1-1/2"–1-5/8", you will also need part ZOND8404 with your kit.
• This truck was produced using rear axles of differing diameters; measure the diameter of your rear axle to ensure proper kit selection.
• Factory wheels fit when paired with factory/original equipment tire size.
• This kit is not designed for dually models, but may be easily adapted to accommodate your truck. Please contact customer support for assistance.
• Gas Engine: Gas models may sit slightly taller than the advertised lift height due to the lighter weight of the engine.
• Measure your truck before ordering to determine the stance of your truck with the lift installed.
• Two-piece rear drive shaft: Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
