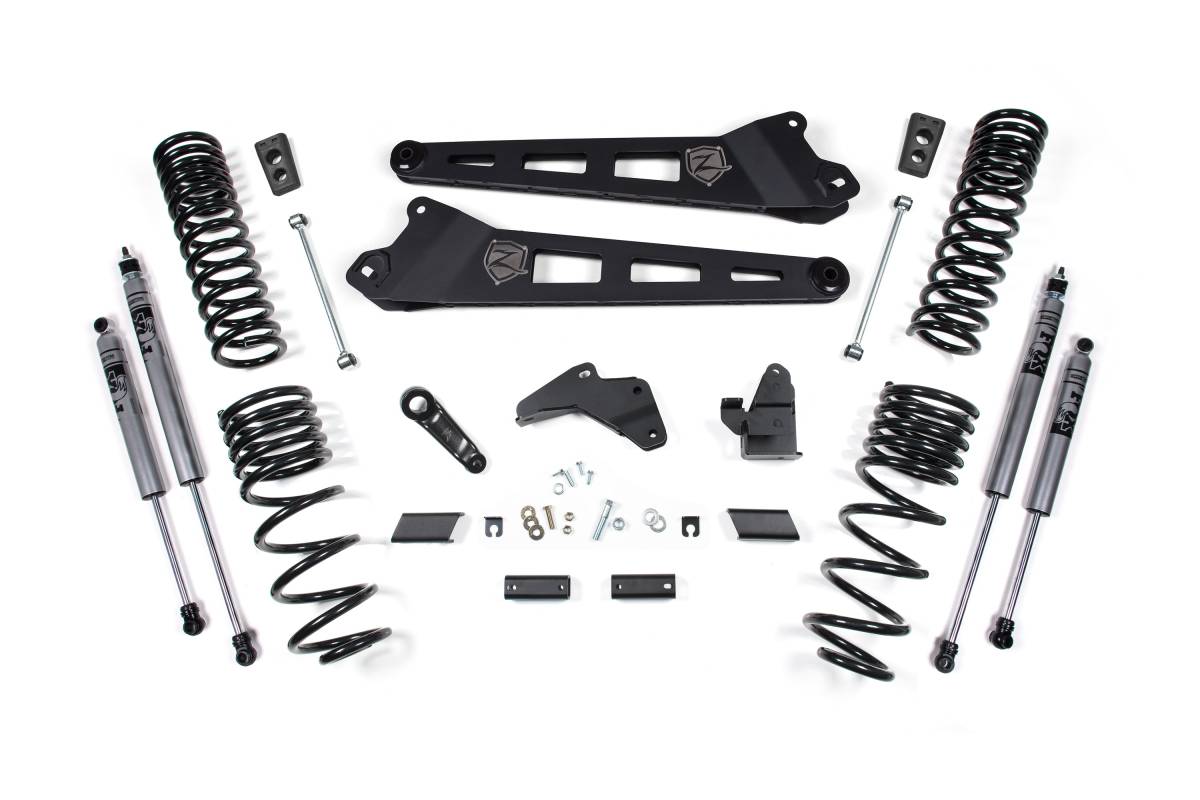

Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a black powder coat finish with a 2-inch diameter steel body.
Overview

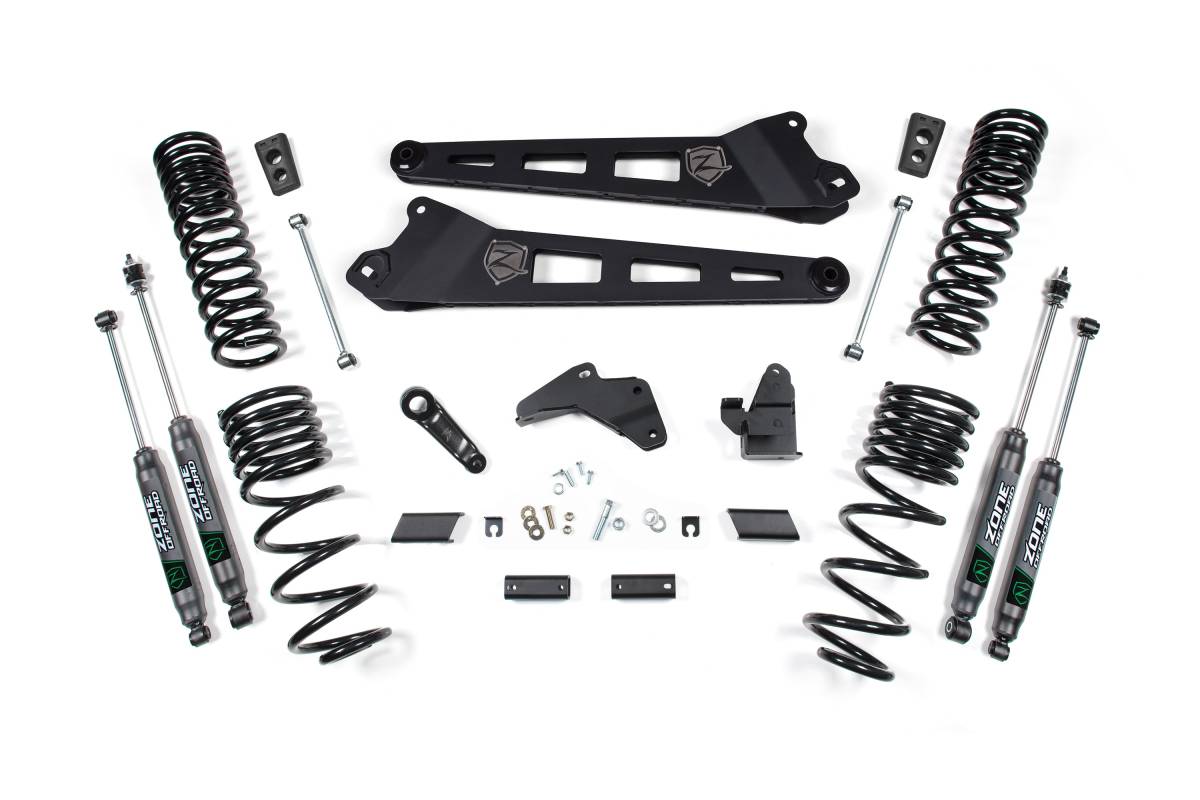

This 6.5" lift kit from Zone Offroad is designed for the Ram 2500 4WD (2014–2018) Diesel. The kit includes everything needed to lift and level the stance, from front and rear coil springs and heavy-duty radius arms to steering correction and rear lift components, providing clearance for up to 37" tires.
Features
- Progressive rate front and rear coil springs to improve ride quality and off-road performance while lifting and leveling the stance
- HD radius arm to correct caster while maximizing ground clearance
- Forged pitman arm and track bar relocation bracket to correct steering angles and recenter the front axle
- Extended bump stops, sway bar relocation, and brake line relocation to maintain factory-like operating angles
- Bump stop extensions, track bar bracket, and sway bar correction to restore proper suspension geometry
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 6.5"
- Rear Lift Method: Coil Spring
- Rear Lift Height: 4.5"
- Shocks Included: Yes
- Lift Height Range: 6–7.5"
Installation
- Estimated Installation Time: 6 hours
- Installation Difficulty: Moderate
Important Notes
- Fits trucks equipped with the 6.4L gas engines.
- Front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit.
- Does NOT work for models with factory rear airbag suspension.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- 6.4L Gas models will require exhaust modification to clear the front driveshaft.
- 5.7L Gas models may require modification.
- Factory wheels fit when paired with factory/original equipment tire size.
