6.5 Inch Lift Kit w/ Radius Arm | Ram 3500 4WD Diesel (2013-2018) | FOX 2.0 Adventure Series Shocks | Zone Offroad

Configured with FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, a 2-inch diameter black powder-coated steel body, and a 5/8-inch hard chrome-plated heat-treated alloy steel shaft for enhanced off-road performance and durability.

Overview

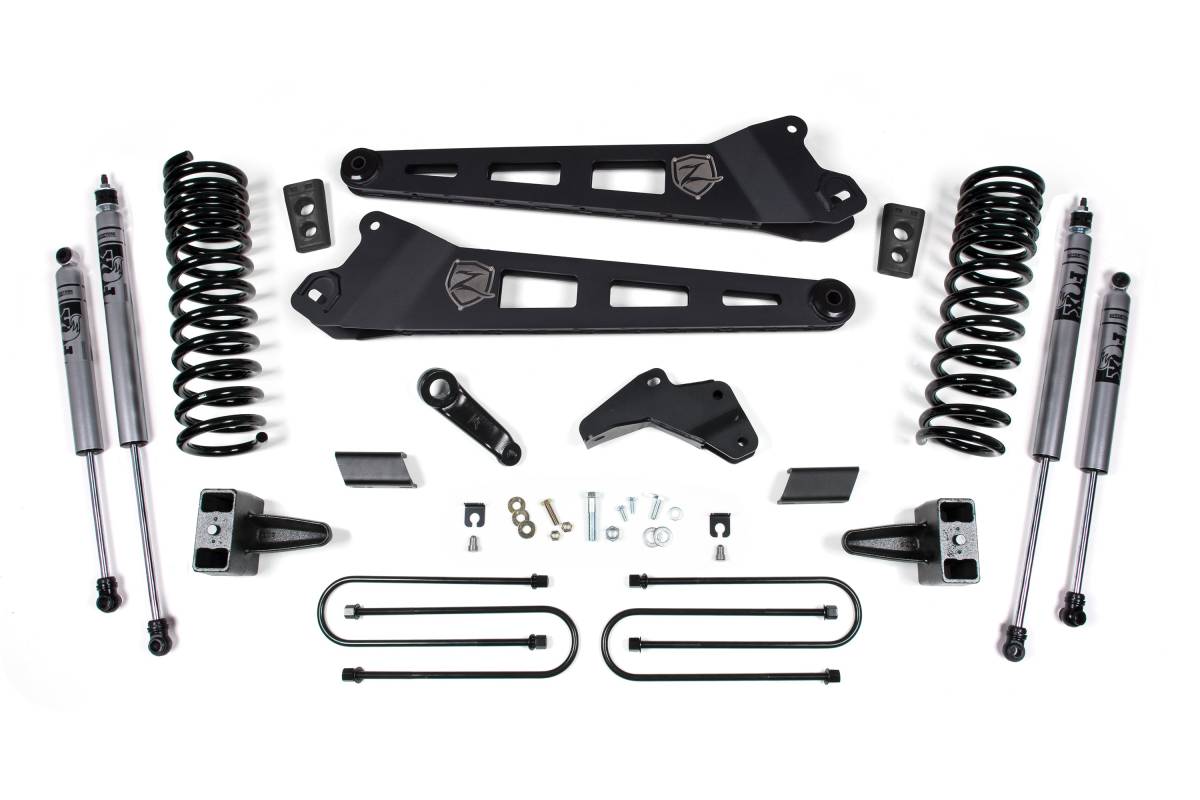

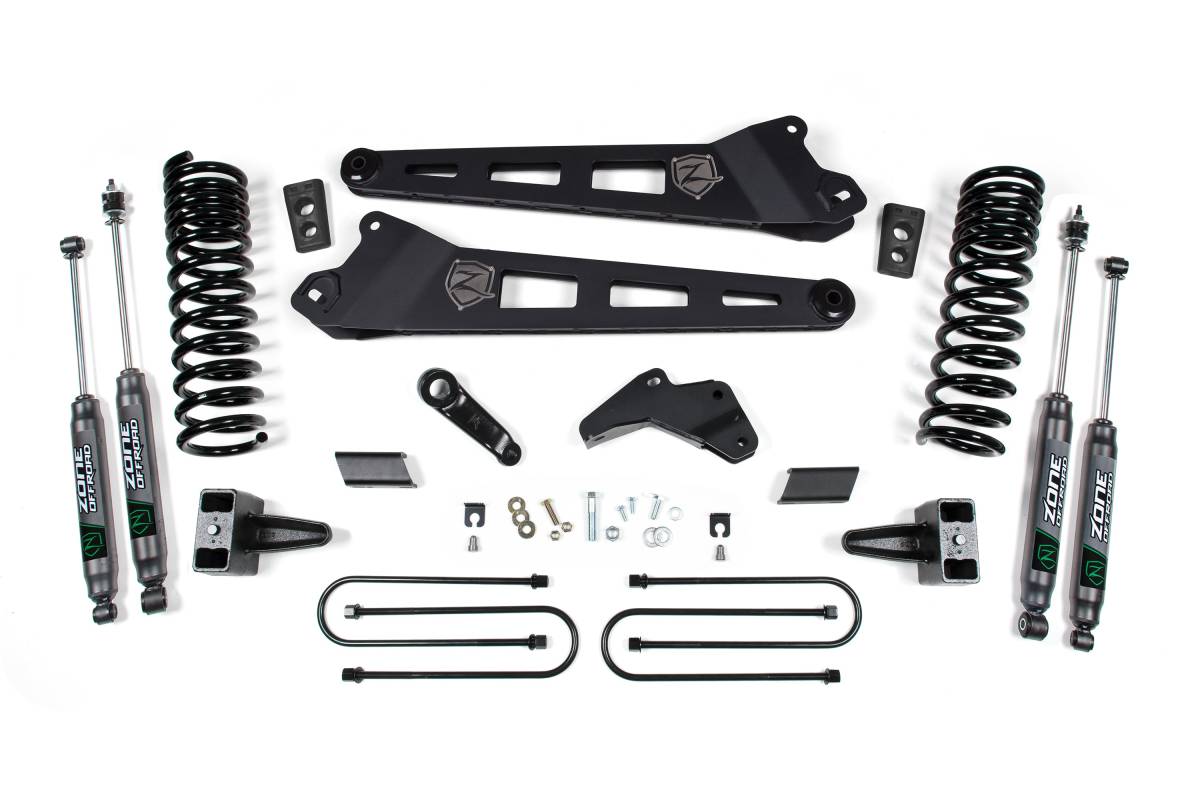

This 6.5-inch lift kit from Zone Offroad is designed for the 2013–2018 Ram 3500 4WD Diesel. The kit includes everything needed to lift and level your truck, from full-length coil springs and heavy-duty radius arms to steering correction hardware and rear lift components. It provides clearance for tires up to 37 inches.

Features

• Progressive rate front coil springs to improve ride quality and performance
• HD radius arm to correct caster while maximizing ground clearance
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter the front axle
• Extended bump stops, sway bar relocation, and brake line relocation to maintain factory-like operating angles
• Replacement rear lift blocks and U-bolts to lift and level the stance

Specifications

• Front Lift Method: Coil Spring & Drop Bracket
• Front Lift Height: 6.5"
• Rear Lift Method: Coil Spring
• Rear Lift Height: 5"
• Shocks Included: Yes
• Tire Clearance: Up to 37"

Installation

• Estimated Installation Time: 6 hours
• Installation Difficulty: Moderate

Important Notes

Front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6-bolt transfer case use part # D5623. Models with an 8-bolt transfer case use part # D5813. Does NOT work for models with factory rear airbag suspension. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration.
