Includes FOX 2.0 Adventure Series shocks featuring a nitrogen-charged twin-tube design with 10-stage velocity-sensitive valving, dual-welded ends, self-lubricating seals, and a 2-inch diameter steel body with black powder coat finish.
Overview

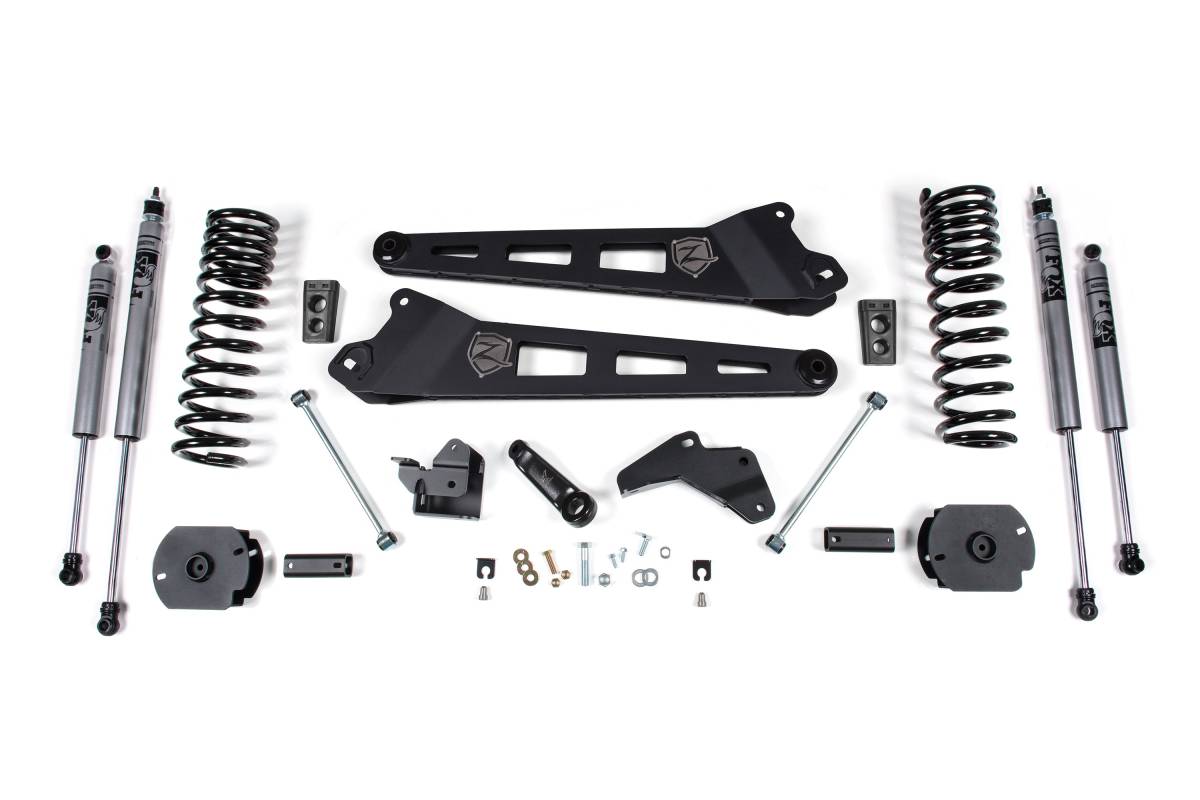

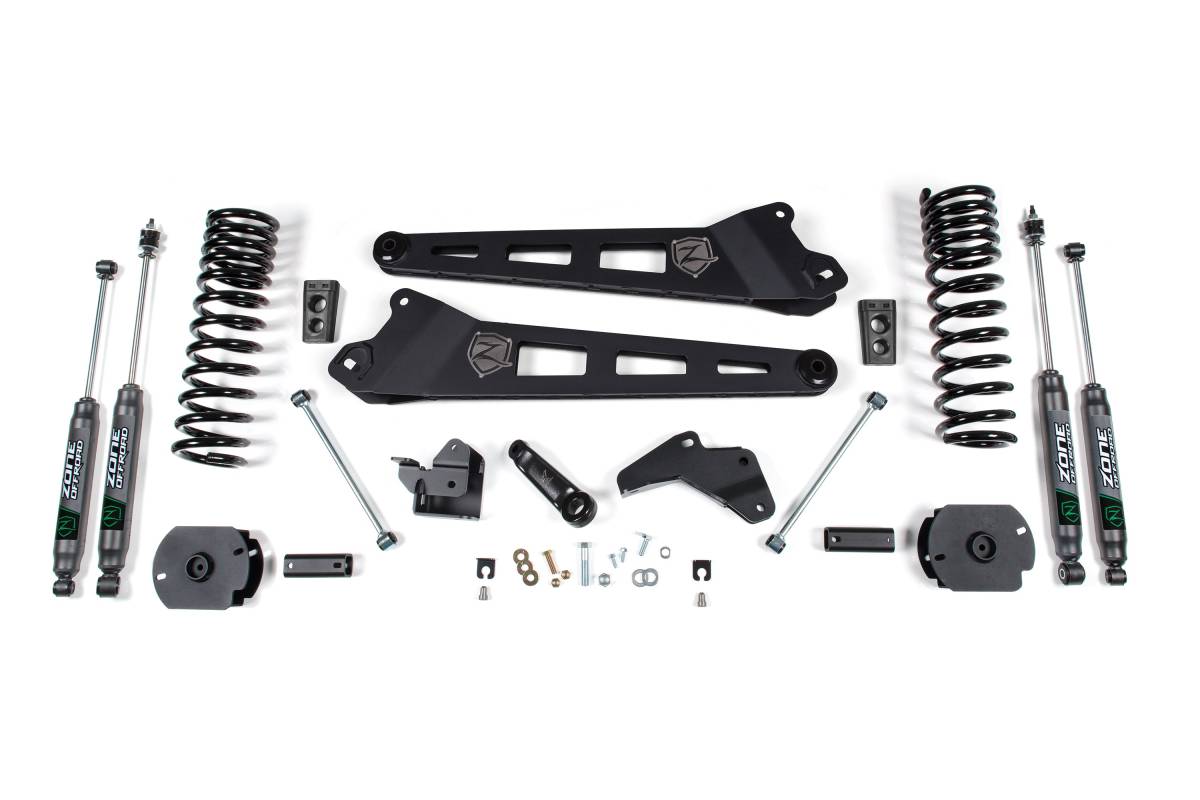

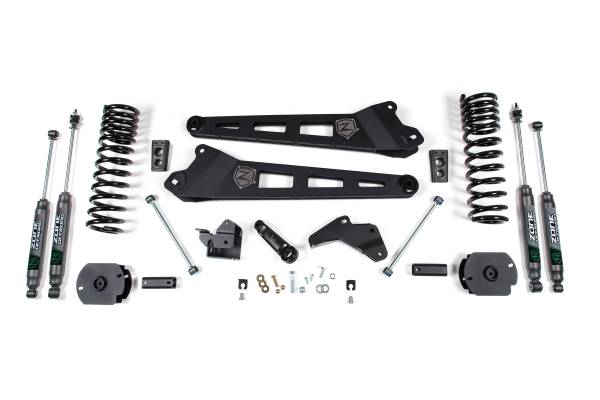

This 4.5-inch lift kit from Zone Offroad is designed for the Ram 2500 4WD Diesel (2014–2018). The kit includes everything needed to lift and level your truck, from full-length coil springs and heavy-duty radius arms to steering correction components and rear lift hardware. It provides clearance for tires up to 37 inches.
Features
- Progressive rate front coil springs improve ride quality and off-road performance
- HD radius arm corrects caster while maximizing ground clearance
- Forged pitman arm and track bar relocation bracket correct steering angles and recenter the front axle
- Extended bump stops, sway bar relocation, and brake line relocation maintain factory-like operating angles
- Rear coil spacers, bump stop extensions, track bar bracket, and sway bar links level the stance and correct suspension geometry
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 4.5 inches
- Rear Lift Method: Coil Spring
- Rear Lift Height: 2.5 inches
- Shocks Included: Yes
- Tire Clearance: Up to 37 inches
Installation
- Estimated Installation Time: 6 hours
- Installation Difficulty: Moderate
Important Notes
- Although very rare, front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit.
- Optional t-case indexing ring kit recommended to reduce front driveline angle.
- Does NOT work for models with factory rear airbag suspension.
- Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- Factory wheels fit when paired with factory/original equipment tire size.
