6.5 Inch Lift Kit | Ram 3500 4WD (2013-2018) | w/ Nitro Series Shocks | Zone Offroad

Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, nitrogen-charged construction, race-developed high-flow piston design, application-specific valving to maximize performance, and a long-lasting silver coated finish.

Overview

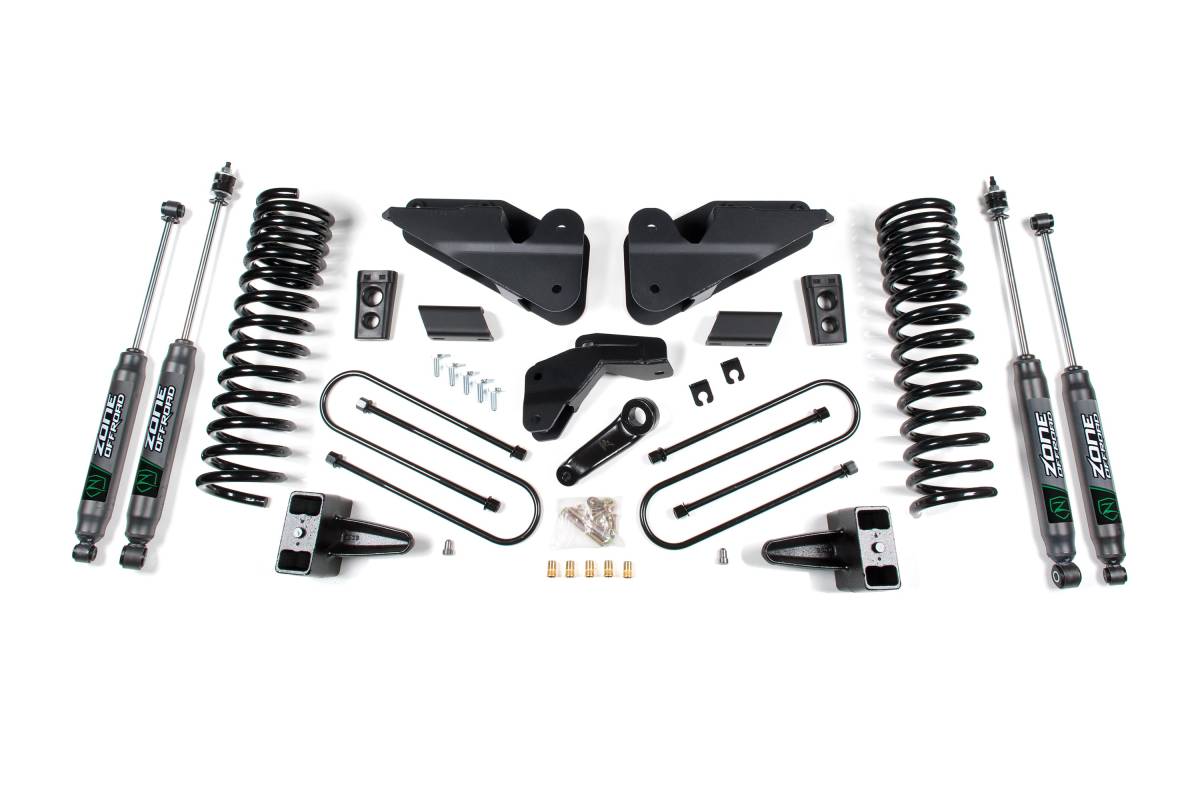

This 6.5-inch lift kit from Zone Offroad is designed for the 2013–2018 Ram 3500 4WD. The kit includes everything needed to lift and level your truck, from full-length coil springs and radius arm relocation brackets to steering correction components and rear lift blocks. Compatible with up to 37-inch tires.

Features

• Progressive rate front coil springs for improved ride quality and off-road performance
• Radius arm drop brackets to correct caster and improve suspension geometry
• Forged pitman arm and track bar relocation bracket to correct steering angles and recenter the front axle
• Extended bump stops, sway bar relocation, and brake line relocation to maintain factory-like operating angles
• Replacement rear lift blocks and u-bolts to lift and level the stance

Specifications

• Front Lift Method: Coil Spring & Drop Bracket
• Front Lift Height: 6.5"
• Rear Lift Method: Coil Spring
• Rear Lift Height: 5"
• Shocks Included: Yes
• Compatible Tire Size: Up to 37"

Installation

• Estimated Installation Time: 5 hours
• Installation Difficulty: Moderate

Important Notes

• Fits trucks equipped with the 6.4L gas engines.
• Front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6-bolt transfer case use part # D5623. Models with an 8-bolt transfer case use part # D5813.
• Does NOT work for models with factory rear airbag suspension.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
• 6.4L Gas models will require exhaust modification to clear the front driveshaft.
• 5.7L Gas models may require modification.
• Factory wheels fit when paired with factory/original equipment tire size.
