Configured with Nitro Series shocks featuring an internal floating piston (IFP) monotube design, a large 5/8-inch hard chrome plated heat-treated alloy steel shaft, race-developed high-flow piston design, application-specific valving, and a long-lasting silver coated finish.
Overview

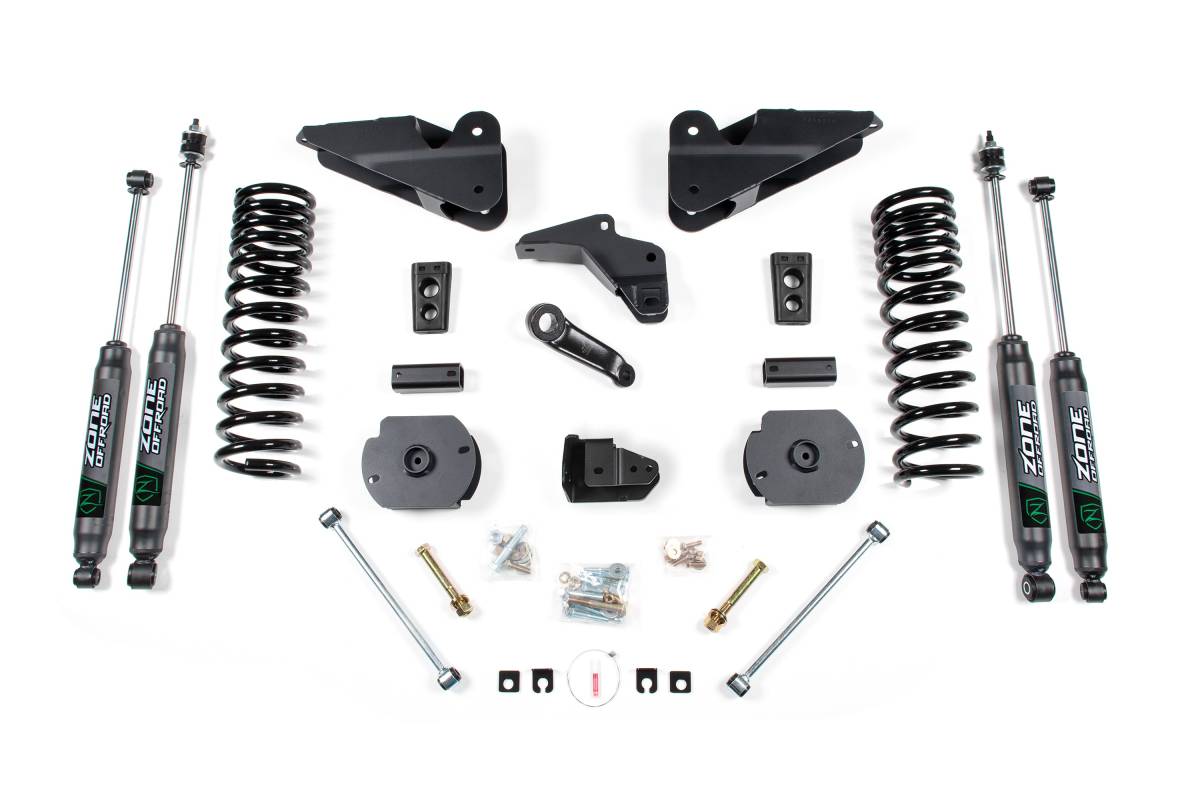

This 4.5" Lift Kit is designed for 2014–2018 Dodge/Ram 2500 4WD Diesel trucks, providing clearance for up to 37" tires while remaining suitable for daily driving use.
Features
- Corrects suspension, steering, and drive-line geometry for improved on-road handling and off-road performance
- Full-length replacement coil springs add ride height while maintaining ride quality
- High-strength control arm relocation brackets correct suspension geometry and add rigidity
- Shocks included
Specifications
- Front Lift Method: Coil Spring & Drop Bracket
- Front Lift Height: 4.5"
- Rear Lift Method: Coil Spacer
- Rear Lift Height: 2.5"
- Shocks Included: Yes
Installation
- Estimated Time: 5 hours
- Difficulty: Moderate
Important Notes
- Fits trucks equipped with the 6.4L gas engines.
- Will NOT fit Power Wagon Models.
- Front drive-line vibration may occur at speeds over 35 mph when in 4WD. If this occurs, install the appropriate optional t-case indexing kit. Models with a 6-bolt transfer case use part # D5623. Models with an 8-bolt transfer case use part # D5813.
- Does NOT work for models with factory rear airbag suspension.
- Two-piece rear drive shaft: Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid/eliminate driveshaft vibration.
- 6.4L Gas models will require exhaust modification to clear the front driveshaft.
- 5.7L Gas models may require modification.
- Factory wheels fit when paired with factory/original equipment tire size.
